Marine Cast Iron Air Vent Head JIS-KS91A-121(DN50-DN80)

Request a Quote Not what you need, please send your RFQs via Email.

Details

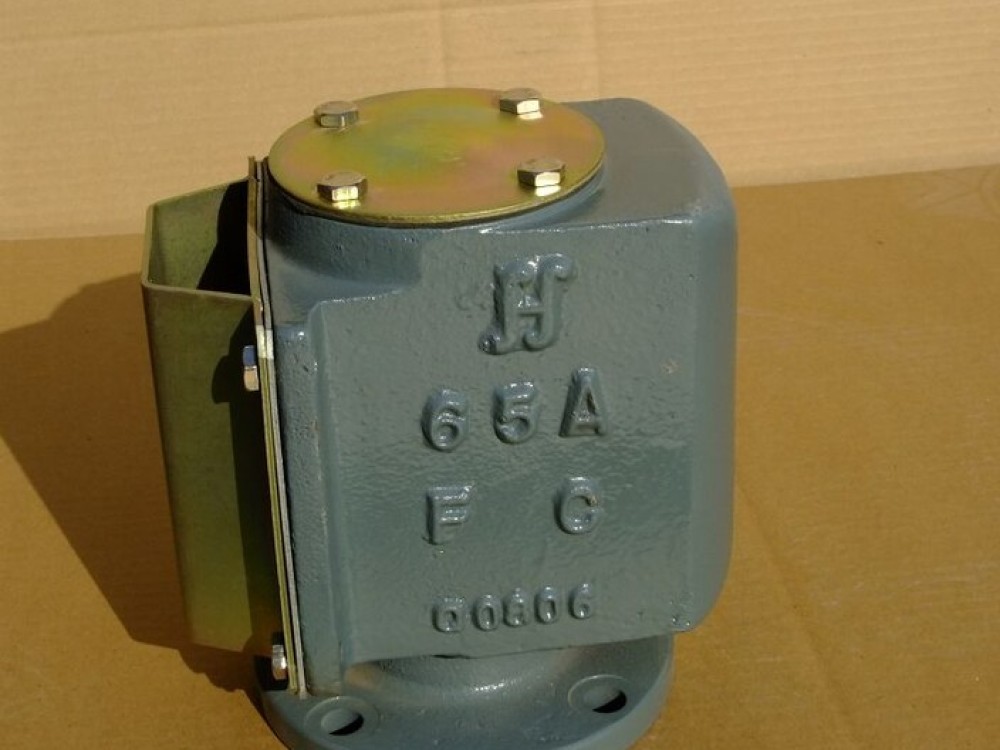

China Marine Cast Iron Air Vent Head JIS-KS91A-121(DN50-DN80):

Air Vent Head also can be called as air pipe head, is used for the ventilation of the oil tank or water tank on the vessel.

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 5K

* The flange size also can be manufactured according to 10K, 16K.

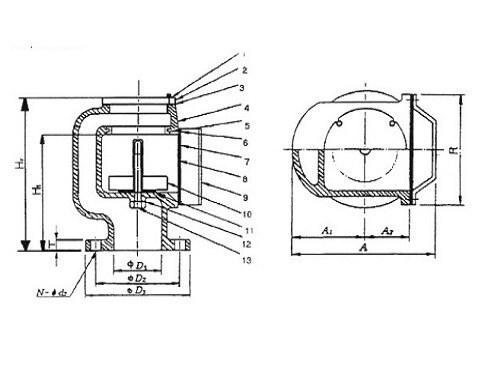

Main Material:

S/N Name Material S/N Name Material
1 Hex Bolt SUS304 8 Screen Cover SS400
2 Cover SS400 9 Float Disc SUS304
3 Packing NBR 10 Hex Bolt SUS304
4 Body FC200,FCD450 11 Packing NBR
5 Hex Bolt SUS304 12 Spring Washer SUS304
6 Rubber Ring NBR 13 Guide Bolt SUS304
7 Wire Screen SUS304


Marine Size List(mm):

Dimension (mm)
Weight (kgs)
DN D2 D3 HT H1 T N-d1 A A3 R
50 105 130 175 127 14 4-15 179 139 237 7.4
65 130 155 204 164 14 4-15 205 160 188 12.6
80 145 180 244 176 14 4-15 237 146 156 16
