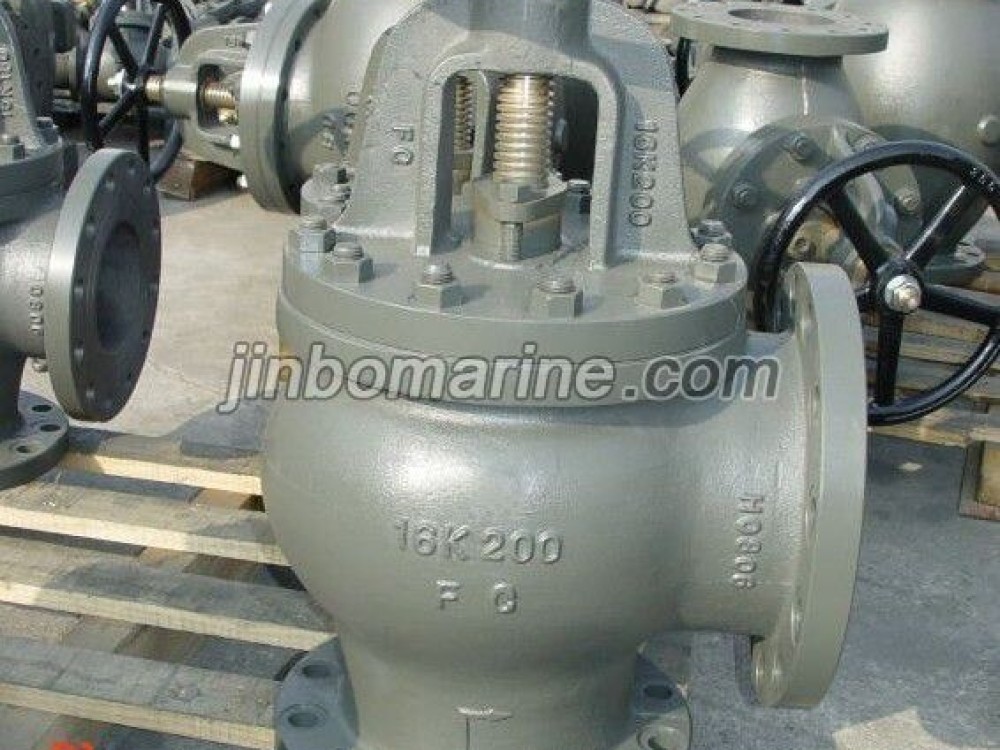

Marine Cast Iron Angle Valve JIS F7310 16K

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Cast Iron Angle Valve JIS F7310 16K:

It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7310-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

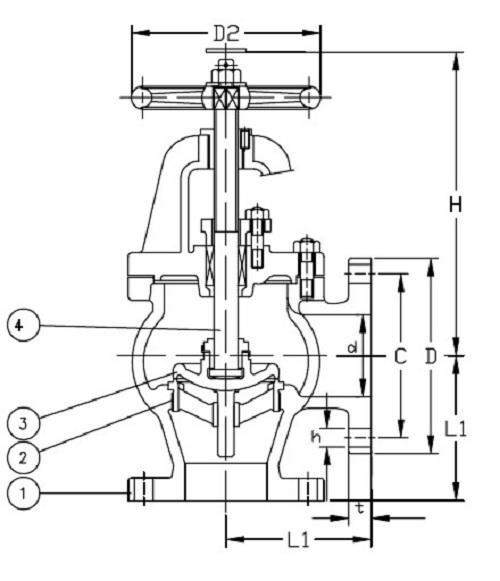

Main Size List(mm):

IMPA CODE DN L1 D C No of bolt hole h t H D2 Weight(kgs)
750271 50 120 155 120 8 19 20 255 160 18
750272 65 130 175 140 8 19 22 270 200 25
750273 80 150 200 160 8 23 24 295 224 35.7
750274 100 170 225 185 8 23 26 330 250 49.2
750275 125 200 270 225 8 25 26 390 315 76.1
750276 150 225 305 260 12 25 28 435 355 103
750277 200 250 350 305 12 25 30 540 450 155
