Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K

Request a Quote Not what you need, please send your RFQs via Email.

Details

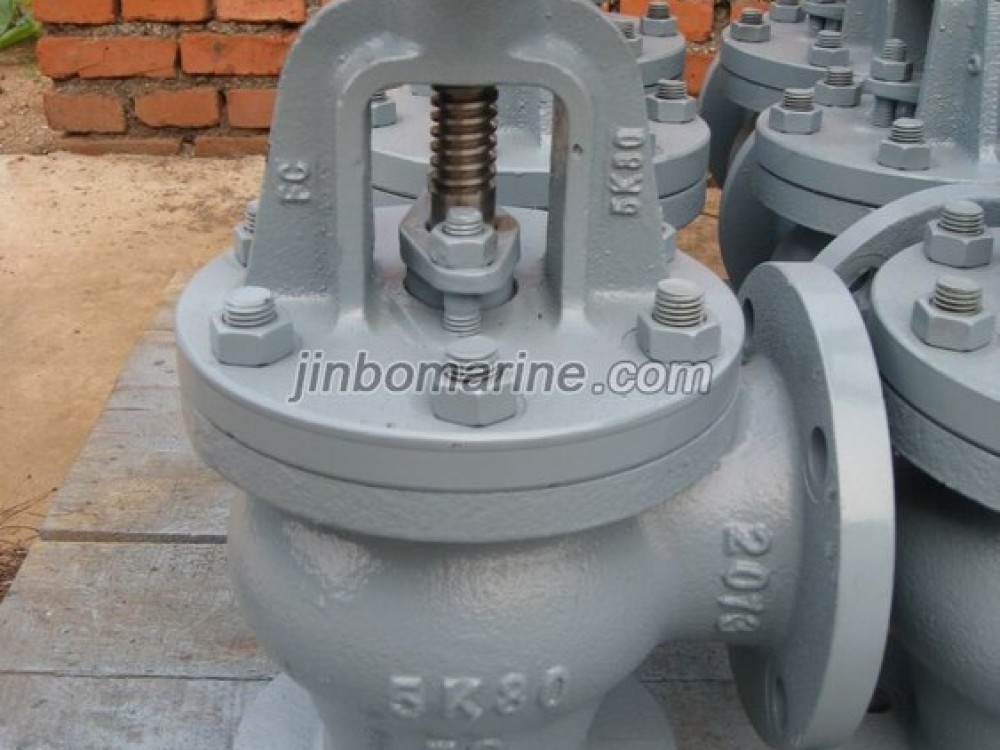

China Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K:

Marine Cast Iron Screw Down Check Angle Valve also can be called as Marine Cast Iron Angle SDNR Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7354-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel(2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

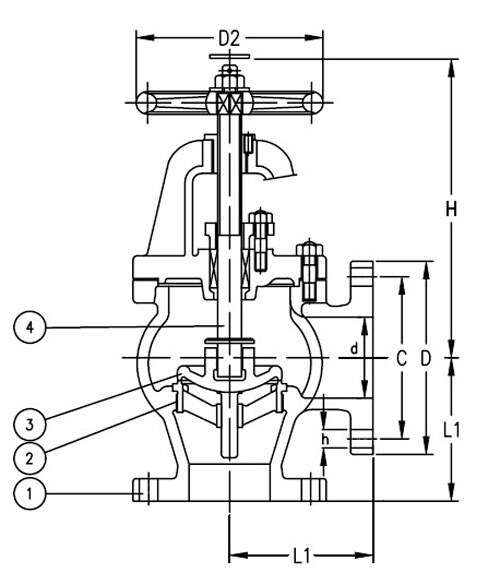

Main Size List(mm):

IMPA Code
Size L1 Flange diam. (D) Pitch (C) No of Bolt Hole h t D2 H Weight
751116 50 100 130 105 4 15 16 160 240 12.9
751117 65 115 155 130 4 15 18 180 255 18.2
751118 80 130 180 145 4 19 18 180 265 23.3
751119 100 150 200 165 8 19 20 224 310 33.5
751120 125 170 235 200 8 19 20 250 330 46.5
751121 150 190 265 230 8 19 22 280 380 64
751122 200 220 320 280 8 23 24 315 450 104
751123 250 275 385 345 12 23 26 355 540 175
751124 300 310 430 390 12 23 28 400 610 243
751125 350 360 480 435 12 25 30 500 690 336
751126 400 395 540 495 16 25 30 630 770 455
