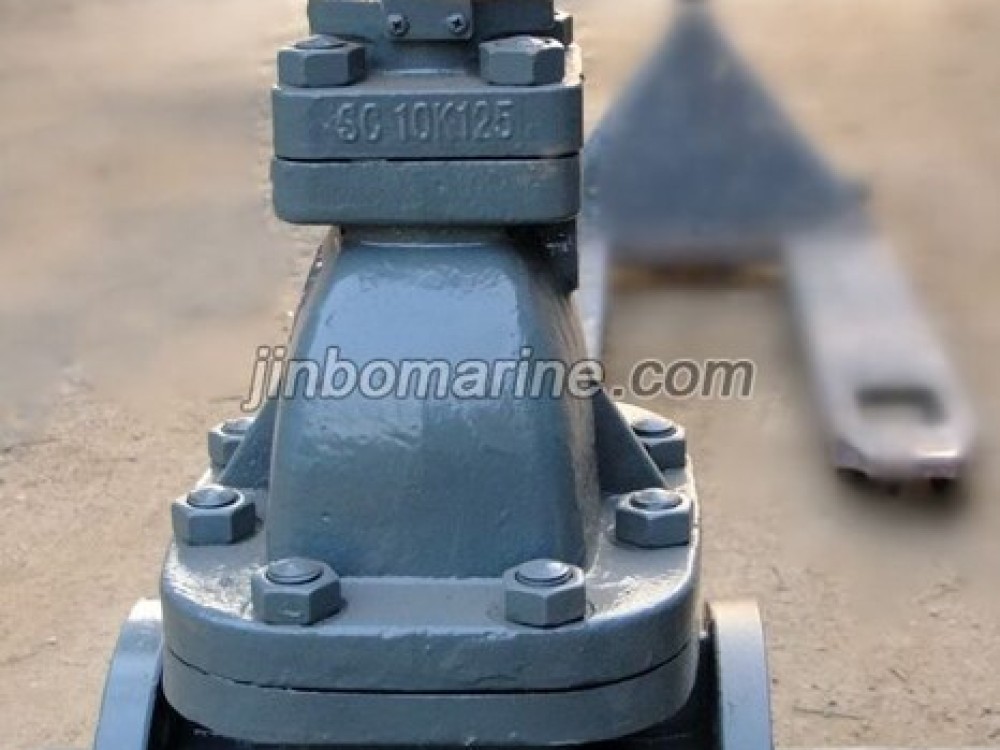

Marine Cast Steel Gate Valve JIS F7366 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Gate Valve JIS F7366 10K:

Marine Cast Steel Gate Valve is used to control the medium to open and close in the fuel oil, lubrication oil, steam, water pipe system with the temperature not over 300 degree centigrade.

Design Standard: JIS F7366-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 - 10K

Main Material:

Body: Cast Steel(SC450)

Bonnet:Cast Steel(SC450)

Seat: Bronze (BC6) or Stainless steel (2Cr13)

Disc:Bronze (BC6) or Stainless steel (2Cr13)

Stem: Brass (C3771BD) or SUS403

Gasket: non-asbestos

Packing Gland: Bronze (BC6) or Stainless steel (2Cr13)

Handwheel: FC200 (Cast Iron)

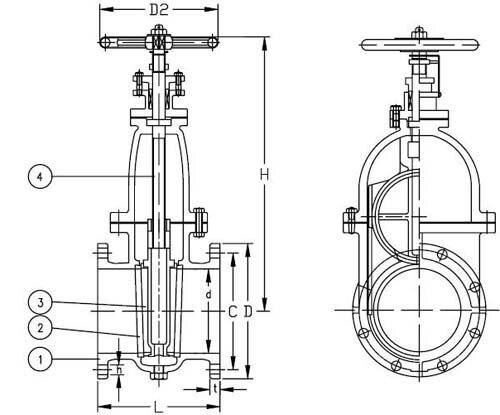

Main Size List(mm):

Size L Flange diam. (D) Pitch (C) No of Bolt Hole h t H D2
50 200 155 120 4 19 16 300 140
65 220 175 140 4 19 18 350 160
80 230 185 150 8 19 18 400 180
100 250 210 175 8 19 18 450 200
125 270 250 210 8 23 20 520 224
150 290 280 240 8 23 22 580 280
200 310 330 290 12 23 22 700 355
250 340 400 355 12 25 24 840 400
300 380 445 400 16 25 24 960 450
350 420 490 445 16 25 26 1050 500
400 480 560 510 16 27 28 1150 560
