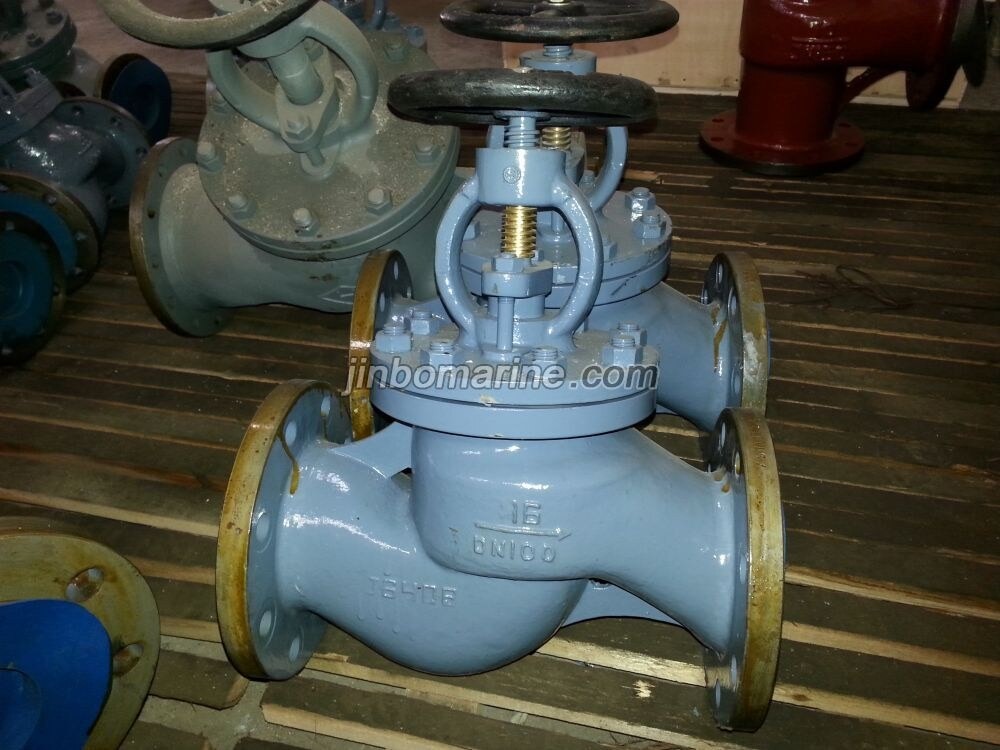

Marine Cast Steel Globe Valve GB/T584-2008 Type A/AS

  • Category:GB Marine Globe Valve
  • Material:Cast Steel
  • Standards:GB/T584-2008,CBM1048-81, CBM1051-81, CBM1057-81
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Globe Valve GB/T584-2008 Type A/AS:

Design Standard:GB/T584-2008, CBM1048-81, CBM1051-81, CBM1057-81

Test Standard: GB600

Flange size as per GB569,GB2501

*Marine Globe Valve also can be called Marine Stop Valve.

Nominal Pressure(Mpa) Nominal Diameter(mm) Applicable Medium
1.0 65~300 fresh water, lubrication oil, fuel oil, steam not over 300℃
1.6 65~250
2.5 20~150
4.0 65~100 fresh water, lubrication oil, fuel oil, steam not over 400℃
6.4 20~50

Main Material:

Body-Cast Steel

Bonnet-Cast Steel

Disc-Carbon Steel

Sealing Ring-Welded Stainless Steel

Stem-Stainless Steel

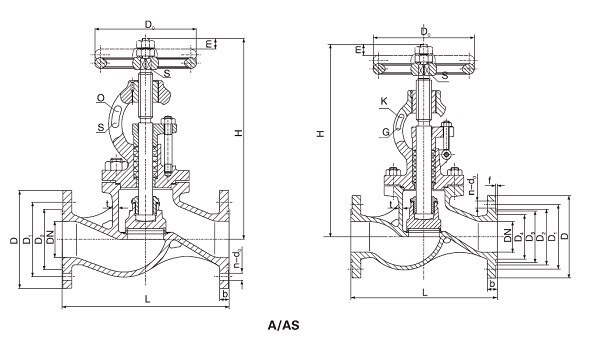

Main Size List(mm):
