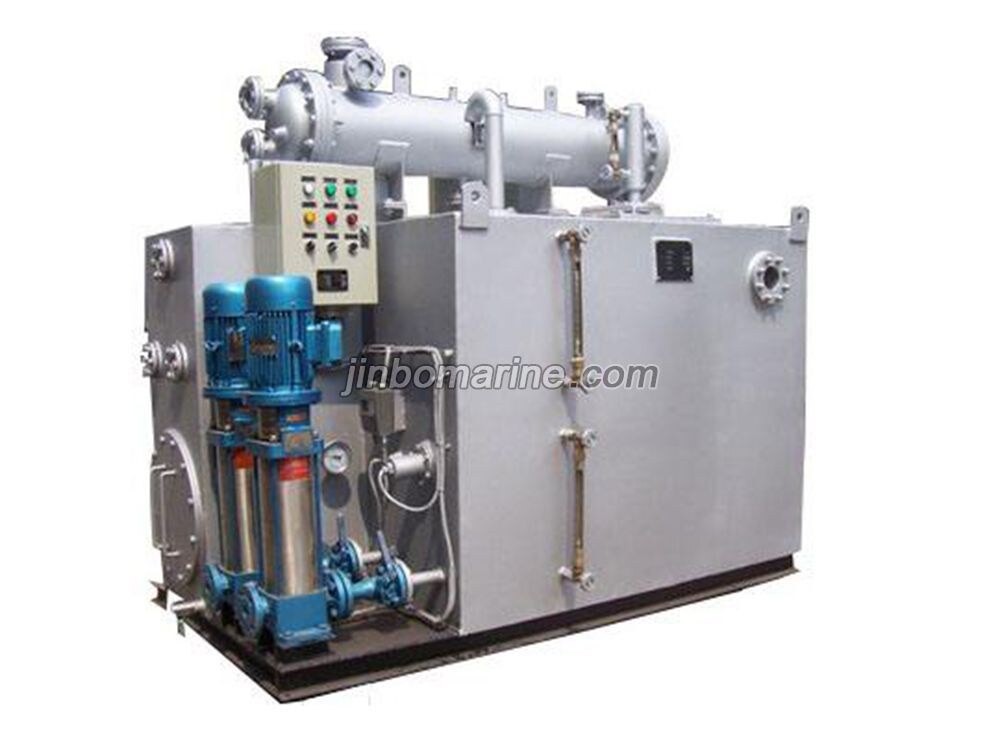

Marine Hot Well

  • Category:Hot Well
  • Material:Steel
  • Certificate:CCS, BV, ABS, GL,LR, NK
  • Packing Details:Wooden box
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Hot Well:

Hot Well is one of the most important parts of the combination systems of fuel-oil exhaust gas and boiler.

For more details, please contact us.

Technical Data:

No. Type Hot-well Capacity
m3)
Cooled Area
(m2)
Outline Dimension
L×B×H(mm)
1 ZHWU-0.3/2.0 0.25 1 1350×600×1050
2 ZHWU-0.5/3.0 0.5 2 1600×700×1250
3 ZHWU-0.75/5.0 0.75 3 1600×1000×1250
4 ZHWU-1.0/5.0 1 5 1700×1300×1450
5 ZHWU-1.0/8.0 1 8 1750×1300×1450
6 ZHWU-1.2/6.0 1.2 6 1800×1500×1650
7 ZHWU-1.2/8.0 1.2 8 1950×1500×1650
8 ZHWU-1.5/8.0 1.5 8 1950×1500×1950
9 ZHWU-1.5/10 1.5 10 1900×1500×1950
10 ZHWU-2.0/12 2 12 2000×1600×1950
11 ZHWU-2.0/15 2 15 2500×1600×1950
12 ZHWU-2.5/18 2.5 18 2500×1800×1950
13 ZHWU-2.5/20 2.5 20 2500×1800×1950
