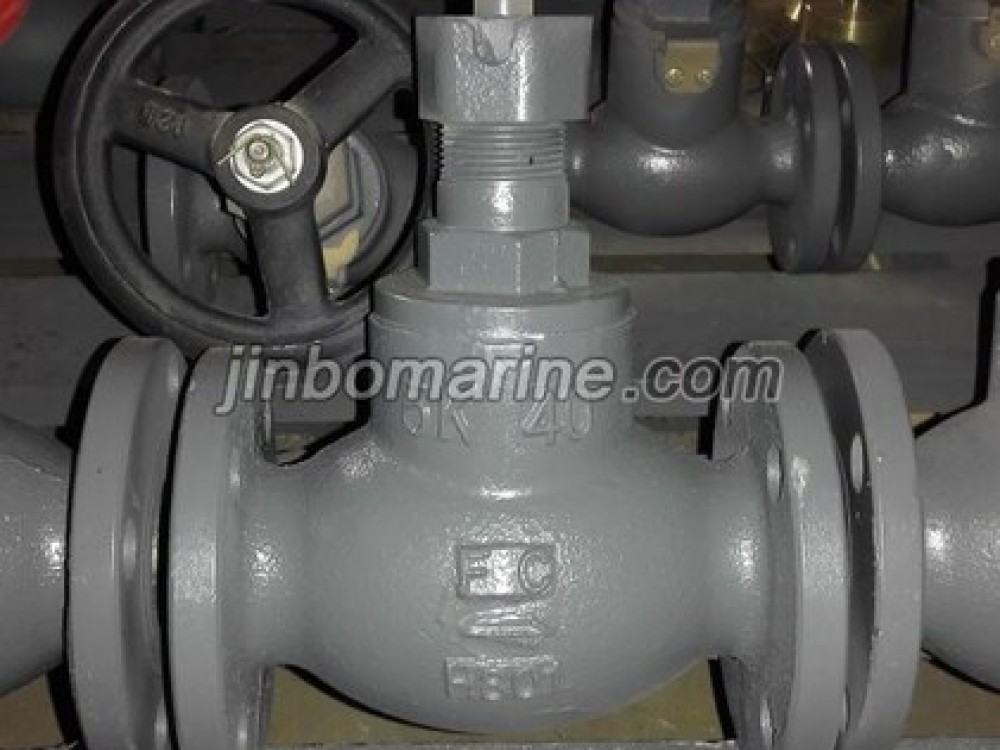

Marine Nodular Iron SDNR Valve JIS F7321C

Request a Quote Not what you need, please send your RFQs via Email.

Details

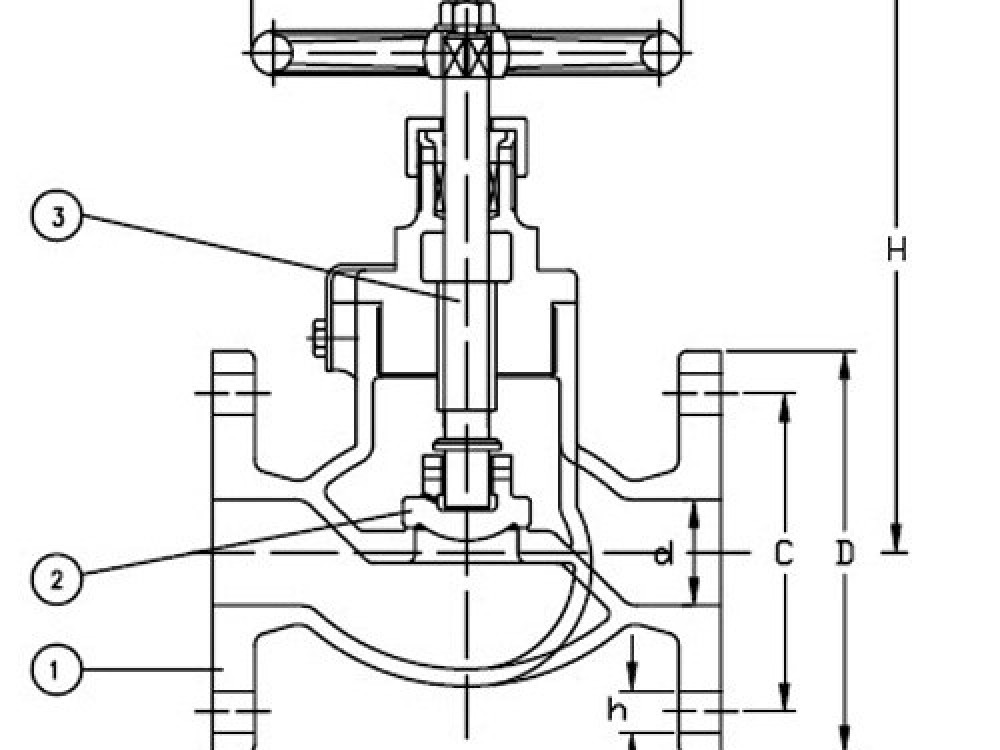

Marine Nodular Iron SDNR Valve JIS F7321C Drawing

Marine Nodular Iron SDNR Valve JIS F7321C Drawing

China Marine Nodular Iron SDNR Valve JIS F7321C:

Marine Nodular Iron SDNR Valve or Marine Ductile Iron SDNR Valve is from small size DN15~DN40.

Design Standard: JIS F7312C-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 -5K

*SDNR Valve means Screw Down Non Return Valve.

Material:

Body/Bonnet-Ductile Iron FCD450

Seat-SUS (SCS2) /Bronze (BC6)

Stem-SUS (SCS2) /Brass (C3771BD)

Main Size List (mm):

DN SIZE L C Hole Weight (kg)
5K15 100 80 4 X D12 1.98
5K20 110 85 4 X D12 2.80
5K25 120 95 4 X D12 4.18
5K32 140 115 4 X D15 5.53
5K40 160 120 4 X D15 7.08
