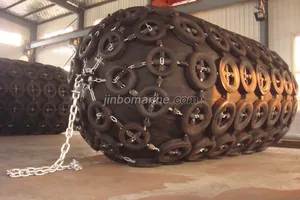

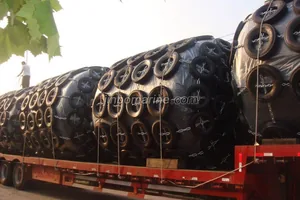

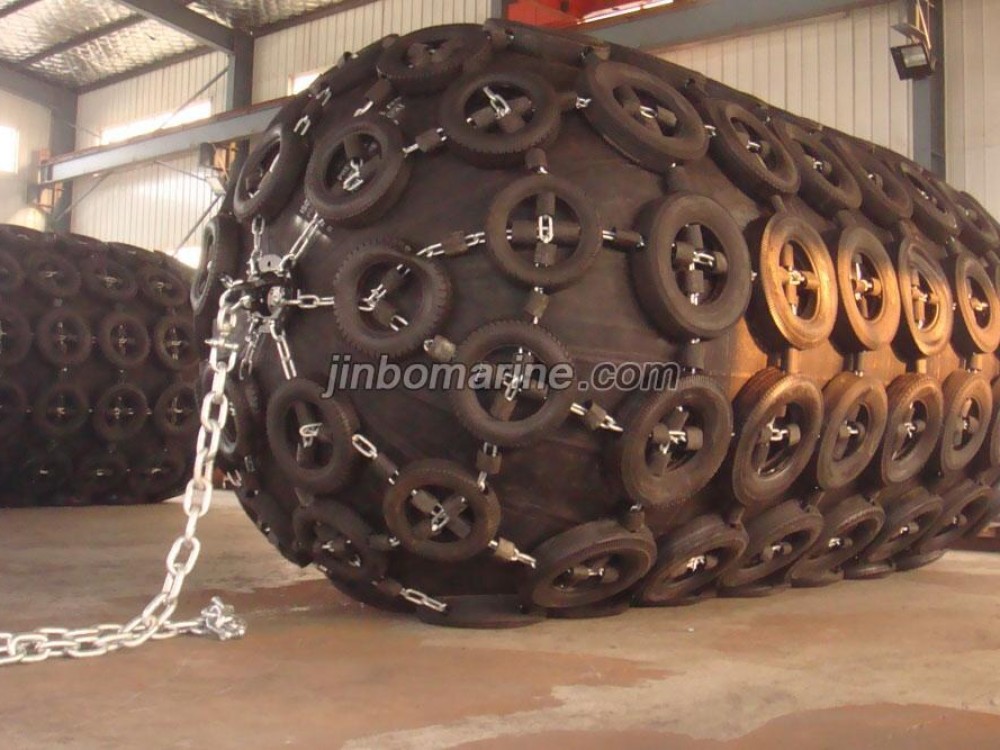

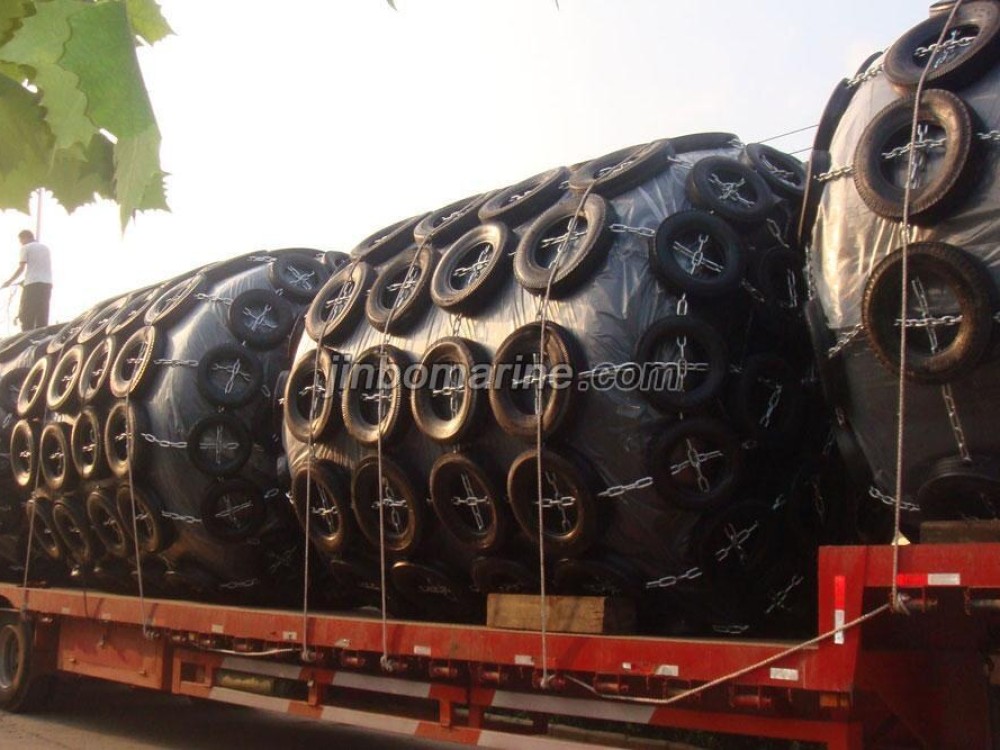

Marine Pneumatic Rubber Fender
- Category:Marine Fender
- Material:rubber
- Standards: ISO 17357-2002
- Certificate:CCS,ABS,DNV,BV,RINA,LR,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Marine Pneumatic Rubber Fender 1.pdf
Details
Product Specification
Marine pneumatic rubber fender can be provided in various sizes and types according to different customer demands.Filled with compressed air,pneumatic fender is an ideal ship protection medium for marine application.
Due to its superior performance, major industries such as oil, mineral ore, offshore construction and drilling, fishing and shipbuilding, as well as port authorities and navies all over the world adopt and support it. Widely used by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs. Tankers, Gas Carriers and Bulk Cargo Ships.
Remark
1.initial pressure:0.05MPa and 0.08MPa can be supplied.
2.other sizes besides the below also can be customized.
3.standard:conform to the latest ISO 17357-2002 directives
4.Accessories:any kind of chains, anchors and shackles can be supplied.
Structure Picture Of Marine Pneumatic Rubber Fender
Size Chart
| No. | Size | Initial pressure | Energy absorption | Reaction force |
| (Diameter x Length) | ||||
| mm x mm | MPa | KJ | KN | |
| 1 | 500 x 1000 | 0.05 | 6 | 64 |
| 2 | 600 x 1000 | 0.05 | 8 | 74 |
| 3 | 700 x 1500 | 0.05 | 17 | 137 |
| 4 | 1000 x 1500 | 0.05 | 32 | 182 |
| 5 | 1000 x 2000 | 0.05 | 45 | 257 |
| 6 | 1200 x 2000 | 0.05 | 63 | 297 |
| 7 | 1350 x 2500 | 0.05 | 102 | 427 |
| 8 | 1500 x 3000 | 0.05 | 153 | 579 |
| 9 | 1700 x 3000 | 0.05 | 191 | 639 |
| 10 | 2000 x 3500 | 0.05 | 308 | 875 |
| 11 | 2500 x 4000 | 0.05 | 663 | 1381 |
| 12 | 2500 x 5000 | 0.05 | 857 | 1835 |
| 13 | 2500 x 5500 | 0.05 | 943 | 2019 |
| 14 | 3000 x 5000 | 0.05 | 1050 | 2000 |
| 15 | 3000 x 6000 | 0.05 | 1312 | 2488 |
| 16 | 3300 x 4500 | 0.05 | 1175 | 1884 |
| 17 | 4500 x 9000 | 0.05 | 4752 | 5747 |
| 18 | 4500 x 12000 | 0.05 | 6473 | 7984 |
