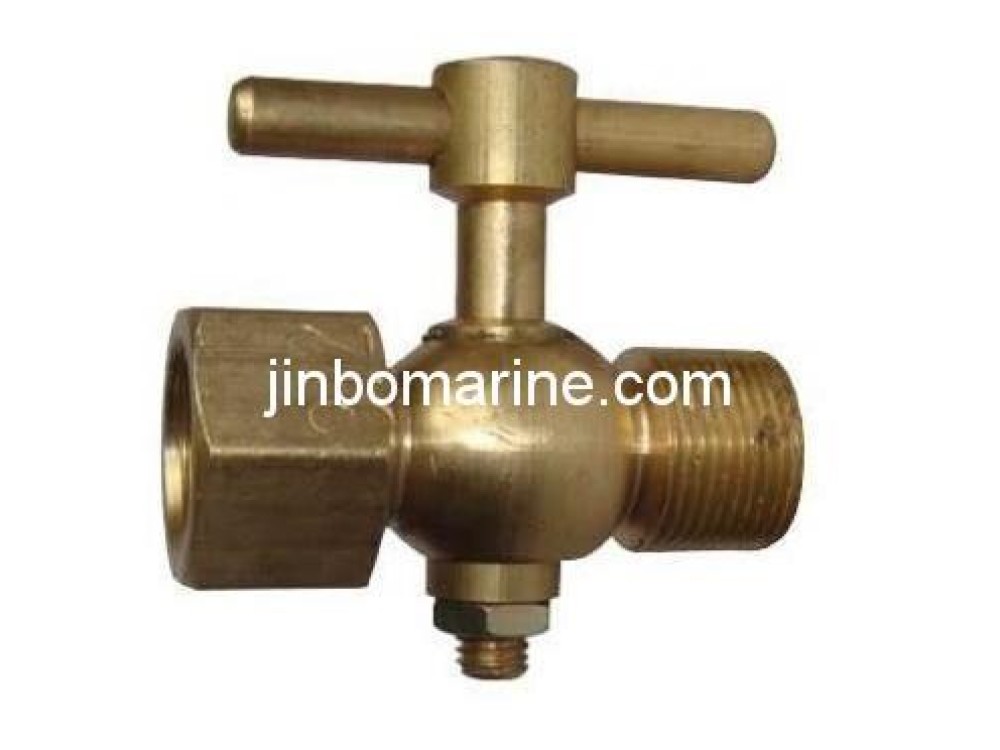

Marine Pressure Gauge Cock CB312-75 Type A

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Pressure Gauge Cock CB312-75 Type A:

Marine Pressure Gauge Cock is used with the pressure gauge together in the marine pipe system.

Design Standard: CB312-75

Thread Standard: CB56-83

Test Standard: GB600

Type Name Nominal Pressure(Kg/cm2) Nominal Size(mm) Applicable Medium
A Brass Pressure Gauge Cock 40 6 water,steam,fuel oil,lubricatoin oil & steam not over 250℃
B Bronze Pressure Gauge Valve 100
Stainless Steel Pressure Gauge Valve 160 fresh water,air,carbon dioxide,fuel oil,lubricatoin oil & steam not over 400℃

Main Parts & Material:

Body-Brass

Core-Bronze
