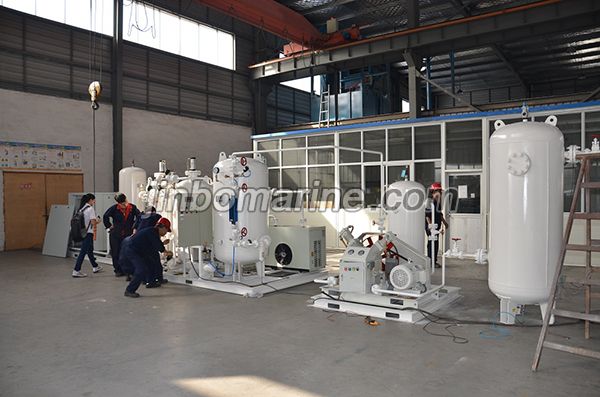

Marine PSA Nitrogen Generator Purity 99.9%

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine PSA Nitrogen Generator Purity 99.9%:

1. Nitrogen system takes natural air as the raw material and adopts the international leading energy-saving design technology to ensure that the highest nitrogen yield is obtained with the lowest raw air. The whole machine consumes less electricity and the cost of environmental protection is low.

2. Advanced absorber design, completely out of the traditional concept of "ratio" design, size and size based on the molecular structure of the air flow and characteristics of sieve absorber.

3. Unique design of air distributor, to prevent the short circuit of the air flow channeling, the airflow in the adsorption bed of the flow is more uniform, thereby improving the utilization of adsorbent.

4. Automatic pressing cylinder device and air inlet mode characteristic, make the airflow direction in the absorber is always the same, avoid the adsorbent fatigue in the frequent switching cycle of wear, effectively ensure the adsorbent for up to 10 years of life.

5.Unique adsorbent inertia force gradient, the loading density of adsorbent loading more tightly, prevent peristalsis and pulverization of adsorbent, the adsorption efficiency is better, to further ensure and lengthen the life span of the adsorbent.

6. Intelligent fully automatic control, simple operation, easy to open and stop, no need for special duty.

7. The high-purity nitrogen gas is prepared by one-step process. The high-purity nitrogen gas with purity of 99.9995% can be directly prepared without purification unit. The equipment has low operation cost, low investment and high performance price ratio.

Marine PSA Nitrogen Generator Purity 99.9% Main Specification

Model Output (m3/h) Gas consumption(m3/h) Air inlet(DN mm) N2 inlet(DN mm)
JBN5-39 5 23 15 15
JBN10-39 10 45 25 15
JBN20-39 20 90 25 15
JBN30-39 30 135 25 15
JBN40-39 40 180 25 20
JBN50-39 50 230 32 20
JBN60-39 60 270 32 25
JBN80-39 80 360 32 25
JBN100-39 100 450 40 25
JBN120-39 120 540 50 25
JBN150-39 150 690 50 32
JBN200-39 200 900 65 32
JBN250-39 250 1130 65 32
JBN300-39 300 1350 80 40
JBN400-39 400 1800 80 40
JBN500-39 500 2250 80 50
JBN600-39 600 2700 100 50
JBN800-39 800 3600 125 65
JBN1000-39 1000 4500 150 80
JBN1500-39 1500 6750 150 80
JBN2000-39 2000 9000 200 100
