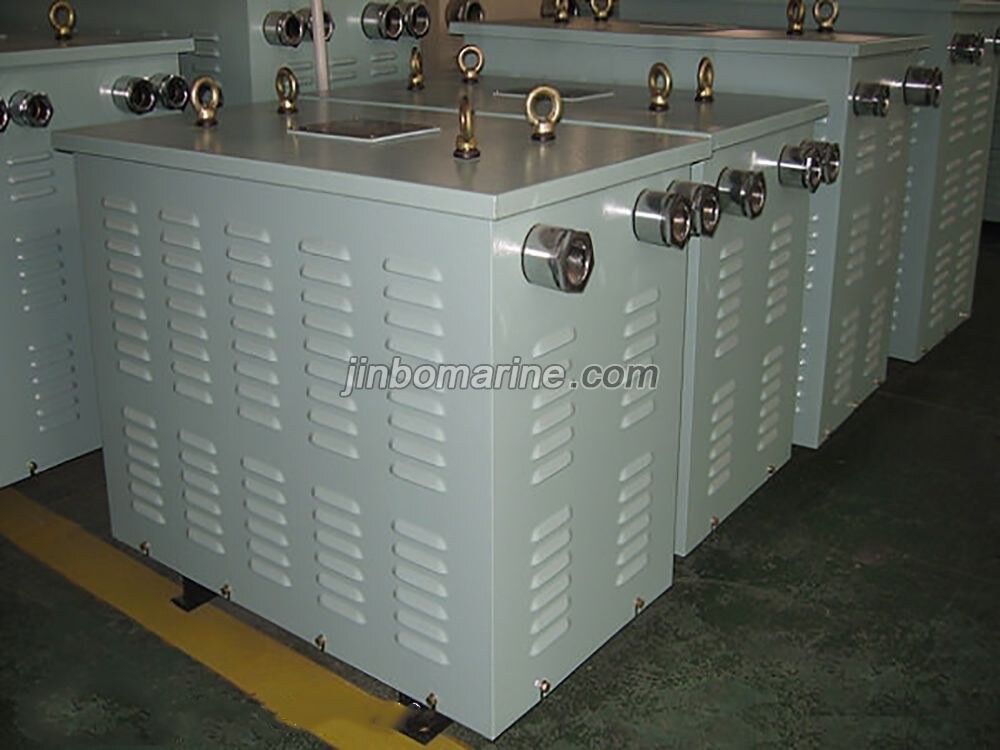

Marine Transformer CSD

This series of transformer can be used in the ship, Marine and other places of lighting, electricity, communications and power grid.

The normal working conditions and installation conditions

1. Height is not more than 2000 meters above sea level

2. The temperature of the air around:

Not more than + 40 degrees

24 hours on average value not more than +35

Lower limit of no less than -5 degrees

3. Air relative humidity is not greater than 90%

4. Environment air, does not contain a corrosive action on metals, and damage the insulation gas or dust

5. In use, to prevent the bump and vibration, to prevent the erosion of water, rain, snow

6. The power supply voltage waveform similar to sine wave

7. The swing Angle: 22.5 ° or less

8. Angle: 15 ° or less

This series of transformer core is heart type structure, with high quality cold rolling steel sheet pile into the system, the windings can be firmly fixed, and the seismic performance is strong. Coil is enameled wire winding and become, the insulation class is B. Transformer box made of high qualified steel plate, the structure not only fully consider the air circulation, and can effectively prevent water and prevent the rats and mice and other small animals into the box, box body protection grade for IP22.
