China Marine Transformer CSGD:

1. The core is made of high quality cold rolled silicon steel sheet carefully fold.

2. The winding by high strength wire, double glass silk covered wire or composite insulation wire winding and become, insulation class is B, F or class H.

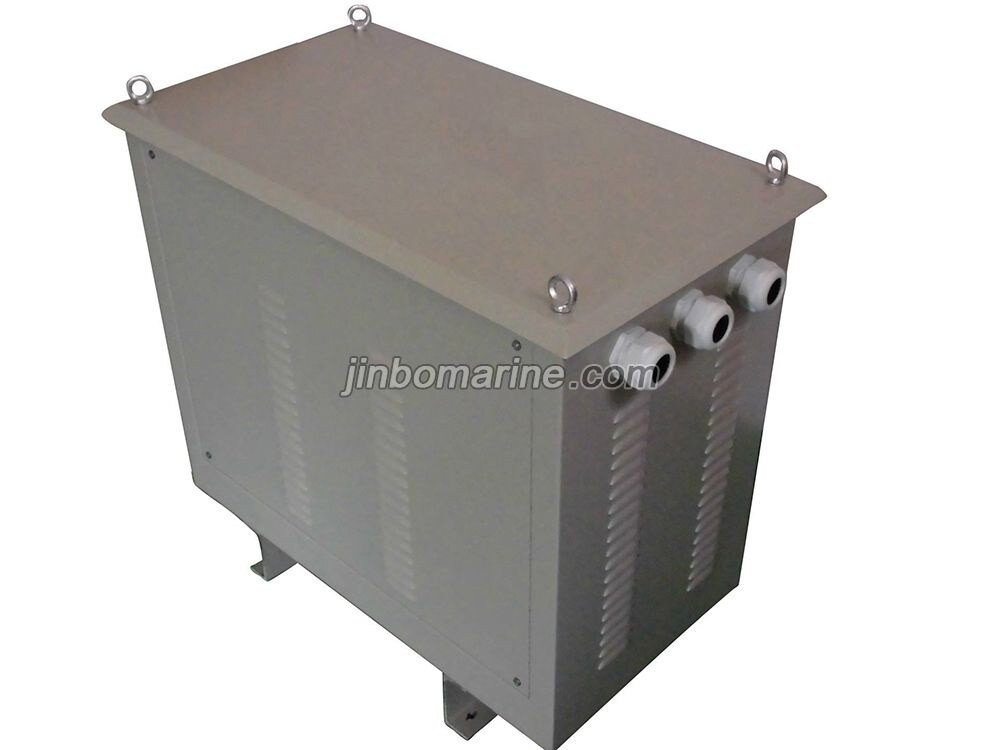

3. The transformer enclosure made of high qualified steel plate, the structure on both fully considering the air circulation, and can effectively prevent droplets and prevent rats into the internal.
4. The patch panel and switch terminal inside the transformer enclosure, can be easily through the introduction of cable box on the left or the right of the stuffing box received a patch panel.

Marine Transformer CSGD Technical Specifications

Input voltage 440V 440V 690V Frequency 50 HZ 60 HZ Link set label Y,yn0 D,yn11 Y,d11 D,y11
Output voltage 440V 230V Insulation level 5KV/min Insulation class B, F, H
Type Capacity (kVA) No-load loss (W) Load loss 115℃(W) No-load current (%) open-circuit impedance Overall dimensions (mm) Weight (KG) Installation dimensions(mm) a*b
CSD (CSGD) 3 80 115 14 3.5 400 260 380 50 180 200 14
5 95 175 12 3.5 450 300 420 57 200 210 14
7.5 130 250 11 3.5 490 360 460 73 230 270 14
10 160 305 10 3.5 490 360 520 87 230 270 14
16 200 395 9 3.5 560 380 560 125 280 290 14
20 210 510 7 3.5 620 400 570 157 320 310 14
25 230 560 6 3.5 600 430 590 183 300 340 14
30 240 640 4.5 3.5 600 430 590 189 300 340 14
35 250 680 4.5 3.5 690 460 590 235 360 370 14
40 260 725 4 3.5 730 450 600 254 380 360 14
50 275 1050 3.5 3.5 750 495 695 320 400 395 14
63 290 1325 3 3.5 800 495 700 335 430 390 14
80 380 1540 3 3.5 820 550 700 410 440 450 14
100 460 1950 2.5 3.5 900 560 860 540 480 460 14
125 560 2270 2.2 3.5 1000 600 860 610 520 500 18
160 640 2440 1.8 3.5 1000 600 880 660 520 490 18
200 760 2665 1.8 3.5 1010 610 980 840 540 490 18
250 820 2915 1.8 3.5 1025 650 1030 910 550 510 18
350 980 3930 1.5 4 1200 650 1150 1150 640 550 18
400 1120 4210 1.5 4 1300 450 1200 1200 660 550 18
500 1320 5155 1.5 4 1400 800 1250 1480 700 600 18
CSD CSCD CSCBD 630 1550 6205 1.5 6 1500 850 1300 1730 720 650 18
800 1800 6300 1.2 6 1600 900 1400 1990 750 700 18
1000 2050 8590 1.2 6 1700 950 1500 2350 800 700 18
1250 2350 10215 1 6 1800 1000 1600 2910 860 700 18
1600 2800 12410 1 6 1900 1100 1700 3180 940 800 18
2000 3800 15270 0.8 6 2000 1200 1800 4180 960 900 18
2500 4600 19135 0.8 6 2000 1300 1900 4900 1000 1000 18
