YBD Fuel Oil Vane Pump

  • Category:Marine Vane Pump
  • Material:cast iron
  • Standards:standard
  • Certificate:CCS
  • Packing Details:stand packing
  • Delivery Time:Stock available
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

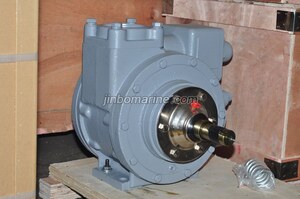

China YBD Fuel Oil Vane Pump:

YBD fuel oil vane pump

General descripation

YBD series fuel oil vane pump is the energy conversion device by convert the motor mechanical energy output to hydraulic energy.The pump's stator,rotor,vane and valve plate are screw fastened in a assembly.Easy assembly and maintenance,wih axial clearance compensation structure.using the Double-acting balanced structure and get the large and smooth discharging rate.Compact structure,small size,smooth discharging rate,small pressure fluctuation,low noise,high efficiency,Reliable performance,long life service,competitive price.

Technial parameter

Type Capacity Pressure inlet and outlet Motor

(m3/h) (Mpa) (DN65) speed(rpm) Model
YBD150 6 4 65 740 Y200L-8P-15KW
8 740 Y250S-8P-15KW
8 4 960 Y200L-6P-18.5KW
8 960 Y250M-6P-37KW
YBD200 6 4 65 740 Y225S-8P-18.5KW
8 740 Y280S-8P-37KW
8 4 960 Y200L-6P-22KW
8 960 Y280S-6P-45KW
