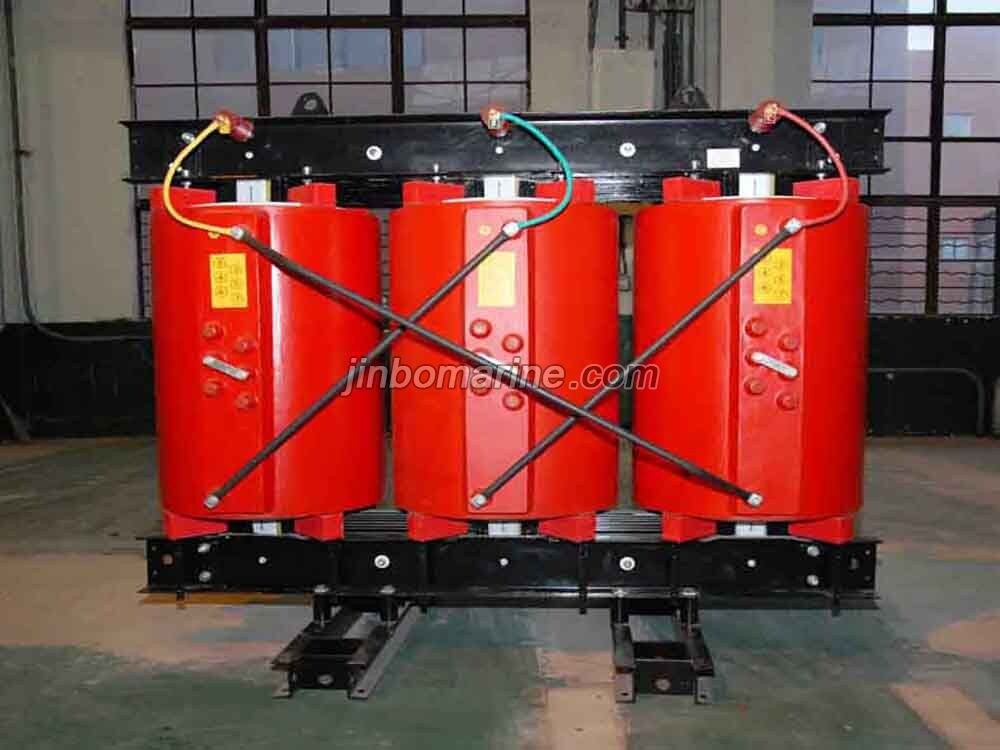

Offshore Transformer PSCD

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Offshore Transformer PSCD:

Offshore platform transformer is specially manufactured for offshore platform, for platform power, lighting, in order to adapt to the requirements of the platform environment. Protection grade is IP20 and IP23. Transformers are divided into two categories: one class of epoxy insulation dry-type transformers (F level), the other type of wire wound dry-type transformers (H level).

Offshore transformer characteristics

1. Three proofing, vibration resistance, environmental protection.

2. High protection grade, IP 44.

3. High insulation level, overload ability.

Product introduction

our company production of marine (Offshore) for dry transformer self cooling (air cooling) transformer, it can be used as the power grid for power, lighting, isolation equipment; insulation can be divided into B, F, H; marine low-voltage transformer capacity of 2000 KVA and below, the voltage level is under 1 KV. Marine pressure and offshore platform transformer capacity of 8000 KVA and below, voltage level of 10 KV or less.

Performance characteristics

1. Modular cabinet

The cabinet adopts the modular assembly and disassembly, convenient and quick installation.

2. Reduce noise

The bolt structure, noise reduction effect is obvious.

3. The special process

Using multiple varnished coil, electrical and mechanical connection using a special process, strengthen the "three anti" performance

4.45 ° cold-rolled silicon steel sheet
Core material is made of high quality cold-rolled steel, 45 ° inclined carefully from superimposed.

5. Stuffing box

The box body of the transformer is provided with a stuffing box for cable access. The stuffing in the left or right. Capacity 500 KVA and above the transformer in and out of the way generally into the lower, the transformer base on the opening of the cable hole, and by the cable scratch and fixed cable device.

Offshore Transformer PSCD Technical Specifications

Type Capacity Connection group label No-load loss The load loss No-load current Short circuit impedance IP00
(W) (W) (%) (%) Weight
(Kg)
PSCD10-30 30 Dyn11 Yyn0 190 615 3.2 4 510
PSCD10-50 50 270 870 2.8 4 580
PSCD10-80 80 370 1205 2.6 4 690
PSCD10-100 100 400 1370 2.4 4 740
PSCD10-125 125 470 1610 2.2 4 870
PSCD10-160 160 540 1860 2.2 4 1040
PSCD10-200 200 620 2205 2 4 1315
PSCD10-250 250 720 2400 2 4 1425
PSCD10-315 315 880 3030 1.8 4 1600
PSCD10-400 400 980 3485 1.8 4 1910
PSCD10-500 500 1160 4250 1.8 4 2250
PSCD10-630 630 1300 5205 1.6 6 2660
PSCD10-800 800 1520 6070 1.6 6 3000
PSCD10-1000 1000 1770 7100 1.4 6 3520
PSCD10-1250 1250 2090 8460 1.4 6 4380
PSCD10-1600 1600 2450 10245 1.4 6 5650
PSCD10-2000 2000 3050 12620 1.2 6 6090
PSCD10-2500 2500 3600 14995 1.2 6 7250

Type Capacity Connection group label No-load loss The load loss No-load current Short circuit impedance IP20
Weight
(kvA) (W) (W) (%) (%)
(Kg)
PSCD10-30 30 Dyn11 Yyn0 190 615 3.2 4 580
PSCD10-50 50 270 870 2.8 4 650
PSCD10-80 80 370 1205 2.6 4 760
PSCD10-100 100 400 1370 2.4 4 810
PSCD10-125 125 470 1610 2.2 4 960
PSCD10-160 160 540 1860 2.2 4 1130
PSCD10-200 200 620 2205 2 4 1405
PSCD10-250 250 720 2400 2 4 1515
PSCD10-315 315 880 3030 1.8 4 1700
PSCD10-400 400 980 3485 1.8 4 2010
PSCD10-500 500 1160 4250 1.8 4 2360
PSCD10-630 630 1300 5205 1.6 6 2770
PSCD10-800 800 1520 6070 1.6 6 3120
PSCD10-1000 1000 1770 7100 1.4 6 3720
PSCD10-1250 1250 2090 8460 1.4 6 4600
PSCD10-1600 1600 2450 10245 1.4 6 5900
PSCD10-2000 2000 3050 12620 1.2 6 6400
PSCD10-2500 2500 3600 14995 1.2 6 7650
