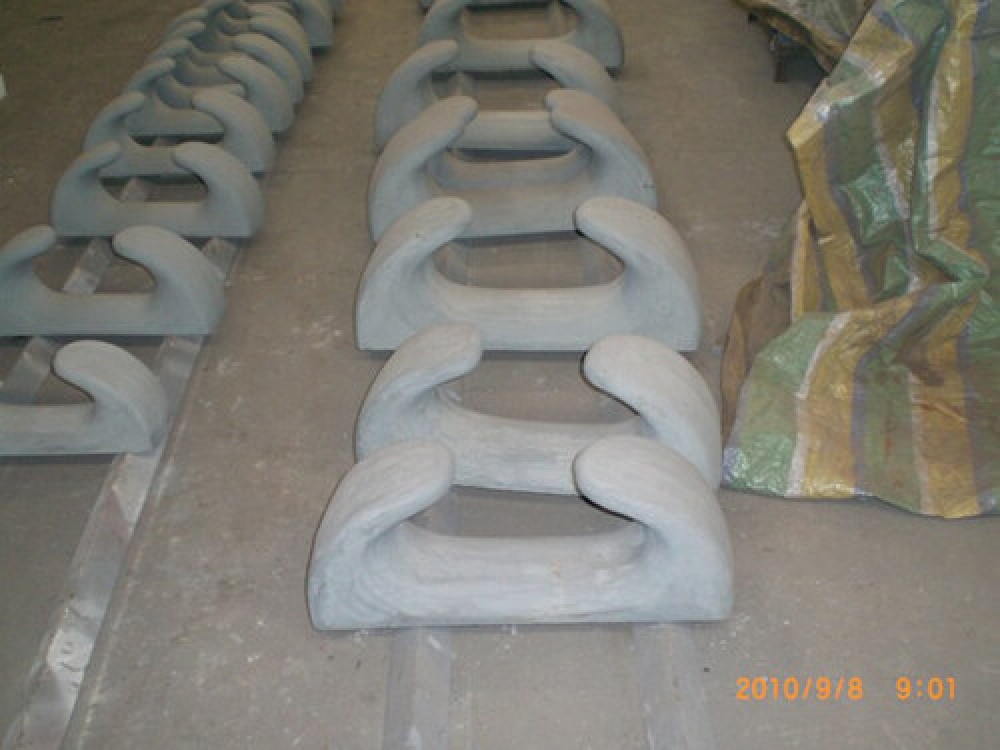

Open Chock JIS F-2006 Type FC
- Category:Marine Chock
- Material:cast steel,cast iron
- Standards:JIS-F-2006
- Certificate:mill certificate,CCS,ABS,BV etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Feature:
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Good after-sale service
4. CB34-76 Type A,Type B,Type C and Type D available.
5.surface in contact with the rope in use been finished smoothly.
We designs and manufactures panama chocks in a wide variety of sizes and styles.
Our panama chocks and other deck fittings are used by military and industrial ships, operating effectively throughout the world.
|

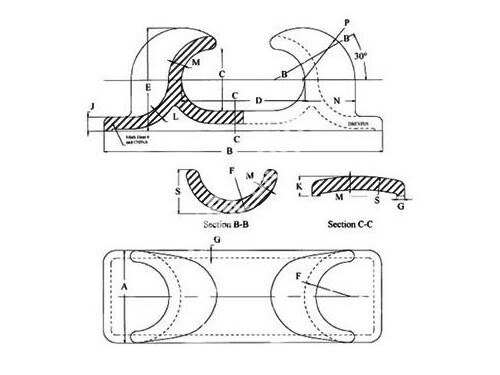

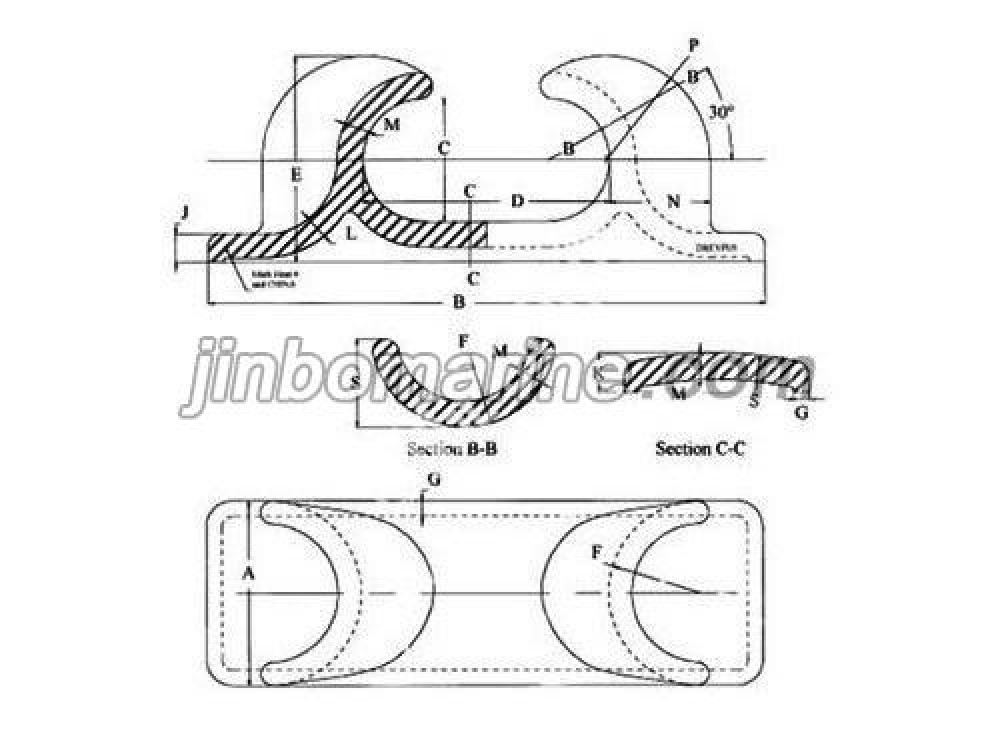

Open Chock JIS F-2006 Type FC |
||||||||||||||
|
Product No. |
Size |
B |
C |
D |
E |
F |
G |
J |
K |
L |
M |
N |
P |
S |
|
A(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
|
|
OCJ-001 |
9" |
27-3/4" |
6 |
12 |
10-1/8" |
4-1/2" |
7/8" |
1-1/2“ |
2-1/16" |
1-1/8" |
1-3/8" |
4-7/8" |
5-1/16" |
4-1/4" |
|
OCJ-002 |
10" |
30-3/8" |
6-5/8" |
13-1/4" |
11-1/8" |
5 |
1 |
1-9/16" |
2-3/16" |
1-1/4" |
1-1/2" |
5-7/16" |
5-3/8" |
4-3/4" |
|
OCJ-003 |
12" |
36 |
8 |
16 |
13-3/8" |
6 |
1-1/4" |
1-7/8" |
2-5/8" |
1-1/2" |
1-3/4" |
6-1/2" |
6-3/4" |
5-3/4" |
|
OCJ-004 |
14" |
42 |
9-3/8" |
18-3/4" |
15-5/8" |
7 |
1-1/4" |
2-3/16" |
3-1/16” |
1-3/4" |
2 |
7-5/8“ |
7-7/8” |
6-11/16“ |
|
OCJ-005 |
16" |
48 |
10-3/4" |
21-1/2" |
17-3/4" |
8 |
1-3/8" |
1-3/8" |
3-3/8“ |
2 |
2-1/4" |
8-5/8“ |
9 |
7-3/4" |
|
OCJ-006 |
18" |
54 |
12 |
24 |
20 |
9 |
1-1/2" |
1-1/2“ |
3-7/8” |
2-1/4" |
2-1/2" |
9-3/4“ |
10-1/8" |
8-5/8" |
Also we can supply other kinds of Chocks as below.
Deck mounted Panama chock JIS F2017-1982 type AC
Bulwark mounted Panama Chock JIS F2017-1982 Type BC
Deck Mounted Closed Chock JIS F2005-1975
Bulwark mounted mooring chock JIS F 2007-1976 type A
Bulwark Mounted Chock DIN81915-1998 Type A
Bulwark Mounted Chock DIN81915-1998 Type B
Deck mounted Chock DIN81915-1998 type C
Deck mounted Chock DIN81915-1998 type D
Deck mounted Chock DIN81915-1998 type E
Deck Mounted Chock EU Type
Bulwark Mounted Chock EU Type
Single Point Mooring Pipe JIS F 2030-1978 type A
Single Point Mooring Pipe JIS F 2030-1978 type B
Deck mounted chock type A NS2587
Deck mounted chock type B NS2587
Deck mounted chock type A NS2588
Deck mounted chock type B NS2588
Deck mounted chock type A NS2589
Deck mounted chock type B NS2589
Deck mounted chock type A NS2590
Deck mounted chock type B NS2590
Mooring chock CB34 -76 TYPE A
Mooring chock CB34 -76 TYPE C
Open chock JISF 2006 TYPE FC
