P1 RFOU/TFOU 0.6/1KV Halogen-free Power Cable (NEK606)

  • Category:NEK606 Cable
  • Material:Tinned Copper/EPR insulation/SHF 1 sheath/Tinned Copper Wire Braided/SHF2 Sheath or SHF MUD
  • Standards:NEK 606-2004
  • Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China P1 RFOU/TFOU 0.6/1KV Halogen-free Power Cable (NEK606):

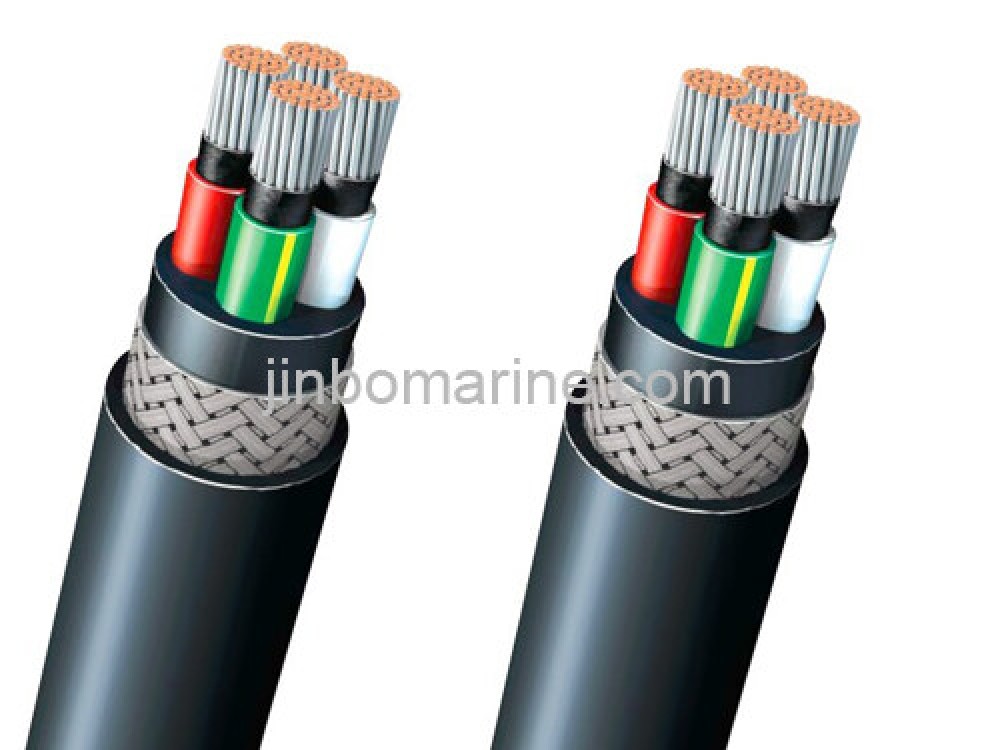

P1 RFOU/TFOU 0.6/1KV Halogen-free Power Cable

P1/P8 RFOU/TFOU 0.6/1KV Halogen-free Power Cable

Cable Construction

Classification

Code

Construction details

Conductor

Tinned Annealed Stranded Copper Wire

Insulation

R

EP Rubber

Bedding/Inner Covering

F

Halogen-free compound SHF1

Armor

O

Tinned Copper wire braided

Outer Sheath

U

Halogen-free Thermoset compound SHF2

Halogen-free mud resistant thermoset compound, SHF Mud

P1 RFCU and P1/P8 RFCU are Galvanized Steel Wire Braided

P1 TFCU and P1/P8 TFCU are Galvanized Steel Wire Braided

Standards

Design : IEC 60092-354

NEK 606-2004

IEC 60332-3 Category A

IEC60754-1

IEC 61034-1

Cores & Size

Cores: 1Core 3Cores

Size (sqmm): 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Feature

Halogen-free, Low Smoke, Flame retardant, Mud Resistant

Application:

The cable is fixed installation in explosion risk and safe area; High Voltage power cables for general purposes; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids
