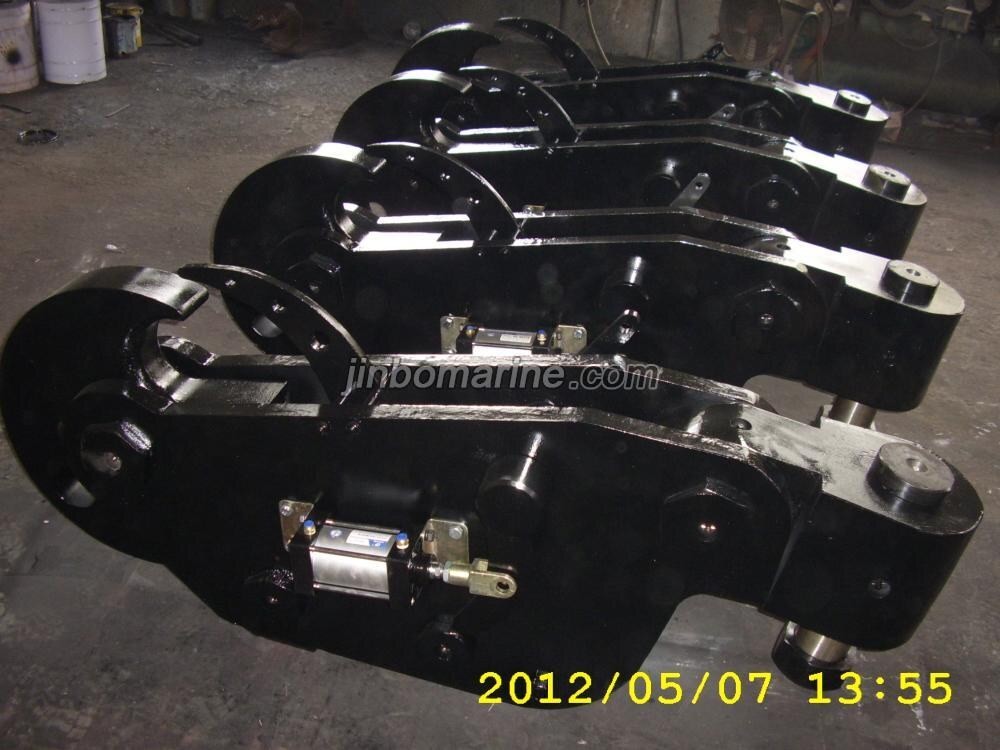

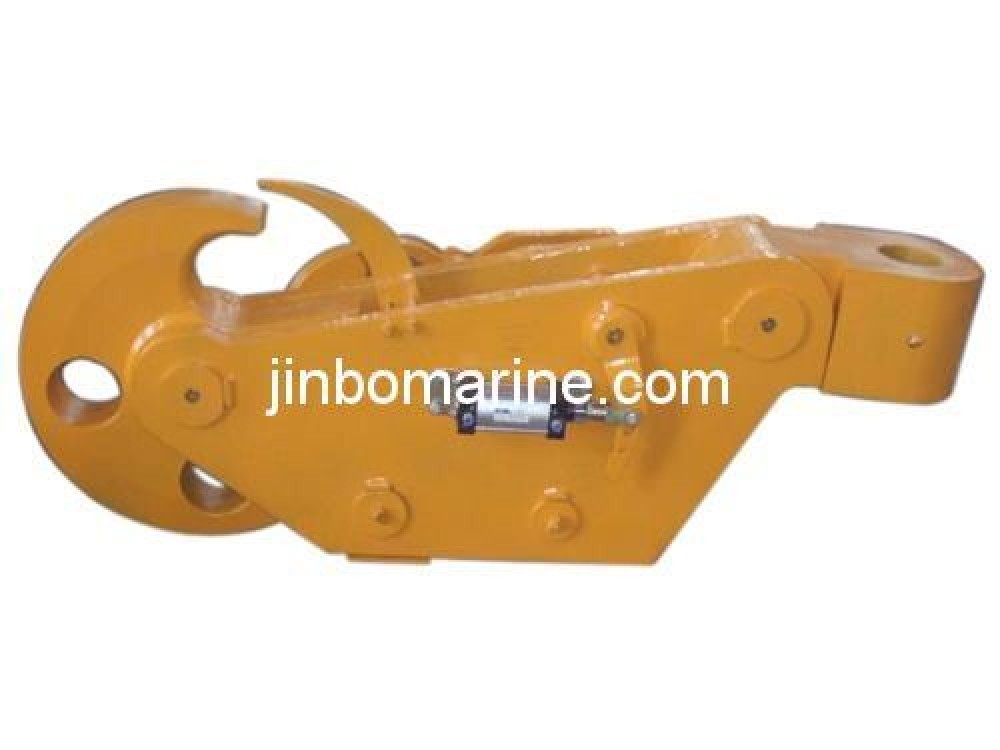

Pneumatic Control Disc type Towing Hook
- Category:Quick Release Disc Type Towing Hook
- Material:Including Q235-A material,35# steel,45 # steel,45Cr, EH36, 65Mn, Q345.The goods can be designed according to your requirements.
- Certificate:CCS,BV ABS ,GL certificate etc can be provide.
- Standards:Conform to the standard of classification society requirement.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Pneumatic Control Disc Type Towing Hook.pdf
Details
Brief description:
Type:Pneumatic control disc type towing hook
Popular model:5~7 ton,8~15 ton,16~25 ton,30~45 ton,50~65 ton,70~100 ton.
Material:
All moving parts are provided with grease nipples(M8)
Certificate:CCS,BV ABS ,DNV,GL,LR certificate etc can be provide.

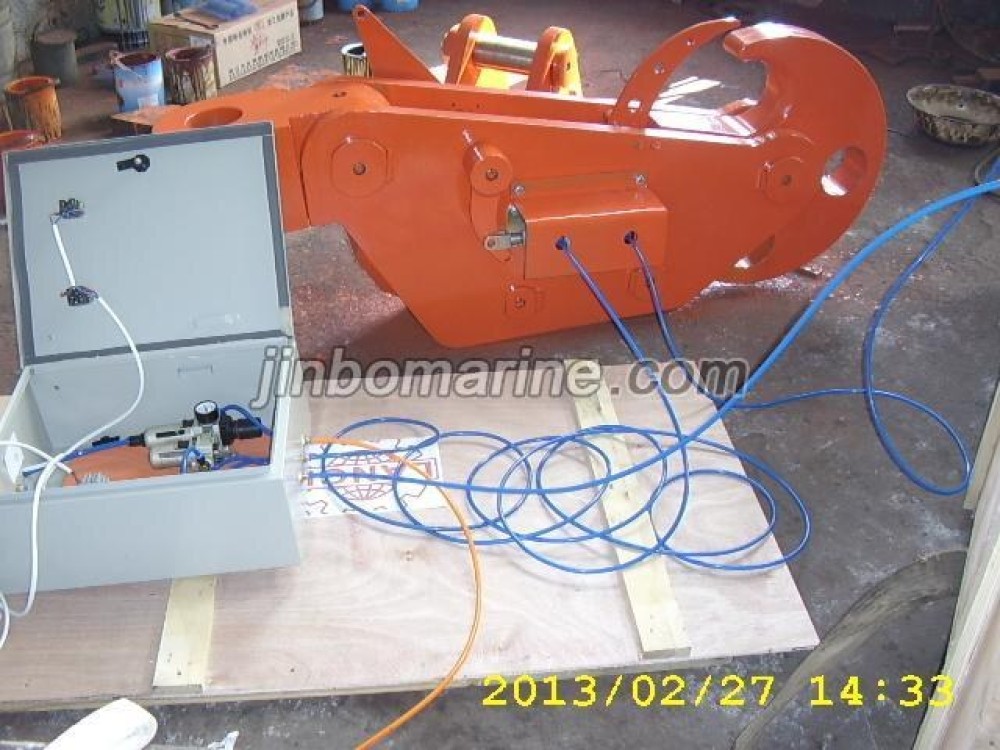

Accessories
FRL Unit(Ball valve, Regulator, Pressure gauge and filter)

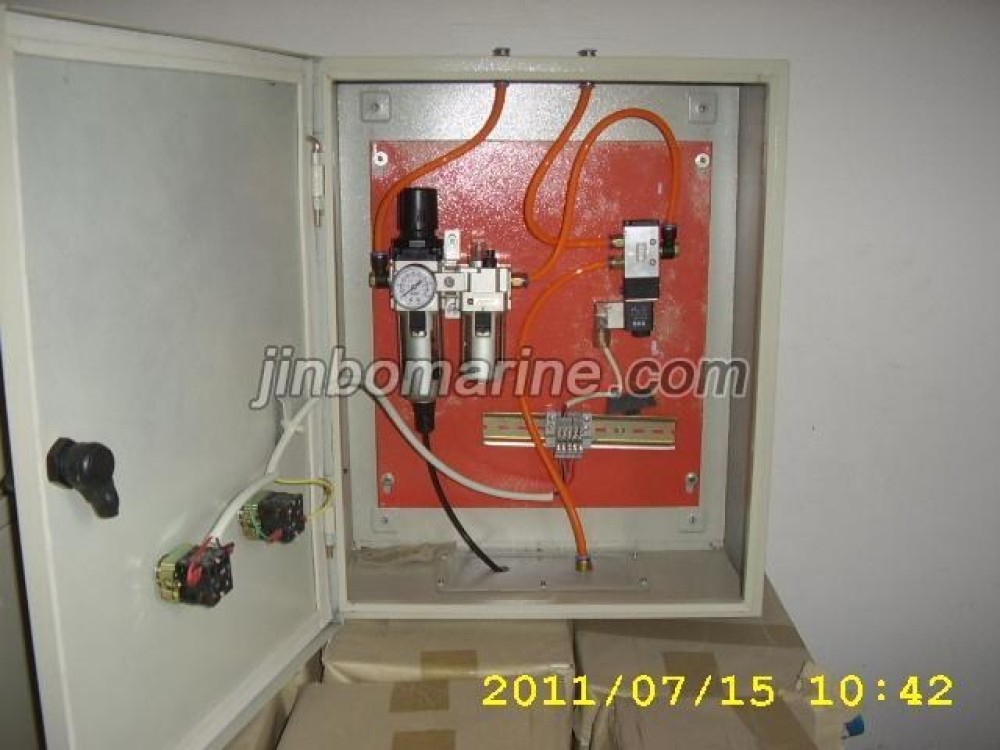

Pneumatic Box
Push buttom switch for installation on Pneumatic box which can put in wheelhouse.
Solenoid:24V DC 3/2Valve
Length of Rubber Hose:20M

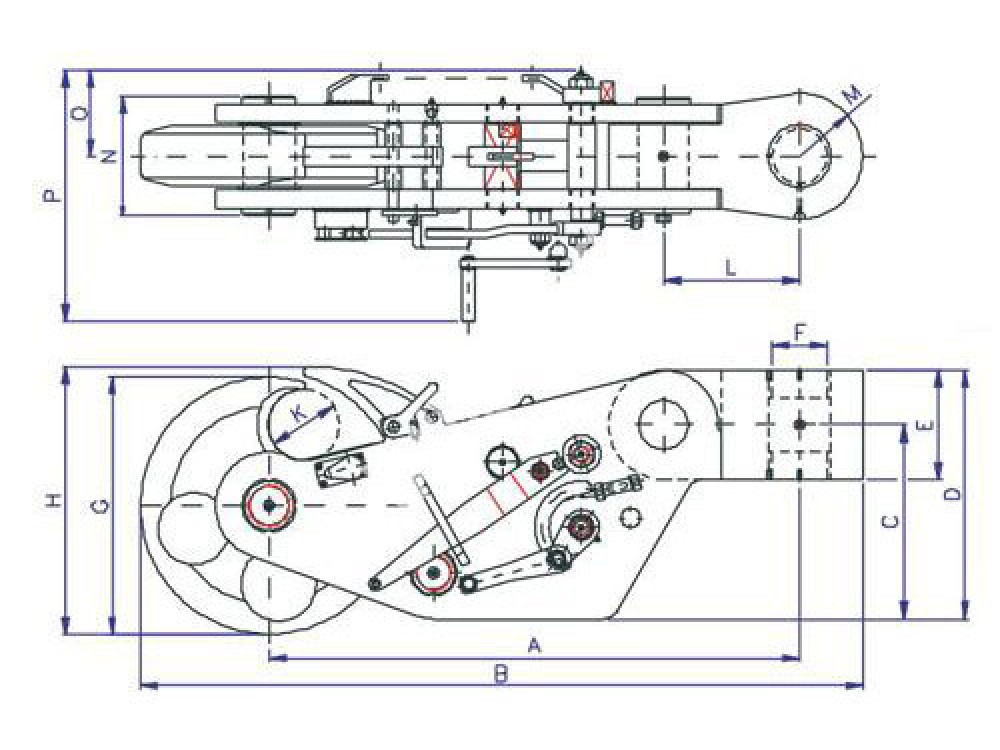

Specification:
|
Product No. |
Safe working load(Kn) |
Test load(Kn) |
Release load(Kn) |
Weight(kg) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
M |
N |
O |
P |
|
PDH-001 |
70 |
140 |
70 |
79 |
512 |
712 |
185 |
235 |
100 |
45 |
280 |
291 |
65 |
125 |
60 |
112 |
97 |
260 |
|
PDH-002 |
150 |
300 |
150 |
174 |
670 |
905 |
255 |
325 |
140 |
60 |
340 |
377 |
100 |
250 |
65 |
144 |
106 |
284 |
|
PDH-003 |
250 |
500 |
250 |
414 |
923 |
1238 |
355 |
445 |
180 |
80 |
470 |
491 |
130 |
200 |
81 |
186 |
124 |
427 |
|
PDH-004 |
450 |
900 |
450 |
534 |
973 |
1323 |
355 |
455 |
200 |
100 |
470 |
190 |
130 |
200 |
115 |
218 |
158 |
462 |
|
PDH-005 |
650 |
1300 |
650 |
918 |
1173 |
1598 |
454 |
464 |
220 |
110 |
600 |
608 |
162 |
250 |
125 |
256 |
173 |
487 |
|
PDH-006 |
1000 |
1500 |
1000 |
1282 |
1068 |
1750 |
492 |
632 |
280 |
135 |
650 |
668 |
176 |
290 |
135 |
288 |
182 |
530 |
Available type:
|
Manual release spring towing hook |
|
Pneumatic control spring towing hook |
|

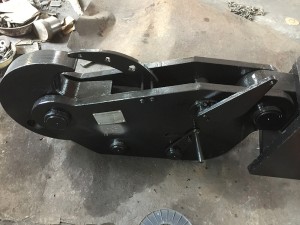

Manual release disc type towing hook |
|
Pneumatic control disc type towing hook |
|
Manual release harbour type towing hook |
|
Pneumatic control harbour type towing hook |
|
Single hook assembly |
|
Double hook assembly |
|
Triple hook assembly |
|
Quardruple hook assembly |
|
Pelican hook |
