Pneumatic Control Spring Towing Hook
- Category:Spring Towing Hook
- Material:Including Q235-A material,35# steel,35 Crmo, 60Si2Mn。The goods can be designed according to your requirements.
- Standards:All standards conform to classification society requirement.
- Certificate:Certificate with CCS, BV, ABS ,GL , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Pneumatic Control Spring Towing Hook.pdf
Details

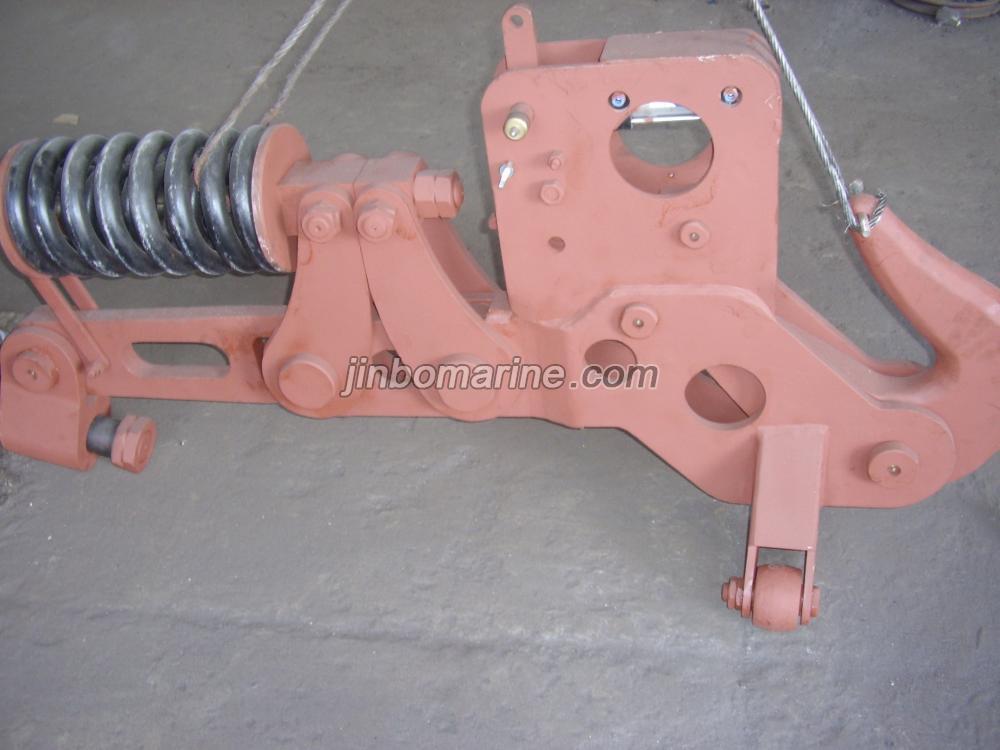

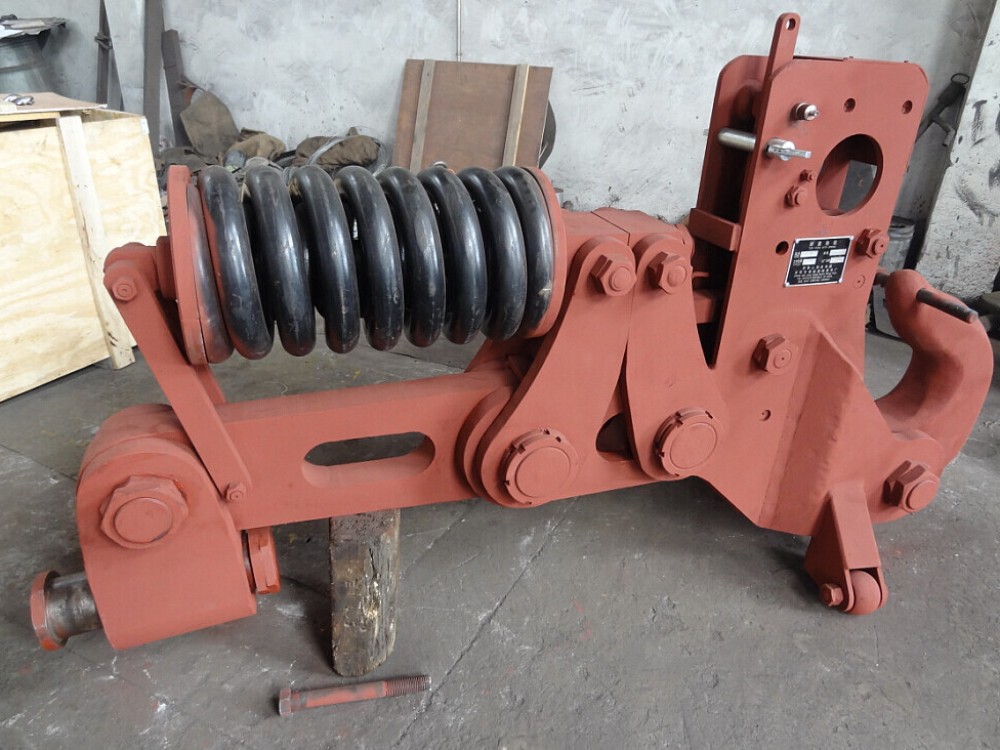

China Pneumatic Control Spring Towing Hook:
It is use for towing with steel,nylon or polypropylene ropes. it can be released manually or from the wheel house by pulling the release wire or by pushing a button. Remote control systems can be supplied with either a hydraulic or pneumatic release mechanism.
Popular model:5 ton,8 ton,10 ton,11 ton,12 ton,16 ton,25 ton,30 ton,40 ton
Type:Pneumatic control spring Type,air control spring type.
Operation mode: Side movement
Material:Including Q235-A material,35# steel,35 Crmo, 60Si2Mn.
Certificate with CCS, BV, ABS , DNV ,GL , mill certificate etc.

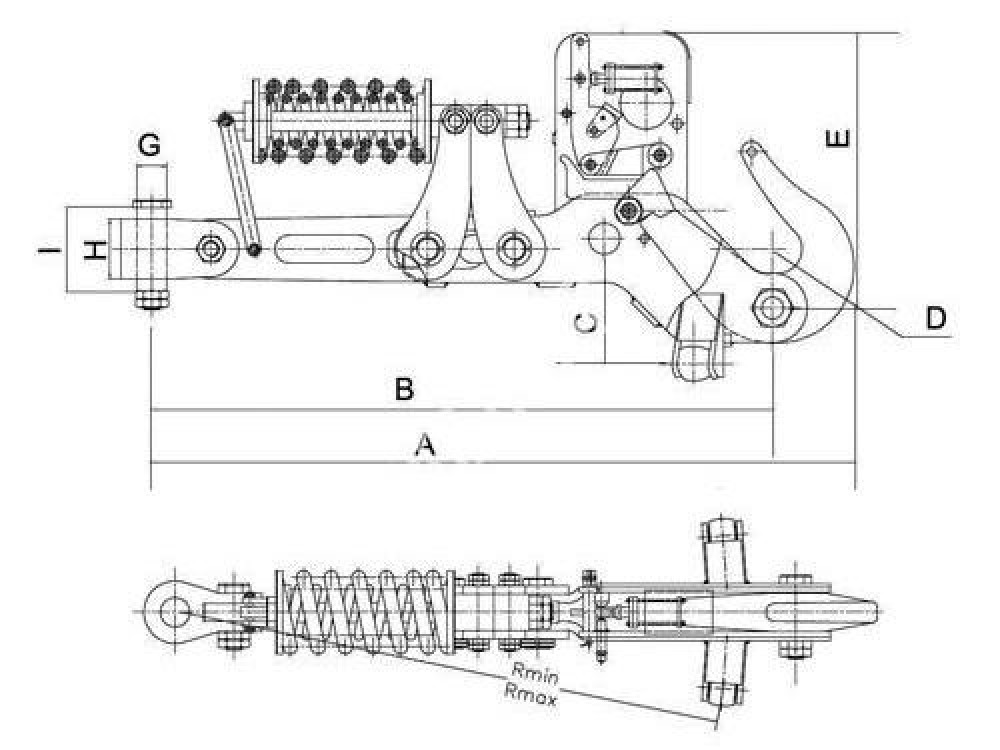

Size chart:
|
Product No. |
Max Towing power(ton) |
Main |
Weight |
Connection |
Action |
Cylinder |
|||||||
|
A |
B |
C |
D |
E |
(KG) |
G |
H |
I |
Max |
Min |
Air |
||
|
PSH-001 |
20 |
1830 |
1630 |
340 |
R50 |
614 |
342 |
70 |
150 |
210 |
1475 |
1400 |
6--8 |
|
PSH-002 |
30 |
2015 |
1780 |
384 |
R70 |
805 |
595 |
85 |
170 |
240 |
1805 |
1690 |
|
|
PSH-003 |
40 |
1935 |
1655 |
404 |
R75 |
830 |
697 |
90 |
190 |
260 |
1590 |
1490 |
|
|
PSH-004 |
60 |
2270 |
1906 |
485 |
R90 |
940 |
1234 |
110 |
240 |
340 |
1845 |
1740 |
|
