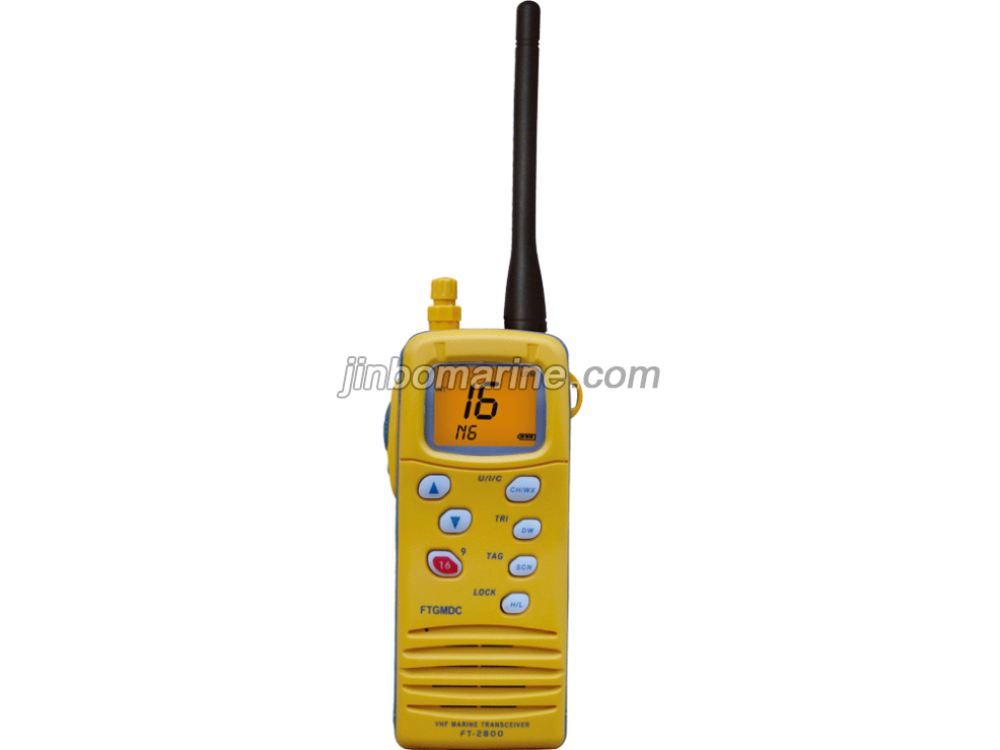

Portable Two Way VHF

(1).Feature

1. Use microprocessor control Synthesizer to ensure high stability frequency on each channel.
2.Up to 88 working channels.
3.Provided external microphone / speaker ; Rear hook, convenient fixed.
4.Battery easy disassembly and re-assembly ;
5.Long service life, the ability to adapt to the environment.
6.Compact and flexible.
7.Excellent watertight ability, can be placed it under 1 meter more than 5 minutes,
Sea water or oils not easy to invasion. .
8.Yellow appearance, ease of identification, especially in a dark place.
9.Original battery heavy duty capacity, the maximum rated power and load 1:9 can work 8 hours
battery life 2 years.


(2).Technical Specifications

1.Overall specifications
Frequency Range156.025-157.425MHZ
Modulation methodFM16KOG3E
Receiving systemSuper heterodyne double conversion
Frequency tolerance±10ppm-20~60
Power Supply DC 6.4V
Antenna impedance50Ω
DimensionsW52×H145×D32
Weight200g±2%

2.

Transmitter specifications :


Output power≤ 2WHigh/ 1WLow
Modulation limit≤ ±5KHZ
Modulation sensitivity20mV±10mV
Audio distortion≤ 7%
Spurious emissions ≤ -53dB

3.

Receiver specifications:


Reference sensitivity≤ 0.40μV
Squelch-on sensitivity≤ 0.25μV
Deep squelch blocking threshold≥ 5KHZ
Adjacent channel selectivity≥ 65dB
Inter modulation rejection ratio≥ 58dB
spurious response≥ 65dB
Audio output power≥ 0.5W
Audio distortion≤ 7%

Note: Specifications are subject to change without notice.
