RAI TYPE Rudder Angle Indicator

Request a Quote Not what you need, please send your RFQs via Email.

Details

China RAI TYPE Rudder Angle Indicator:

1.high indicating precision;
2.no any noise;
3.direct and clear indication;
4.RAI-1 and RAI-2

This RAI rudder angle indicator can be equipped with multiple single-face rudder angle indicators.

The signal of rudder angle transmitted by rudder angle is employed in RS-485 digital transmission. It has advantages of long transmitting distance and intensive interference rejection.

The system could transmit output signal of six-way sub-display and two-way RS485 (accord with IEC-61162 connection standard).

The rudder angle range is both 35° -0° -35° and 45° -0° -45° which is set arbitrarily.

This RAI rudder angle indicator has two types: RAI-1 and RAI-2

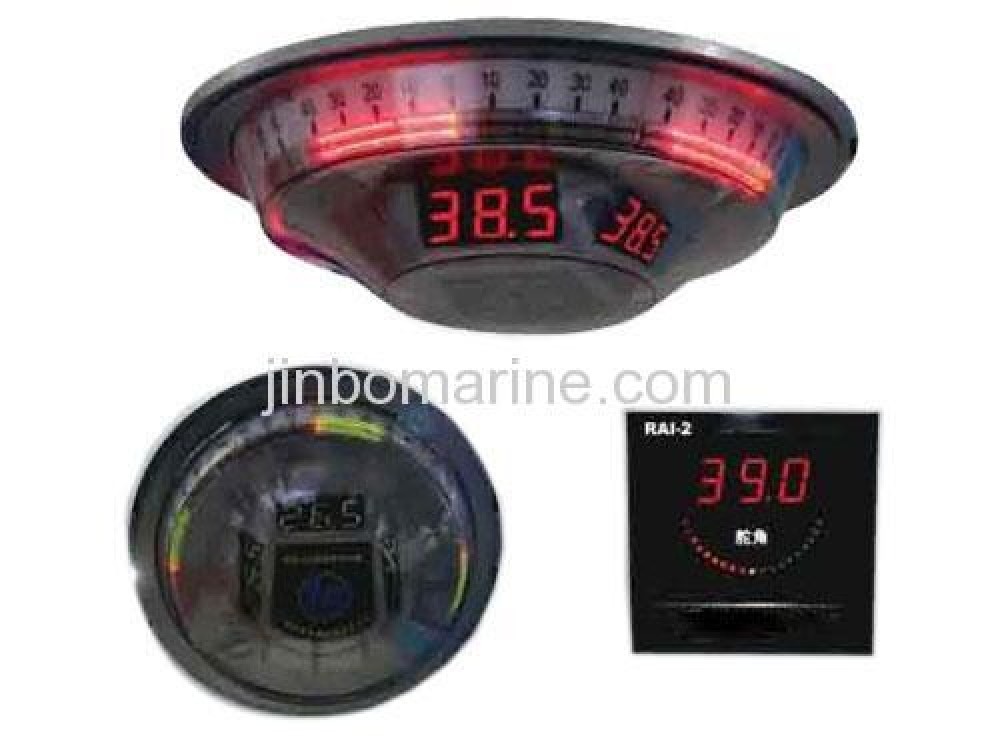

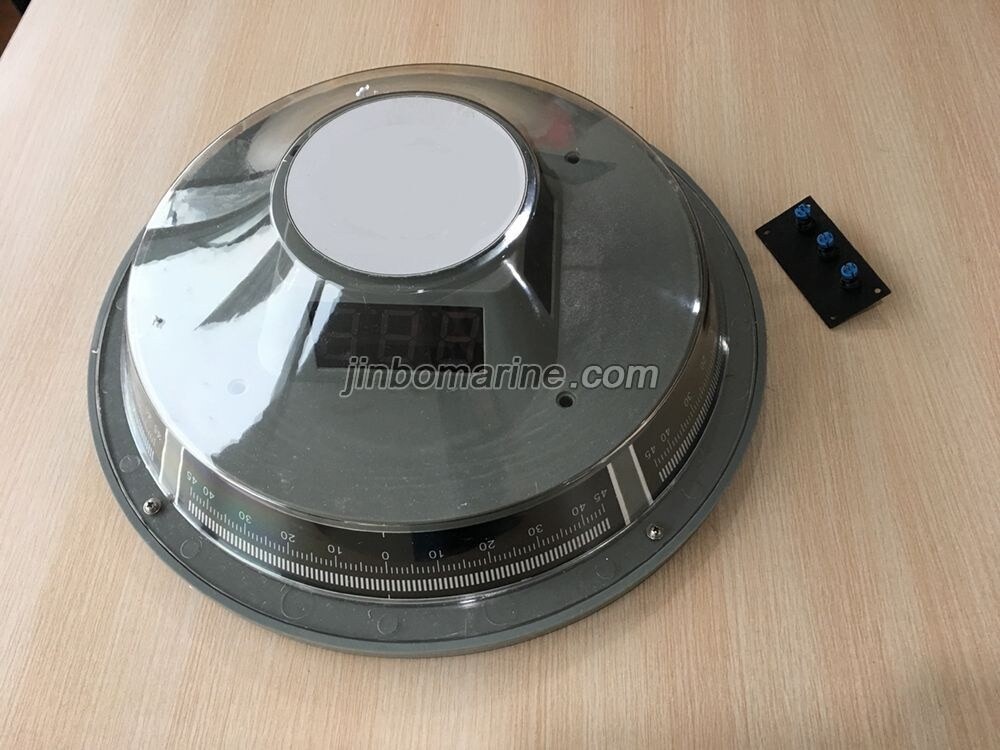

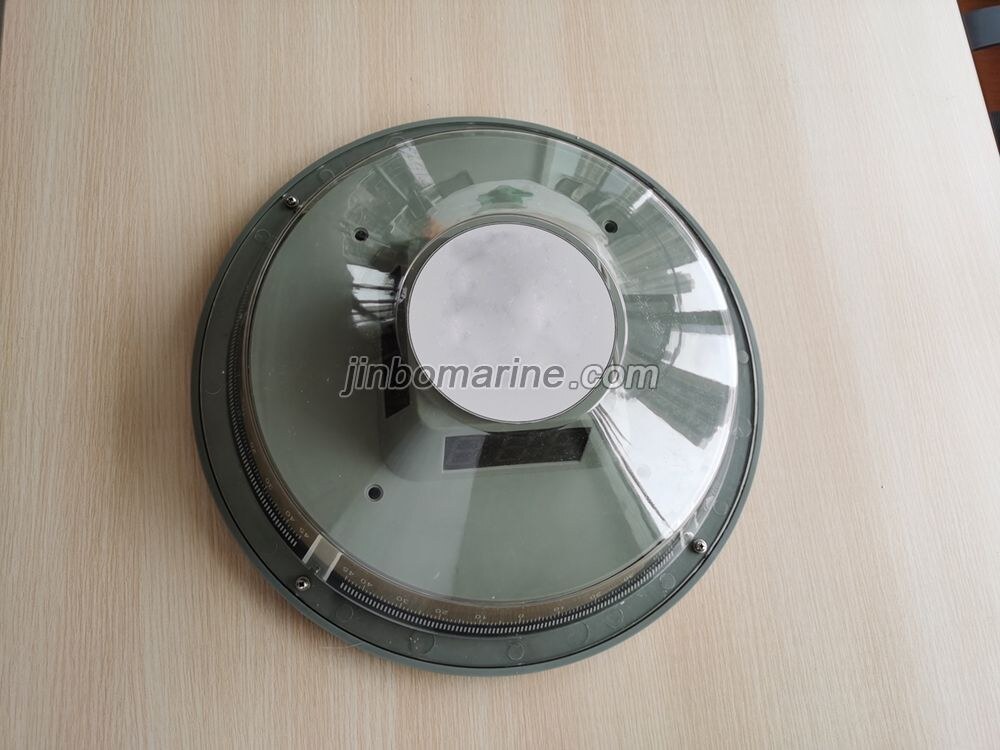

RAI-1(type) three-face rudder angle indicator possesses both analog and digital indication. The former is employed in light-emitting diode and the latter is nixie tube.

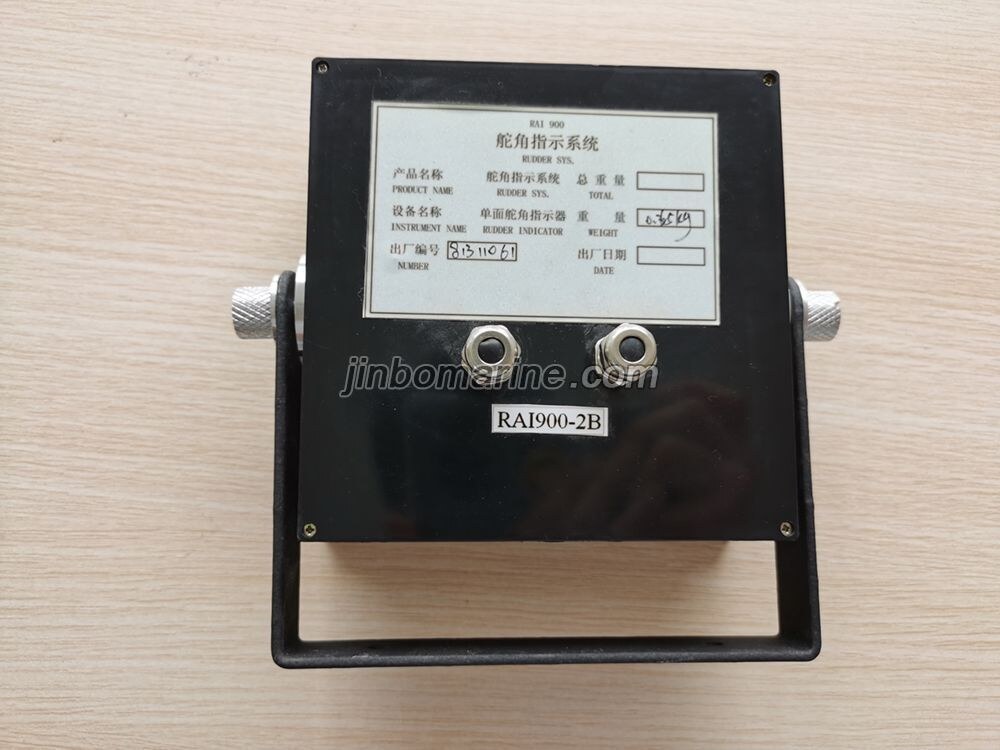

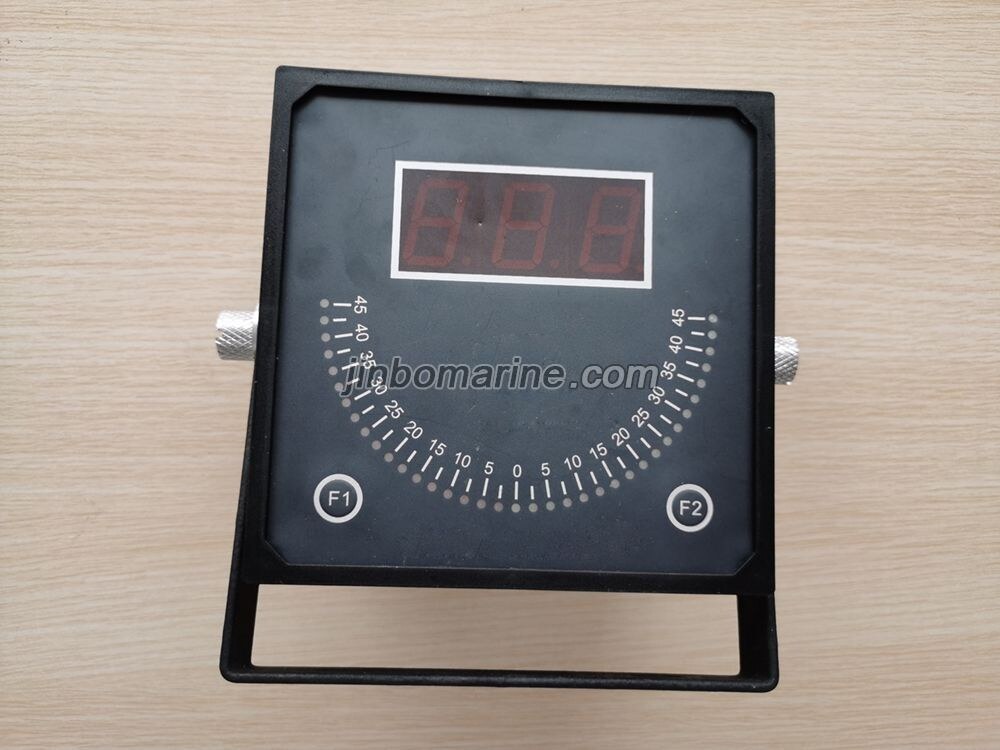

RAI-2(type) single-face rudder angle indicator is digital indication in terms of nixie tube and light-emitting diode is used for indicating the rudder of port and starboard.

TECHNICAL DATA:

a. Rudder angle indicating precision is no more than 1°

b. Operating voltage: 24V DC2.5A

c. Mounting mode :

Overhead mounting (for Type RAI-1)

Panel, Bulk head and Desk mounting (for Type RAI-2)

d. Overall dimensions:

Type RAI-1 (three-face rudder angle indicator): Ø405mm

Type RAI-2 (single-face rudder angle indicator): 144*144mm

e. System includes:

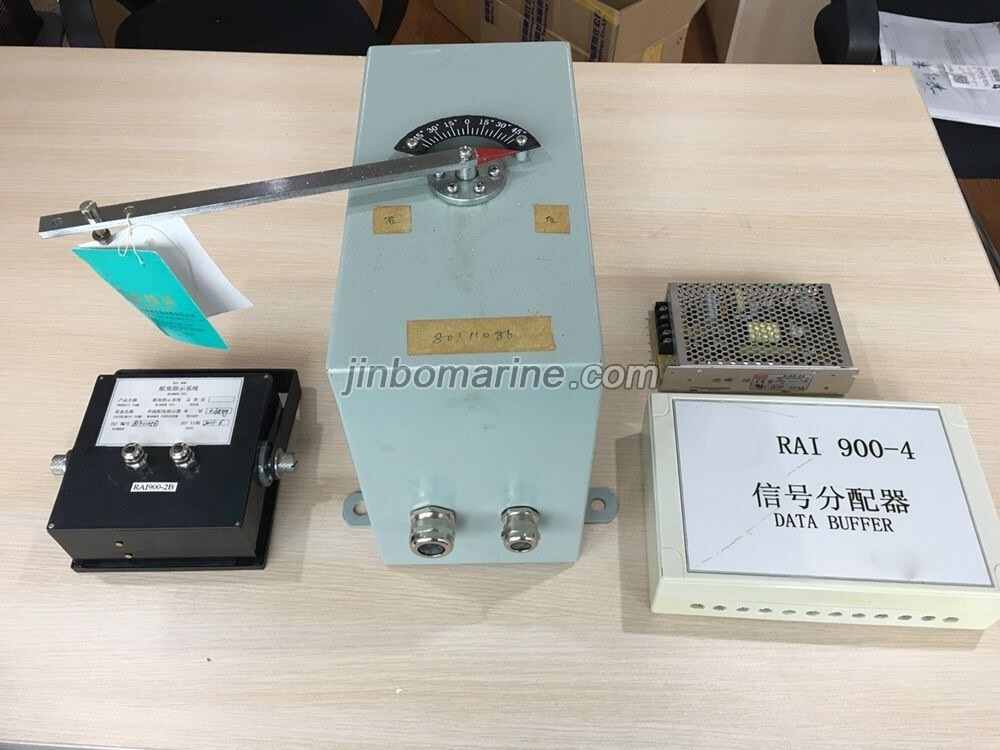

rudder angle transmitter, three-face rudder angle indicator, single-face rudder indicator,

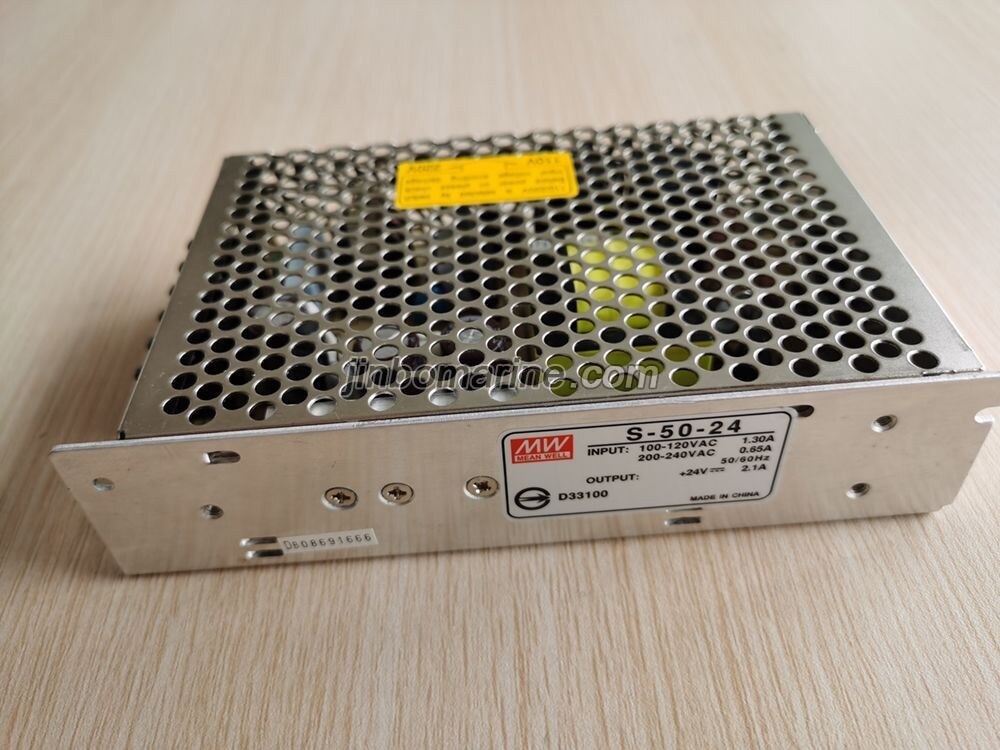

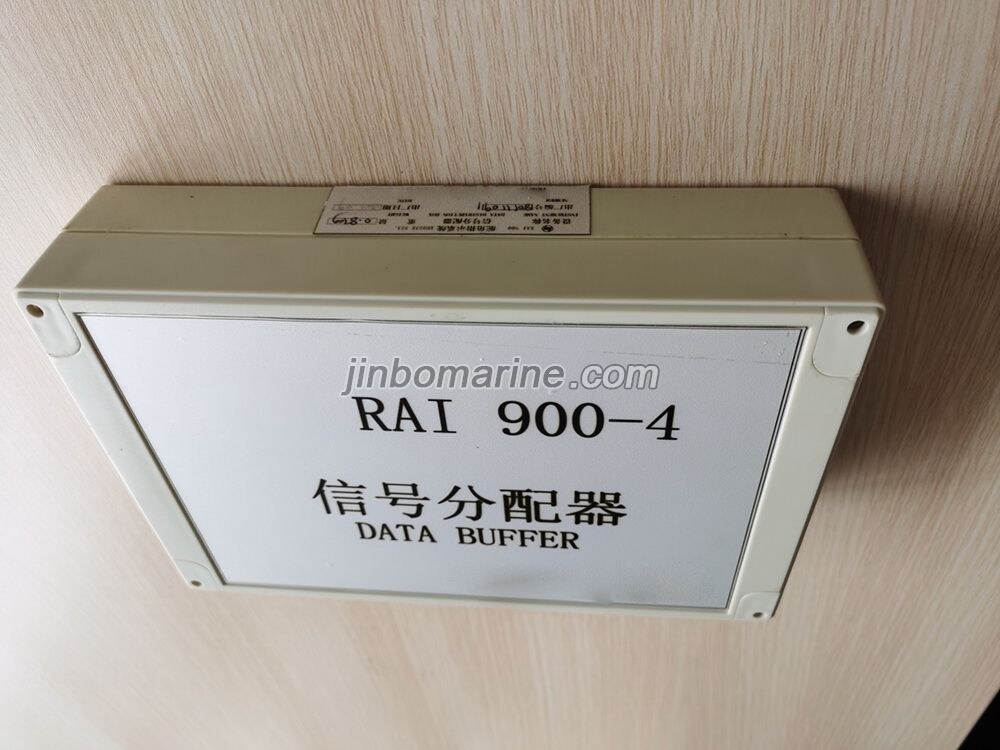

signal distributor and DC-DC electricity converter.
