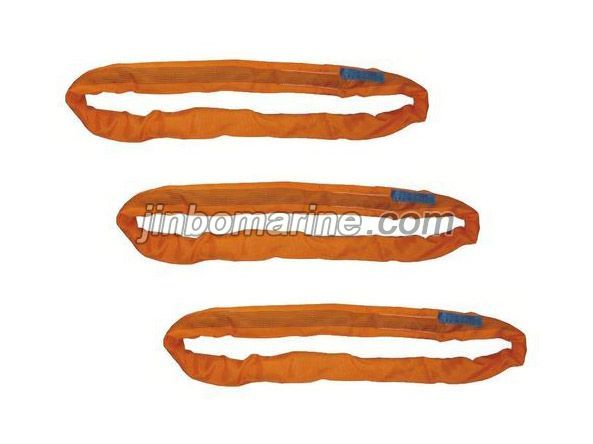

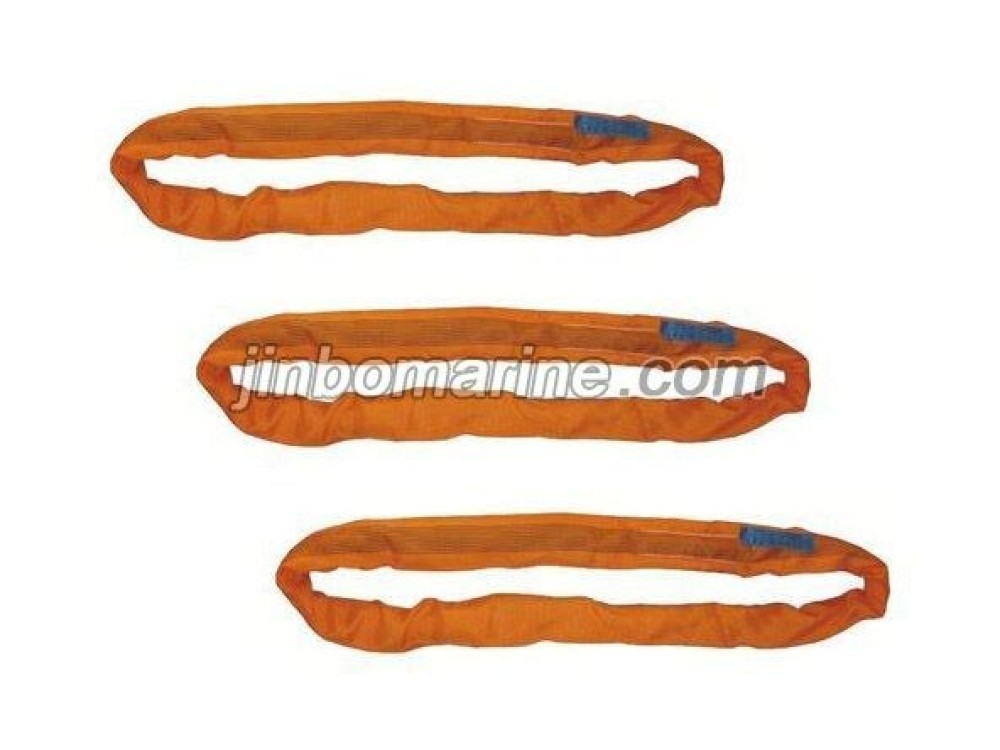

RC Round Sling
- Category:Chain Sling
- Standards:ISO9001
- Certificate:CCS
- Packing Details:Standard Export Packaging
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description
RC round sling is compact in structure and with multiple suspension points . The contact area with the object is large.
The sling body is thick and its surface is flat and wear rear resistant .
Technical Data
| Products code |
Working load limit （kg） |
Approximate thickness （mm） |
Approximate width （mm） |
Min length（m） | Max length(m) |
| RC1/2 | 500 | 4 | 50 | 0.5 | |
| RC001 | 1000 | 6 | 50 | 0.5 | |
| RC002 | 2000 | 8 | 60 | 0.5 | |
| RC003 | 3000 | 9 | 70 | 0.5 | |
| RC004 | 4000 | 11 | 70 | 0.5 | |
| RC005 | 5000 | 13 | 85 | 0.5 | |
| RC006 | 6000 | 13 | 85 | 1 | |
| RC008 | 8000 | 13 | 120 | 1 | |
| RC010 | 10000 | 14 | 120 | 2 | |
| RC012 | 12000 | 15 | 130 | 2 | |
| RC015 | 15000 | 18 | 130 | 2 | |
| RC020 | 20000 | 20 | 140 | 2.5 | |
| RC025 | 25000 | 24 | 140 | 2.5 | |
| RC030 | 30000 | 32 | 145 | 2.5 | |
| RC040 | 40000 | 40 | 150 | 2.5 | |
| RC050 | 50000 | 45 | 175 | 2.5 | To be customized |
| RC060 | 60000 | 65 | 205 | 4 | |
| RC080 | 80000 | 70 | 250 | 4 | |
| RC100 | 100000 | 80 | 290 | 4 | |
| RC200 | 200000 | 120 | 465 | 5 | |
| RC300 | 300000 | 160 | 555 | 5 | |
| RC400 | 400000 | 200 | 700 | 5 | |
| RC500 | 500000 | 220 | 790 | 8 | |
| RC600 | 600000 | 240 | 875 | 8 | |
| RC700 | 700000 | 260 | 920 | 8 | |
| RC800 | 800000 | 280 | 985 | 8 | |
| RC900 | 900000 | 300 | 1050 | 9 | |
| RC1000 | 1000000 | 320 | 1080 | 9 |
