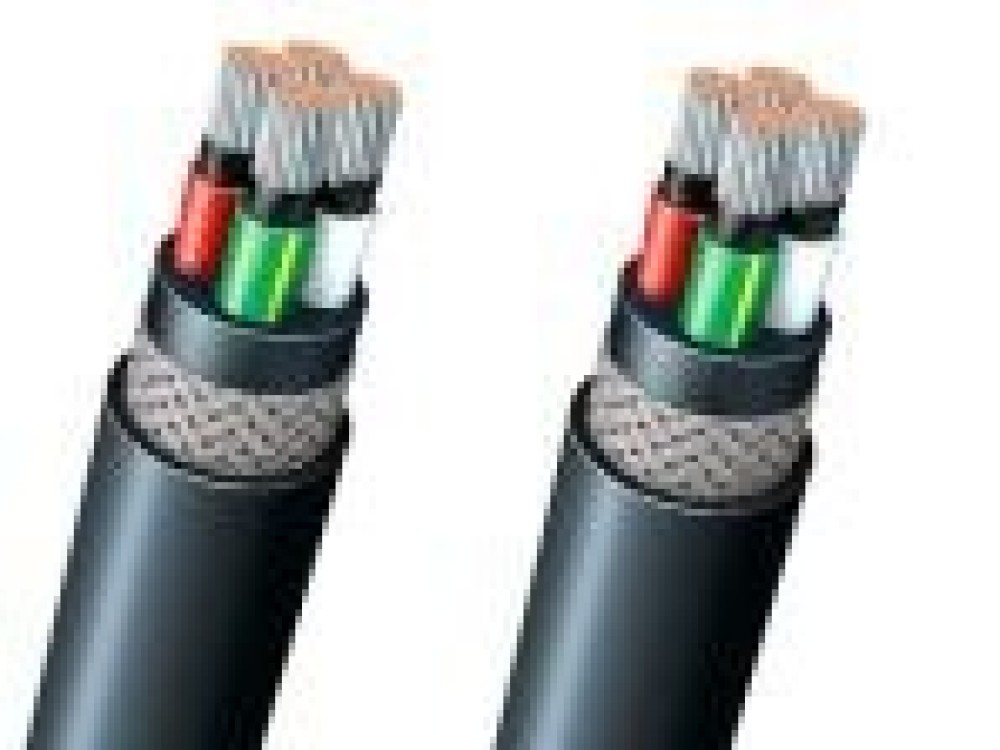

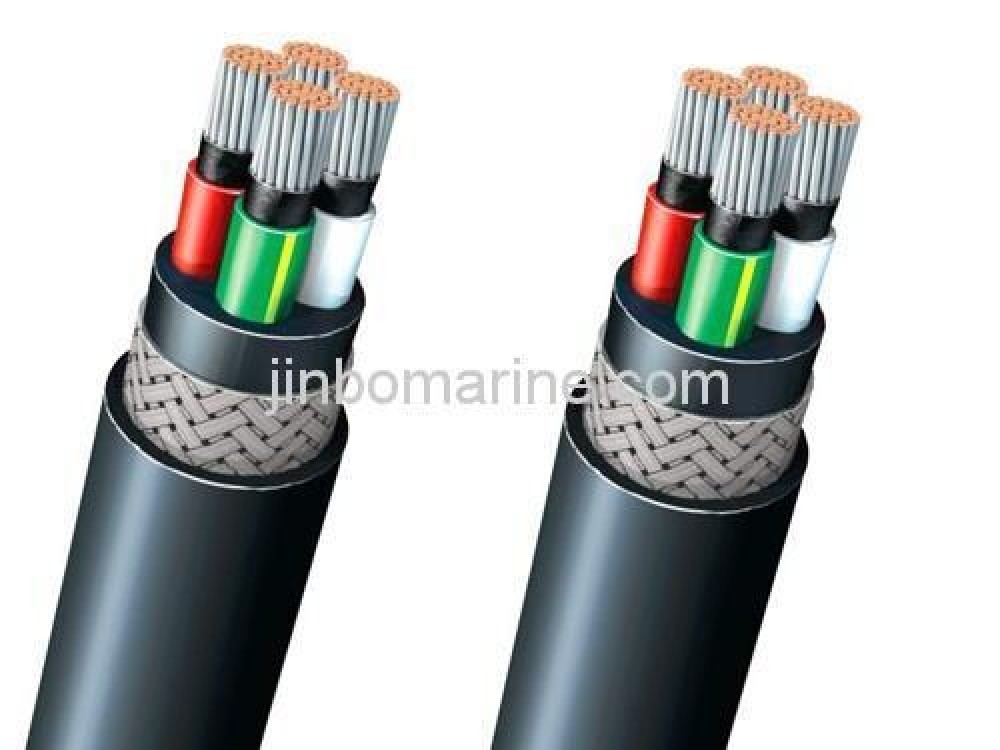

RFOU 0.6/1KV P1/P8 Halogen-free MUD Resistant Marine Power Cable

  • Category:NEK606 Cable
  • Material:Tinned Copper/EPR insulation/Twisted+Individual Screen/SHF2 sheath/Tinned Copper Wire/SHF2 or SHF Mud
  • Standards:NEK 606-2004
  • Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China RFOU 0.6/1KV P1/P8 Halogen-free MUD Resistant Marine Power Cable:

Flame Retardant Halogen-free Power Cable, Mud Resistant

NEK TS606 Code P1/P8

Operating Temperature: 90Degress

Operating Voltage: 0.6/1(1.2KV)

Application:

Fixed installation for power, control and lighting in both Ex- and Safe Areas, general purposes.For instlatiion in areas exposed to MUD and Drilling/cleanng fluids. Meets the MUD resistance requirement in NEK TS606:2009.

Construction

Code Letter

Description

Conductor

Tinned annealed copper(STCC), IEC 60228 Class 2

Insulation

R

EP Rubber, IEC 60092-351(EPR)

Lay-up/Shielding

Cores laid up in concentric layers

Inner Covering

F

Flame Retardant and Halogen-free Thermoset Compound

Tape over inner covering

PET Tape

Armour/screen

O

Tinned Annealed Copper Wire Braid

Outer Sheath

U

Flame Retardant, Halogen-free and Mud Resistant Thermoset Compound SHF2(IEC60092-359)

Color

Black

Size: 1-37Cores

Nominal Cross-Sect. Area: 16sqmm, 25sqmm, 35sqmm, 50sqmm,70sqmm,95sqmm, 120sqmm, 150sqmm, 185sqmm,240sqmm,300sqmm.

Core Identification:

Single Core: Black

Two Cores: Blue, Brown

Three Core: Blue, Black, Grey

Four Cores: Blue, Brown, Black, Grey

Five Cores or Above:White with Black Numbers.
