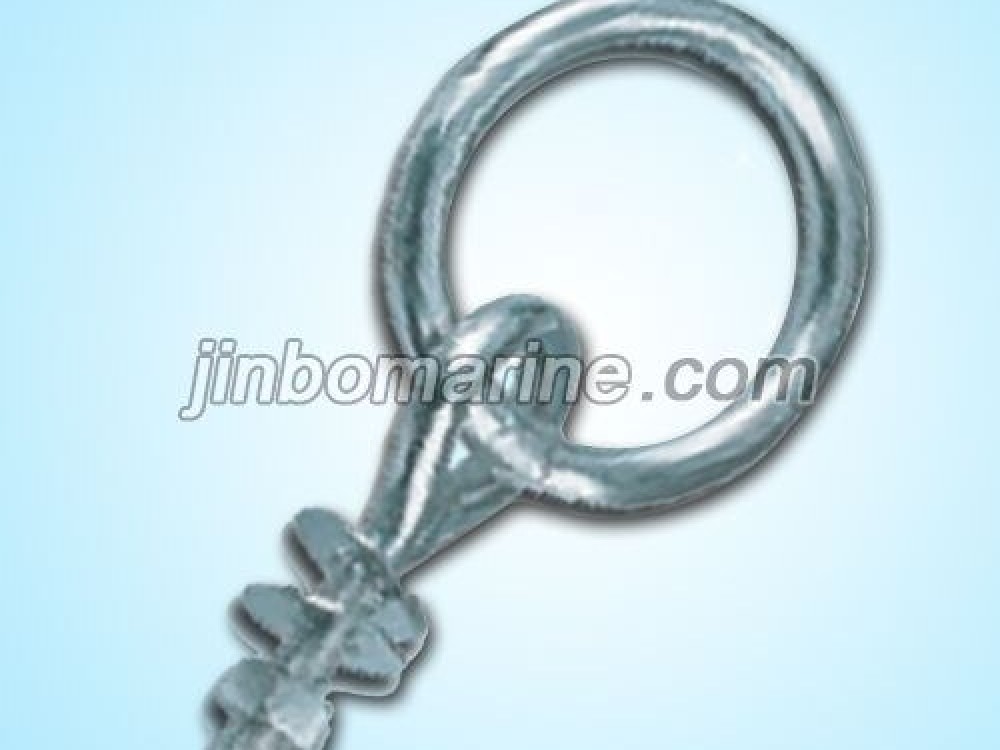

Ring Bolt With Double Washer And Nut, SS304 OR SS316
- Category:Eye Bolts & Nuts
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Ring Bolt With Double Washer And Nut, SS304 OR SS316:
| SIZE |
Φ mm |
A mm |
B mm |
C mm |
D mm |
SWL kgs |
BL kgs |
| M5x40 | 5 | 30 | 40 | 60 | M5 | 200 | 800 |
| M6x50 | 6 | 35 | 50 | 75 | M6 | 250 | 1000 |
| M6x60 | 6 | 35 | 60 | 90 | M6 | 250 | 1000 |
| M8x50 | 8 | 45 | 50 | 85 | M8 | 450 | 1800 |
| M8x60 | 8 | 45 | 60 | 100 | M8 | 450 | 1800 |
| M10x50 | 9 | 50 | 50 | 100 | M10 | 600 | 2400 |
| M10x75 | 9 | 50 | 75 | 120 | M10 | 600 | 2400 |
| M12x70 | 12 | 60 | 70 | 120 | M12 | 1000 | 4000 |
| M12x 100 | 12 | 60 | 100 | 150 | M12 | 1000 | 4000 |
| M12x120 | 12 | 60 | 120 | 180 | M12 | 1000 | 4000 |
