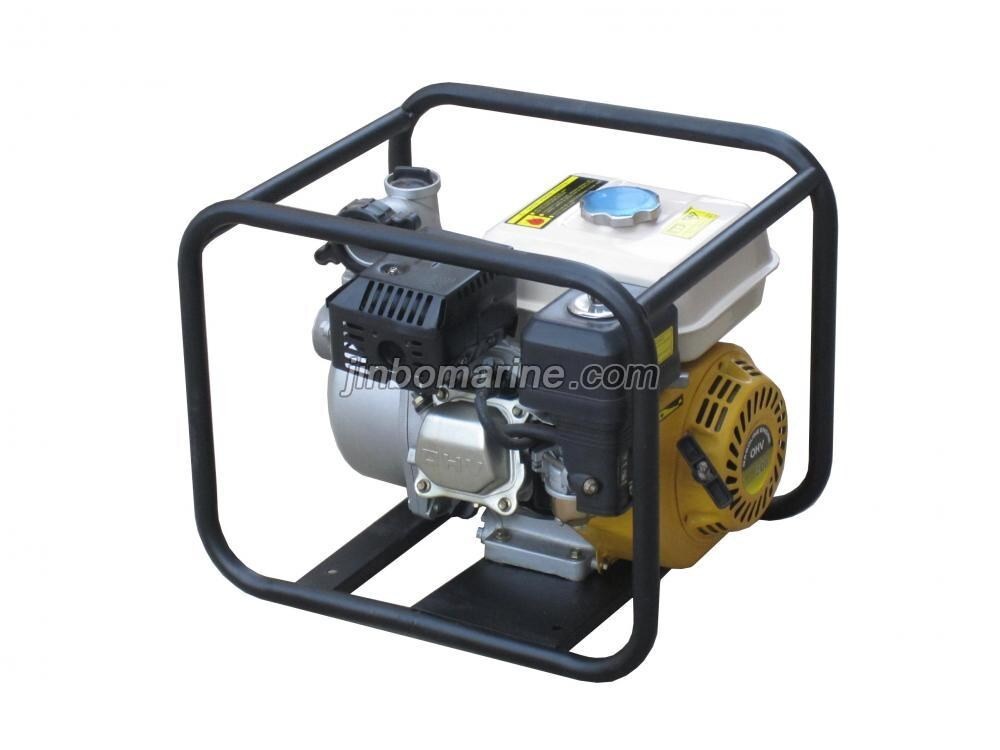

Robin Pump
- Category:Other Marine Pump
- Material:Cast aluminum alloy
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Portable Diesel Engine Driven Pump
This Portable Diesel Engine Driven Pump is self priming single stage centrifugal water pump, driven by diesel engine, Aluminum alloy pump case, mechanical seal, compact design with light weight, convenient usage, are widely used in water conservance, agricultural, mine industry, enterprise, construction site, botanical garden.
Main Parameter
| Sewage water | |||
| Model | WP30V | DWB30 | |
| water pump | In/out diameter | 76.2mm(3") | 80mm(3") |
| Cont.head (m) | 16 | 25 | |
| Cont.capacity (m3/h) | 75 | 45 | |
| Engine | Engine Model | HR178FE | HR178FE |
| Engine type | single-cylinder, vertical,4 stroke,air cooled. | single-cylinder, vertical,4 stroke,air cooled. | |
| BorexStroke | 78x62 | 78x62 | |
| Fuel consumption rate(g/kw/h) | less than 296 | less than 296 | |
| Fuel | 0# or -10# light diesel oil | 0# or -10# light diesel oil | |
| Combustion system | Direct injection | Direct injection | |
| starting system | Electric | Electric | |
| Dimensions | Fuel tank capacity(L) | 3.5 | 3.5 |
| Dimention(LxWxH)(cm) | 82x53x66 | 82x53x66 | |
| Net weight(kgs) | 92 | 92 | |
| Gross weight(kgs) | 95 | 95 | |
| Model | DP20 | DP30 | DP40 | DP15H | DP20H | DP30H | |
| Parameter | In/out diameter | 50mm(2") | 80mm(3") | 100mm(4") | 40mm(1.5mm) | 50mm(2") | 80mm(3") |
| Cont.head(m) | 26 | 28 | 31 | 60 | 65 | 70 | |
| Self-priming time(s/4m) | 70 | 120 | 180 | 30 | 30 | 30 | |
| Max suction head(m) | 8 | ||||||
| Cont.capacity(m3/h) | 38 | 50 | 96 | 18 | 23 | 38 | |
| Engine model | HR170F | HR178F | HR186F | HR178F | HR186F | HR188FA | |
| Speed(rpm) | 3600 | ||||||
| Type | Single cylinder,vertical,4 stroke air cooled diesel engine | ||||||
| Displacement(cc) | 211 | 296 | 406 | 296 | 406 | 438 | |
| Borexstroke(mm) | 70x55 | 78x62 | 86x70 | 78x62 | 86x70 | 66x72 | |
| starting system | Recoil | ||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 3.5 | 5.5 | 5.5 | |
| Standrad features | Connecter of infall and outfall | Yes | |||||
| Filter | Yes | ||||||
| Hoop | Yes | ||||||
| Seal ring | Yes | ||||||
| Optional features | Luxury big fuel tank | Yes | |||||
| Elctrci star | Yes | ||||||
| Battery | Yes | ||||||
| Dimensions | Dimension(LxWxH)mm | 490x405x515 | 558x405x550 | 650x480x610 | 570x445x550 | 646x476x805 | 655x485x620 |
| Net weight | 35 | 52 | 68 | 46 | 69 | 69 | |
