Round Steel Watertight Hatch Cover
- Category:Marine Cover
- Material:Steel
- Standards:CB/T3842-2000
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

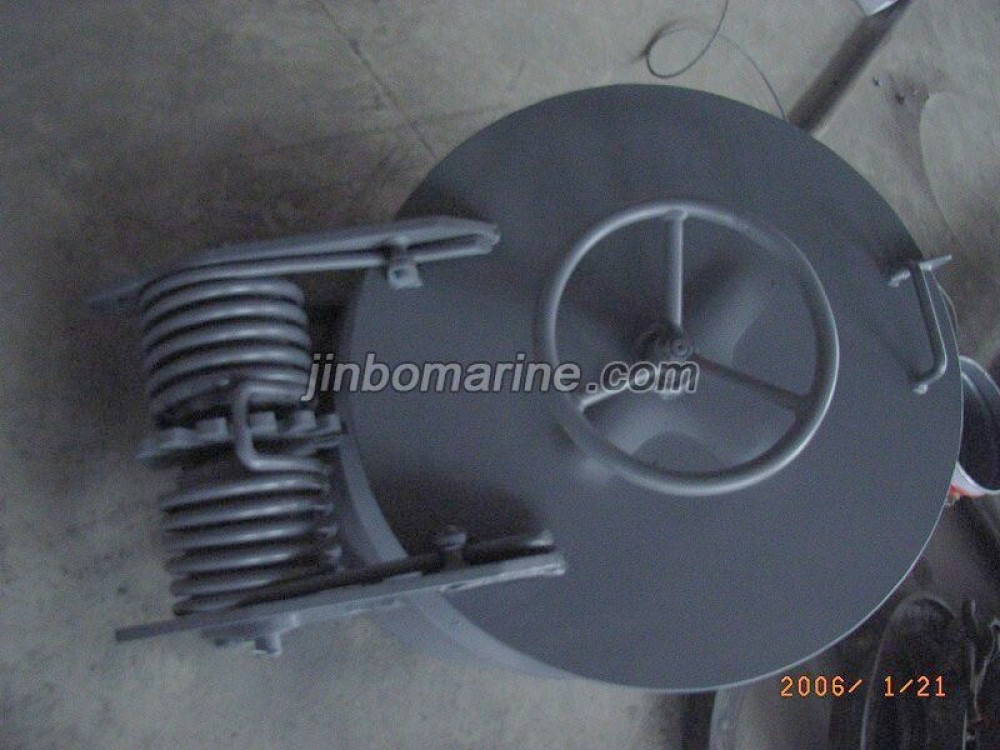

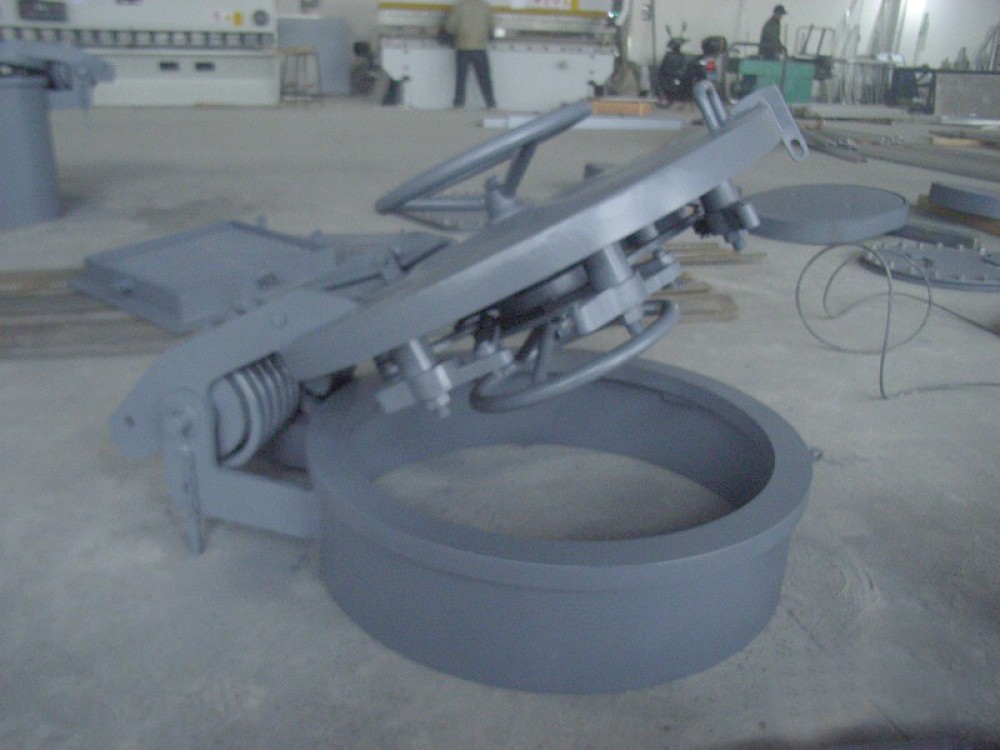

China Round Steel Watertight Hatch Cover:
Standard:CB/T3842-2000
The hatch cover is with the spring-balance device and the central clip device, so it is watertight, and can be opened or closed quickly and easily.There are two types, A type is round, B type is square. It is used as the quick entry or exit which has the watertight demand on various ships
The use pressure is 0.2Mpa.
Watertight test requirement: The cover must be closed, and maintain 15 minutes after 0.3Mpa water is put into the test tank.
Main Material:
Cover-Steel
Coaming-Steel
Handwheel-Steel, Stainless Steel or Steel with Galv
Spring-Spring Steel

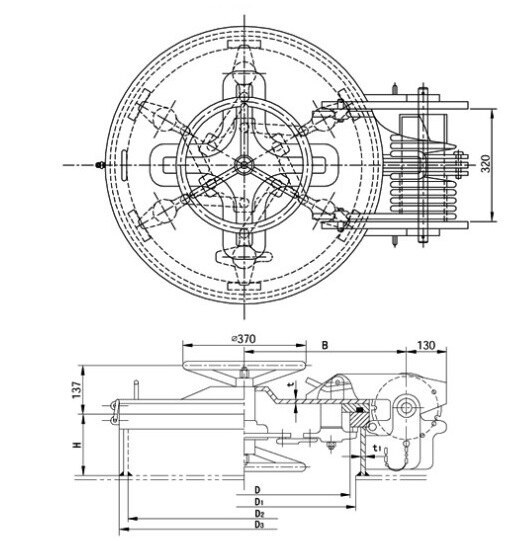

Main Size List(mm):
| Clear Size | Cut Out Size | Coaming Inner Diameter | Cover Outside Diameter | Cover Thickness | Coaming | Center Distance | Weight | |
| D | D1 | D2 | D3 | t | t1 | H | B | kgs |
| 600 | 640 | 670 | 720 | 12 | 12 | 200 | 473 | 245 |
| 650 | 690 | 720 | 770 | 498 | 266 | |||
| 700 | 740 | 770 | 820 | 523 | 285 | |||
| 750 | 790 | 820 | 870 | 548 | 306 | |||
| 800 | 840 | 870 | 920 | 573 | 328 | |||
