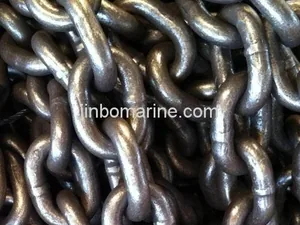

Self-Color Hatch Cover Chain

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

  • Material: 20Mn2
  • Size: 11mm to 30mm
  • Customized Size available.


Diameter Inside Length Inside Width Proof Load Breaking Load Weight
mm mm mm KN KN KG/M
11 43 12.5 57 116 2.39
14(A) 50 17 97 194 3.95
14(B) 42 18 97 194 4.32
15 42 21 106 212 5.2
16(A) 55 22 128 254 5.34
16(B) 55 18 128 254 5.29
18(A) 54 24 161 322 7.12
18(B) 64 25 161 322 6.32
19 57 24 164 330 7.6
20(A) 60 22 129 359 9.5
20(B) 62 22 179 359 8.57
22(A) 78 31 240 480 9.86
22(B) 86 30 240 480 9.24
22(C) 66 31 240 480 10.6
30 108 35 399 798 18.22
