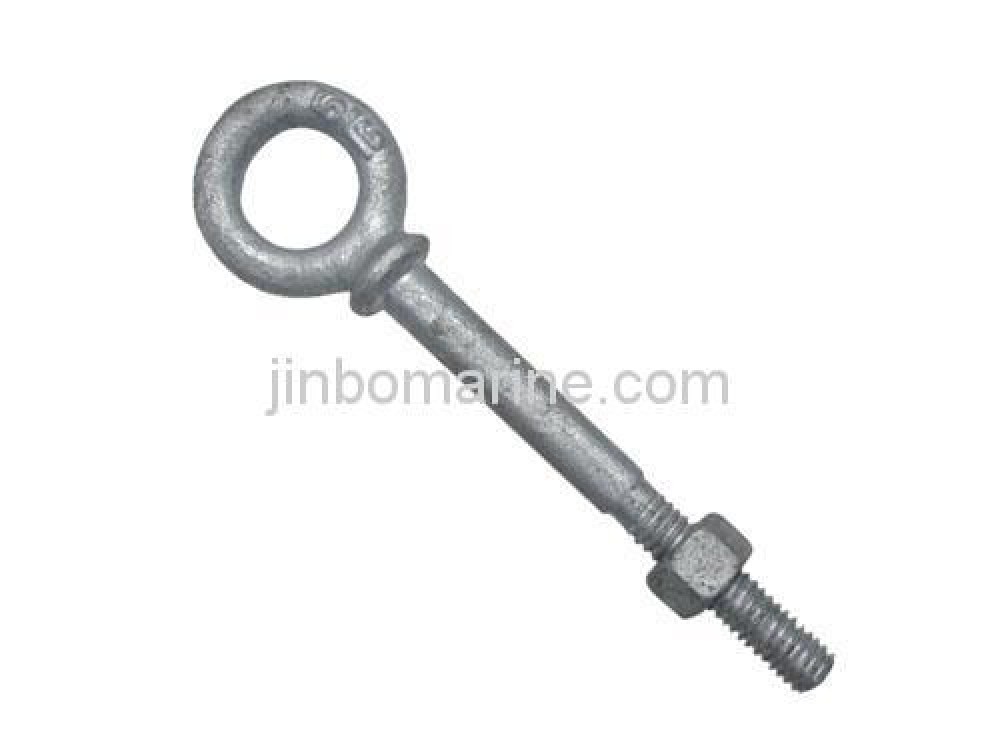

Shoulder Nut Eye Bolts G277

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Size Table

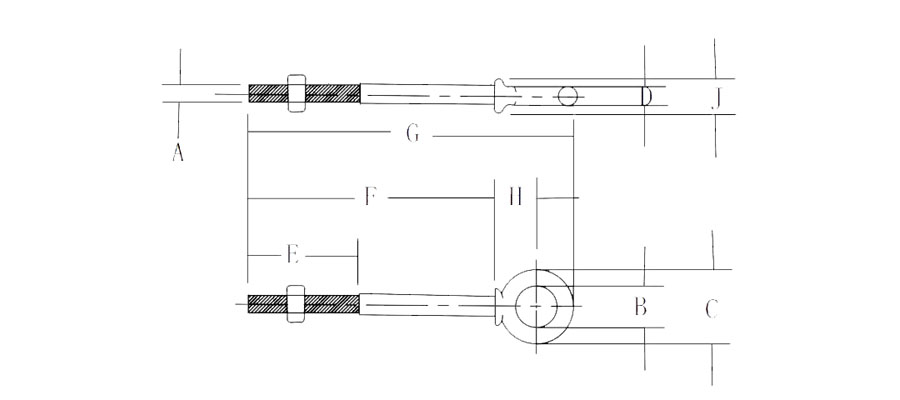

Shank Dia & Length (in) WLL (lbs) Weight per 100 (lbs) Dimensions (in)
A B C D E F G H J
1/4 x 2 500 6.6 0.25 0.5 0.88 0.19 1.5 2 2.94 0.5 0.47
1/4 x 4 500 9.1 0.25 0.5 0.88 0.19 2.5 4 4.94 0.5 0.47
5/16 x 2 1/4 800 12.5 0.31 0.62 1.12 0.25 1.5 2.25 3.5 0.69 0.56
5/16 x 4 1/4 800 18.8 0.31 0.62 1.12 0.25 2.5 4.25 5.5 0.69 0.56
3/8 x 2 1/2 1200 21.4 0.38 0.75 1.38 0.31 1.5 2.5 3.97 0.78 0.66
3/8 x 4 1/2 1200 25.3 0.38 0.75 1.38 0.31 2.5 4.5 5.97 0.78 0.66
1/2 x 3 1/4 2200 42.6 0.5 1 1.75 0.38 1.5 3.25 5.12 1 0.91
1/2 x 6 2200 56.8 0.5 1 1.75 0.38 3 6 7.88 1 0.91
5/8 x 4 3500 68.6 0.62 1.25 2.25 0.5 2 4 6.44 1.31 1.12
5/8 x 6 3500 102.4 0.62 1.25 2.25 0.5 3 6 8.44 1.31 1.12
3/4 x 4 1/2 5200 144.5 0.75 1.5 2.75 0.62 2 4.5 7.44 1.56 1.38
3/4 x 6 5200 167.5 0.75 1.5 2.75 0.62 3 6 8.94 1.56 1.38
7/8 x 5 7200 225 0.88 1.75 3.25 0.75 2.5 5 8.46 1.84 1.56
1 x 6 10000 366.3 1 2 3.75 0.88 3 6 9.97 2.09 1.81
1 x 9 10000 422.5 1 2 3.75 0.88 4 9 12.97 2.09 1.81
1 1/4 x 8 15200 650 1.25 2.5 4.5 1 4 8 12.72 2.47 2.28
1 1/4 x 12 15200 795 1.25 2.5 4.5 1 4 12 16.72 2.47 2.28
1 1/2 x 15 21400 1425 1.5 3 5.5 1.25 6 15 20.75 3 2.75
