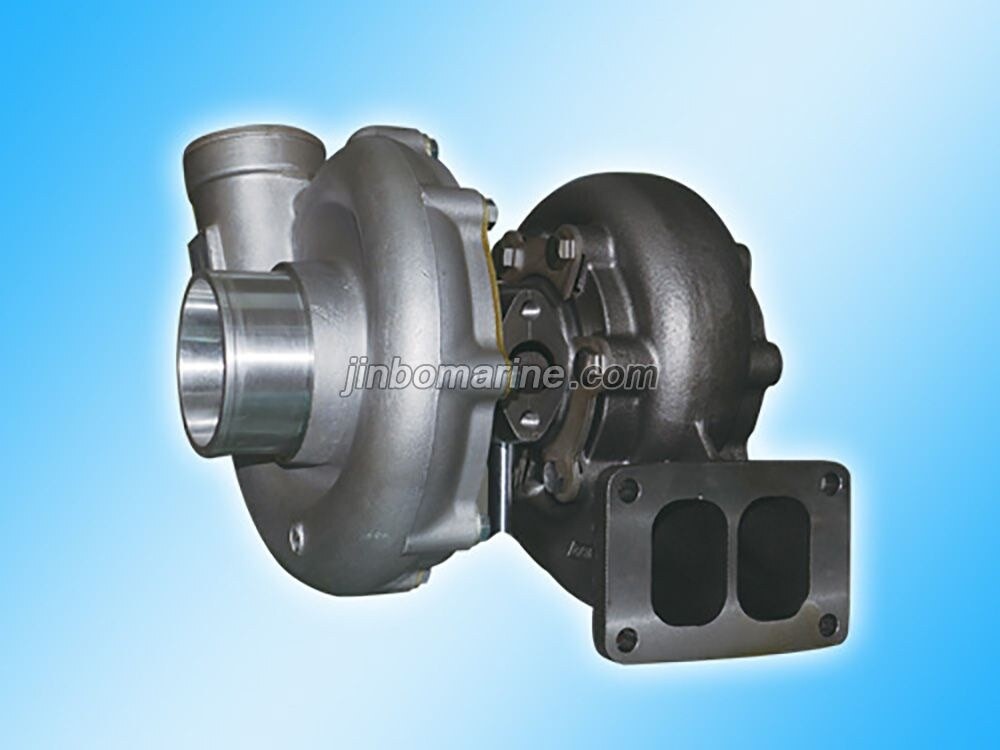

SJ100 Series Marine Turbocharger

Request a Quote Not what you need, please send your RFQs via Email.

Details

China SJ100 Series Marine Turbocharger:

SJ100 series is mainly used in small boat engine, generator and construction machinery. It is developed especially for single unit output power from 260 kw to 400 kw of small-sized medium-speed diesel engine and gas engine.

Product features

1. High efficiency and high pressure ratio compressor.

2. Symmetric double channel pulse turbine housing greatly increases turbine efficiency and reduces exhaust emissions.

3. Water-cooled central housing can be selected for gas engine.

4. Waste-gate design can be selected to meet the requirement of low speed torque and performance of marine engine.

SJ100 Series Marine Turbocharger Technical Specifications

Turbo Models SJ100
Rate speed r/min 85000
Max speed r/min 90000
Pressure ratio 3.6
Air flow kg/s 0.14~0.85
Turbine inlet Temperature 650
Applied engine Diesel engine,Gas engine,Dual fuel engine
Displacement L 10~15
Engine power KW 260~400
Application Marine,Generator,Engineering machinery
