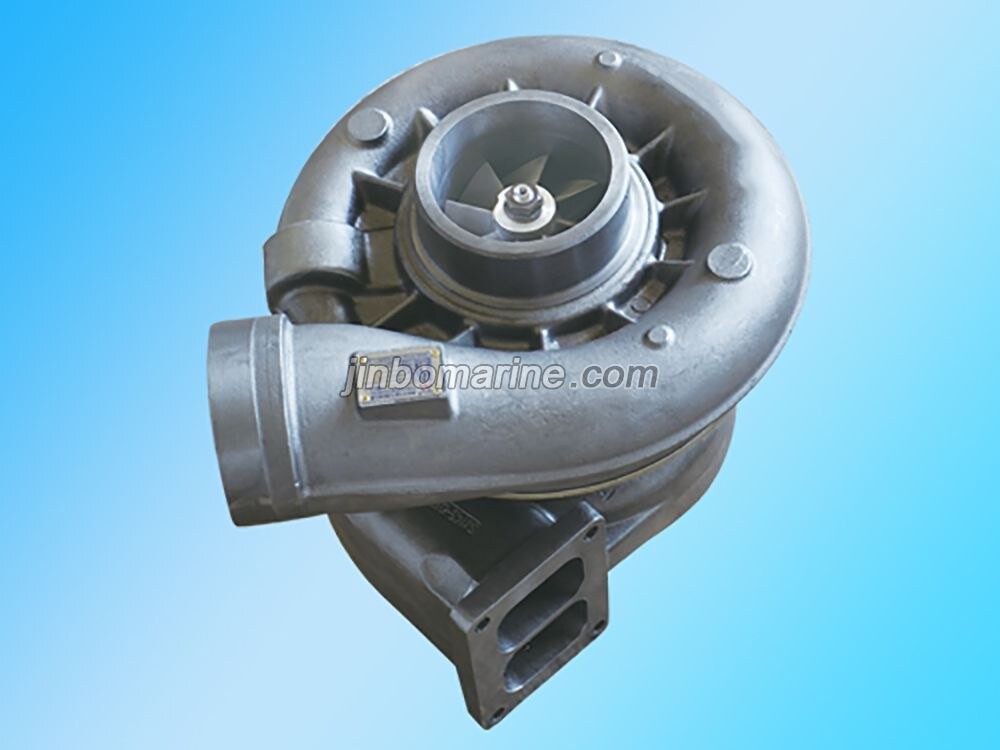

SJ150 Series Marine Turbocharger
- Category:Marine Turbochargers
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China SJ150 Series Marine Turbocharger:
SJ150 series is mainly used in generator and marine engine with max matched power up to 750kw.Multiple combination can meet high power requirements. The performance has been continuously improved through years of application in market. Water-cooled central housing can be selected for gas engine.
Product features
1. Optional milled compressor wheel for higher pressure ratio and efficiency engine.
2. Various compress proposals can meet more matching requirements.
3. Wide flow, high efficiency, high pressure ratio and symmetric double channel turbine housing can meet higher matching requirement.
SJ150 Series Marine Turbocharger Technical Specifications
| Turbo models | SJ150-1 | SJ150-2 | |
| Rate speed | r/min | 67000 | 67000 |
| Max speed | r/min | 70000 | 72000 |
| Pressure ratio | 4.0 | 4.0 | |
| Air flow | kg/s | 0.4~1.3 | 0.6~1.5 |
| Turbine inlet Temperature | ℃ | 650 | |
| Applied engine | Diesel engine,Gas engine,Dual full engine | ||
| Displacement | L | ||
| Engine power | KW | ||
| Application | Marine,Generator,Engineering machinery | ||
