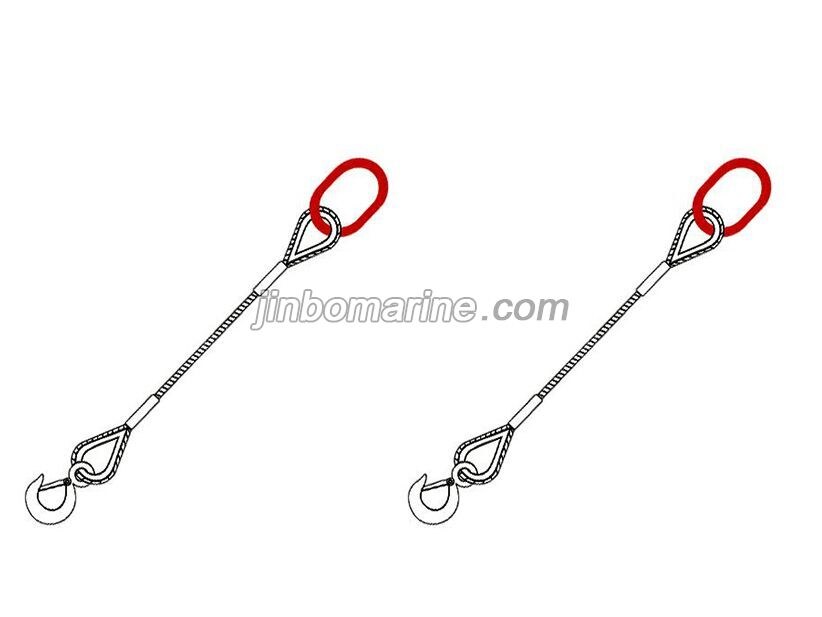

Slingle leg spliced wire rope sling for sale

  • Category:Chain Sling
  • Material:Galvanized Steel Wire Rope
  • Standards:GB/T16271-1996.
  • Packing Details:Standard Export Packaging
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

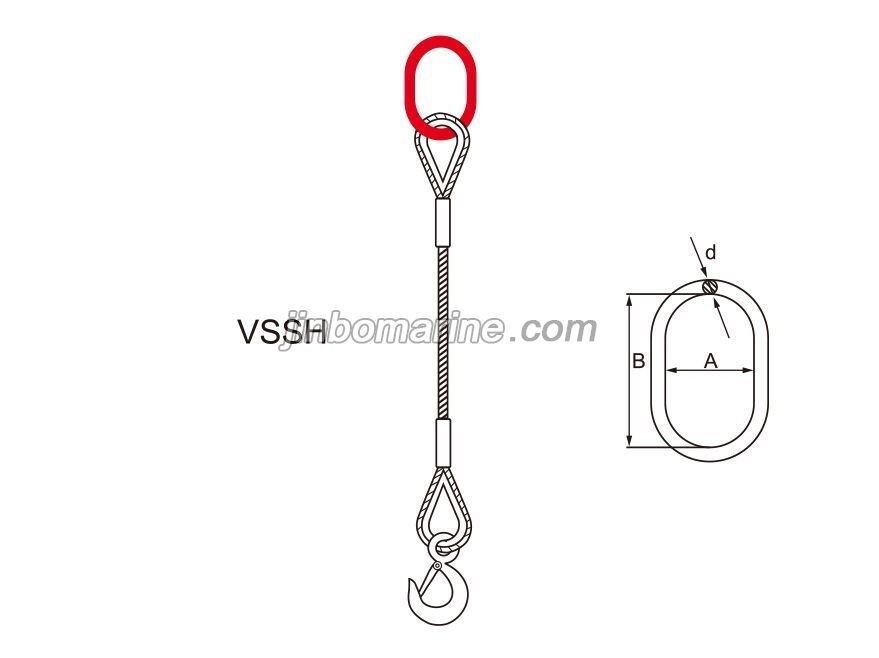

China Slingle leg spliced wire rope sling for sale:

VC----

Whole set of spliced wire rope sling

S----

Sling legs (S-Single leg, D-Double legs, F-four legs)

H----

Fittings (H-hook)

06---

Steel Wire Rope Diameter

L----

Effective length of steel wire rope

The specification of the steel wire in the form with the working load is : 6*37+FC-1670;

Different construction rope with different working load, we can calculate the working load of the steel wire rope construction that the customer required.

According to the Standard GB/T16271-1996.

Producs type Dia of rope(d)(mm) Working load limit Approx.eye
Ength A
(mm)
FC IWR (FC)kN (IWR)kN
VDF06 VDW06 6 2.7 2.9 180
VDF07 VDW07 7 3.6 3.9 190
VDF08 VDW08 8 4.7 5.1 210
VDF09 VDW09 9 6 6.5 230
VDF10 VDW10 10 7.4 8 230
VDF11 VDW11 11 8.9 9.7 250
VDF12 VDW12 12 11 11.5 260
VDF13 VDW13 13 12 14 260
VDF14 VDW14 14 14 16 280
VDF16 VDW16 16 19 20 320
VDF18 VDW18 18 24 26 360
VDF20 VDW20 20 30 32 400
VDF22 VDW22 22 36 39 440
VDF24 VDW24 24 42 46 480
VDF26 VDW26 26 50 54 520
VDF28 VDW28 28 58 63 560
VDF30 VDW30 30 66 72 600
VDF32 VDW32 32 76 82 640
VDF34 VDW34 34 85 92 680
VDF36 VDW36 36 96 104 720
VDF38 VDW38 38 106 115 760
VDF40 VDW40 40 118 128 800
VDF42 VDW42 42 130 141 840
VDF44 VDW44 44 143 155 880
VDF46 VDW46 46 156 169 920
VDF48 VDW48 48 170 183 960
VDF50 VDW50 50 185 200 1000
VDF52 VDW52 52 200 216 1040
VDF54 VDW54 54 215 233 1080
VDF56 VDW56 56 231 251 1120
VDF58 VDW58 58 248 269 1160
VDF60 VDW60 60 266 287 1200
VDF62 VDW62 62 241 286 1240
VDF64 VDW64 64 257 304 1280
VDF66 VDW66 66 274 324 1320
VDF68 VDW68 68 291 344 1360
VDF70 VDW70 70 308 365 1400
VDF72 VDW72 72 326 386 1440
VDF74 VDW74 74 344 407 1480
VDF76 VDW76 76 363 430 1520
VDF78 VDW78 78 383 453 1560
VDF80 VDW80 80 402 476 1600
VDF82 VDW82 82 423 500 1640
VDF84 VDW84 84 444 525 1680
VDF86 VDW86 86 465 550 1720
VDF88 VDW88 88 487 576 1760
VDF90 VDW90 90 509 603 1800
VDF92 VDW92 92 532 630 1840
VDF94 VDW94 94 556 657 1880
VDF96 VDW96 96 579 686 1920
VDF98 VDW98 98 604 714 1960
VDF100 VDW100 100 629 744 2000
VDF102 VDW102 102 654 774 2040
VDF104 VDW104 104 680 805 2080
VDF106 VDW106 106 707 836 2120
VDF108 VDW108 108 733 868 2160
VDF110 VDW110 110 761 900 2200
VDF112 VDW112 112 789 933 2240
VDF114 VDW114 114 817 967 2280
VDF116 VDW116 116 846 1001 2320
VDF118 VDW118 118 876 1036 2360
VDF120 VDW120 120 905 1071 2400
VDF122 VDW122 122 1006 1252 2440
VDF124 VDW124 124 1039 1294 2480
VDF126 VDW126 126 1074 1336 2520
VDF128 VDW128 128 1108 1378 2560
VDF130 VDW130 130 1143 1422 2600
VDF132 VDW132 132 1179 1467 2640
VDF138 VDW138 138 1288 1605 2760
VDF140 VDW140 140 1326 1650 2800
VDF142 VDW142 142 1363 1695 2840
VDF144 VDW144 144 1402 1740 2880
VDF146 VDW146 146 1441 1800 2920
VDF148 VDW148 148 1482 1845 2960
VDF150 VDW150 150 1515 1890 3000
