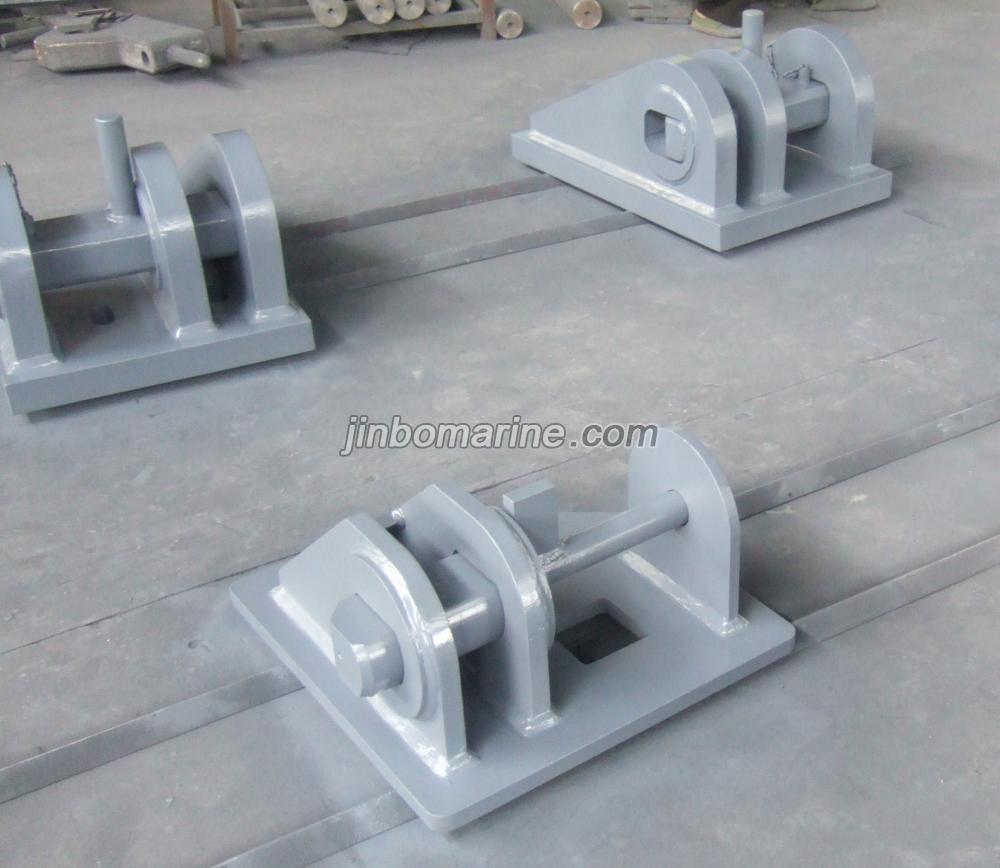

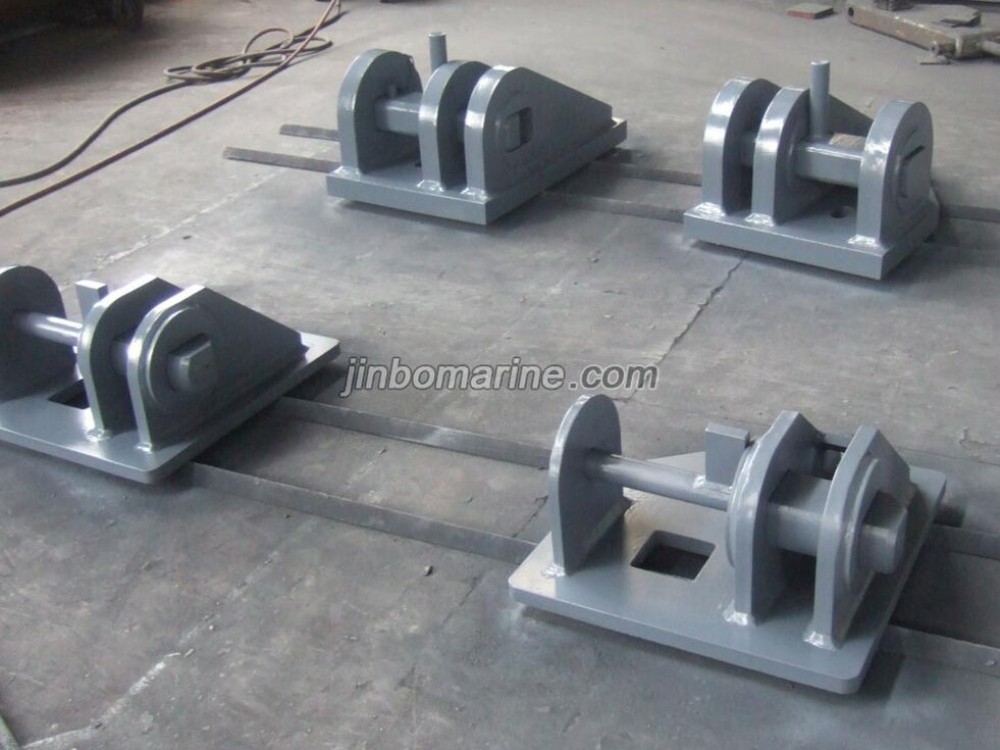

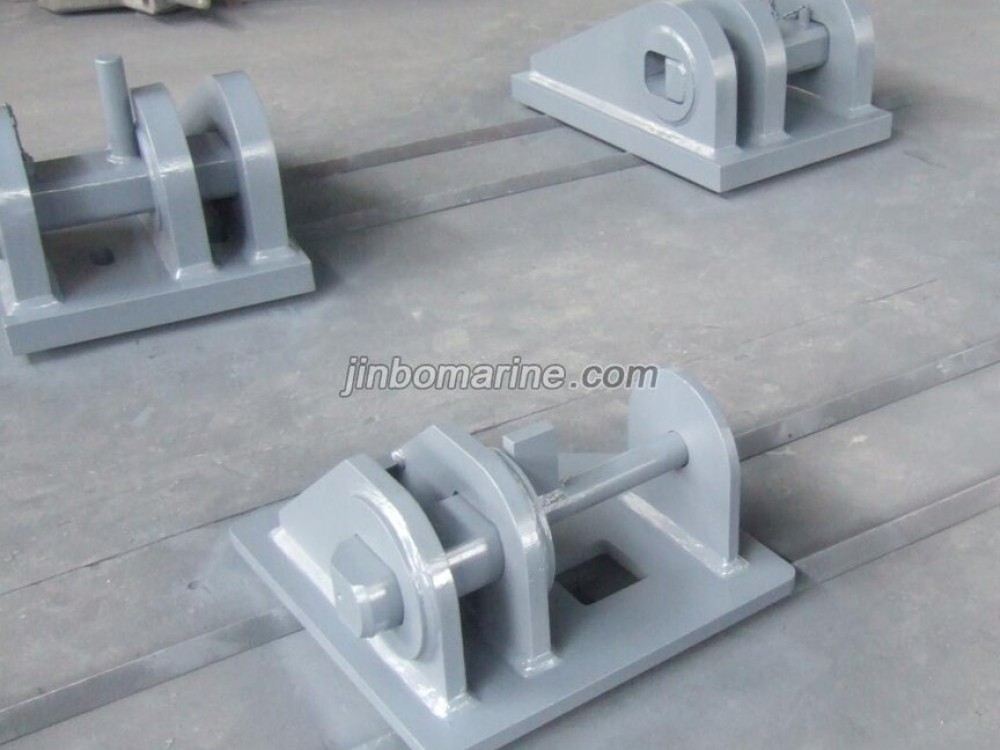

Smith Towing Bracket
- Category:Marine Towing and Mooring Bracket
- Material:Cast iron, cast steel.
- Certificate:ABS , BV,, CCS, mill certificate etc.
- Delivery Time:30 days
- Packing Details:wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Smith towing bracket is welded to the deck and is rated to withstand the breaking load of the chain being used.
The bracket works using a large sliding pin which receives the towing chain and locks it quickly and securely into place. On request, smith towing bracket can be supplied with type approval from Lloyds, ABS, BV or DNV.
For Emergency Towing System and Single Point Mooring.
Weld insert on Deck.Weld on Deck as request.
Feature:
1.Excellent quality and competitive price.
2.Durable, long lifetime.
3.Standard or customerized.
|

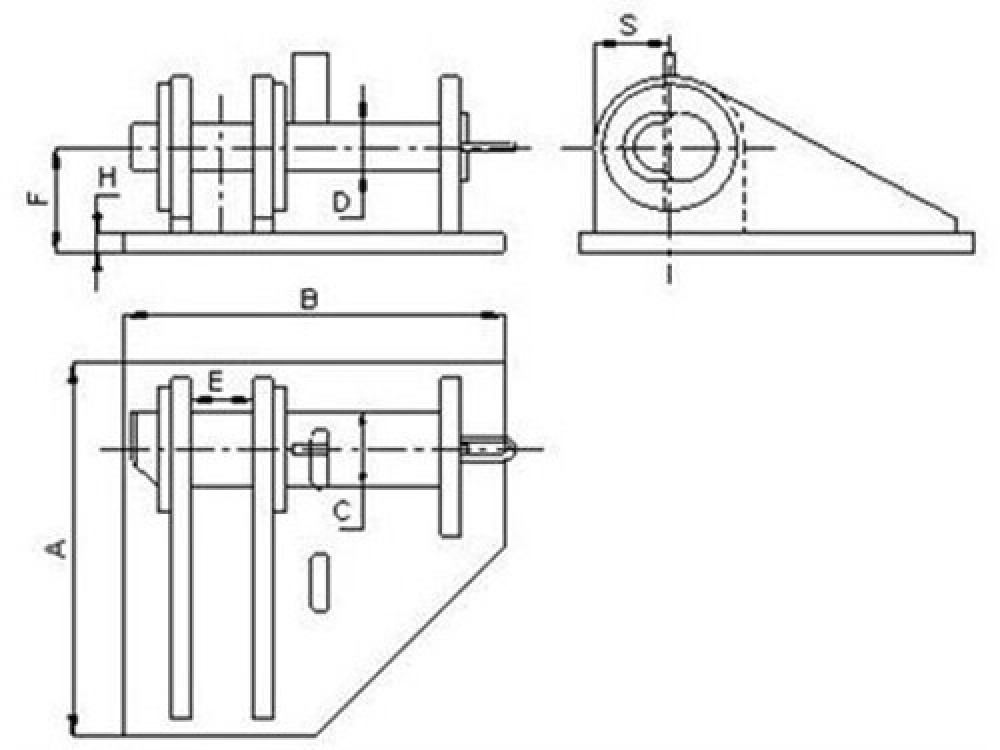

Nominal |
Dimensions(mm) |
Mass(kg) |
SWL(KN) |
MBL(KN) |
|||||||
|
A |
B |
C |
D |
E |
F |
H |
S |
||||
|
54 |
720 |
650 |
115 |
75 |
100 |
205 |
30 |
118 |
195 |
1000 |
2000 |
|
76 |
900 |
800 |
160 |
110 |
150 |
240 |
30 |
170 |
390 |
2000 |
4000 |
|
84 |
1018 |
905 |
170 |
120 |
160 |
273 |
35 |
210 |
560 |
2500 |
5000 |
|
95 |
1120 |
940 |
195 |
135 |
170 |
290 |
40 |
276 |
760 |
3000 |
6570 |
Also we can supply other type chain stopper.
we can supply:
JIS F2002-1976 cast iron Bar Type Chain Stopper
JIS F2015-1987 Cast Steel Bar Type Chain Stopper
JIS F2023-1976 Cast Steel Bar Type Chain Stopper
JIS F-2031 Pawl Type Chain Stopper
JIS F-2032 Roller Pawl Type Chain Stopper
JIS F-2033 Roller Bar Type Chain Stoppertype B
OCIMF Type single point mooring Chain Stopper
CB286-84 cast steel lever chain stopper
GB/T 3844-2000 Marine roller lever chain stopper
GB/T 178-96 spiral type chain stopper/ screw type chain stopper
Smith towing bracket for chain stopper
OCIMF Type Towing Bracket
Non-standardchain stopper,we can customized it according to your drawing.
