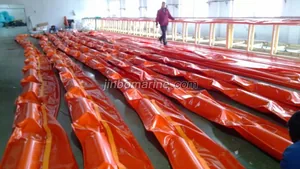

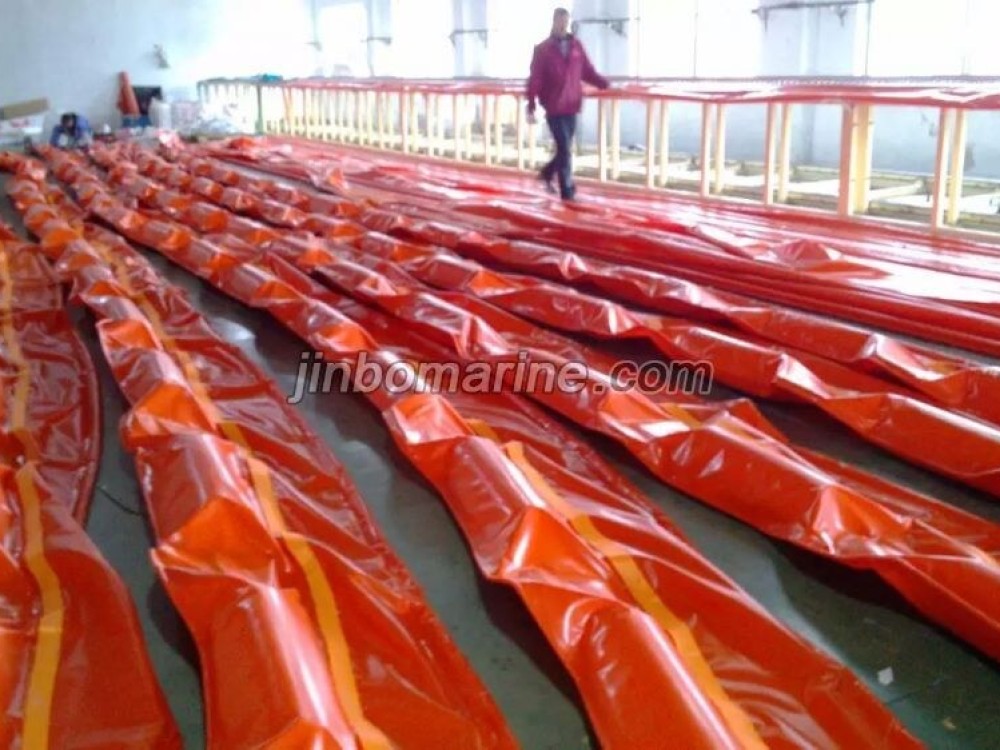

Solid Float PVC Boom
- Category:Oil Spill Dispose Device
- Material:PVC
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Solid float PVC boom
General description
Solid float PVC boom is designed for long duration deployment in the water, it can be quickly deployed and easy to operate, and therefore it has been widely used in rivers, lakes, offshore oil platforms as well as other water areas.
Features
- Made of high-intensity reversible colored PVC fabric, oil and sunlight resistant with long service life.
- Solid float with high reserve buoyancy waves-resistant, stably vertical
- Equipped with supporting lines, reinforce tape and pulling counterweight chain as the longitudinal force component part
- High tension strength, smooth surface, easy to clean.
Main technical data of WGV series solid float boom
|
Type |
Overall height(mm) |
Unit length(m) |
Height above water(mm) |
Submerged depth(mm) |
Pull force(kn) |
Wave resistance(m) |
Currents resistance(knot) |
Wind resistance (m/s) |
Pulling speed(knot) |
Working temperature© |
|
WGV750 |
750 |
20 |
220 |
430 |
130 |
1.3 |
2.2 |
10 |
3-6 |
-30-60 |
|
WGV900 |
900 |
20 |
340 |
470 |
145 |
2.0 |
3.0 |
15 |
3-6 |
-30-60 |
|
WGV1100 |
1100 |
20 |
400 |
530 |
160 |
2.5 |
3.2 |
16 |
4-7 |
-30-60 |
|
WGV1300 |
1300 |
20 |
450 |
650 |
170 |
3.0 |
3.5 |
18 |
4-8 |
-30-60 |
|
WGV2000 |
2000 |
20 |
550 |
1150 |
190 |
3.5 |
4.0 |
20 |
4-9 |
-30-60 |
