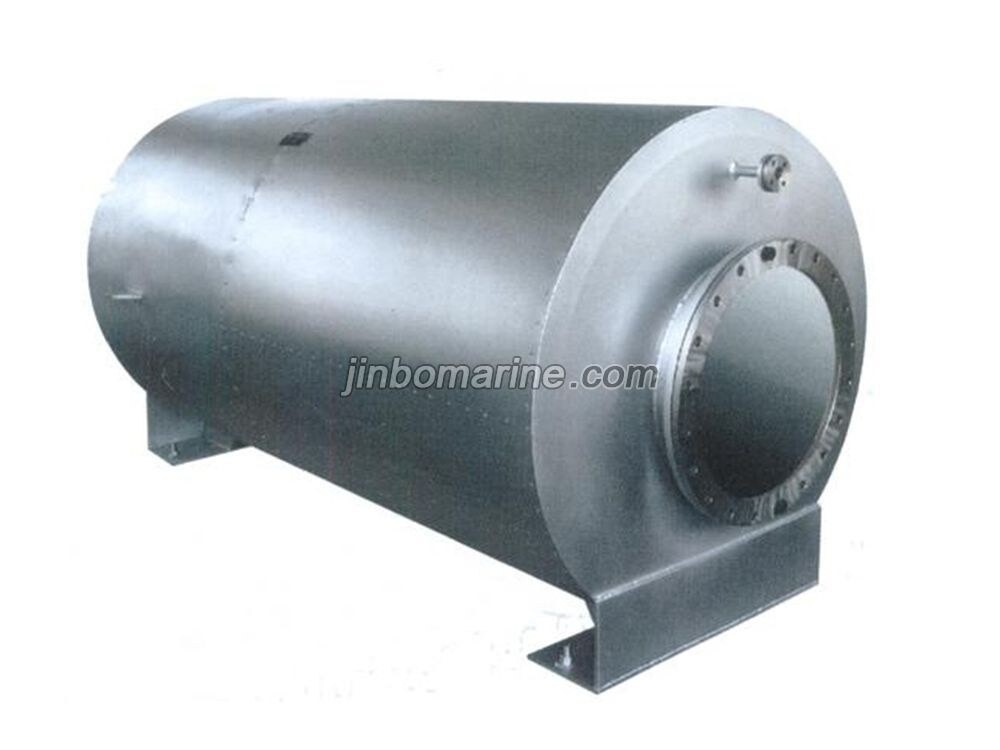

Spark Trap Silencer with Sprinkler System
- Category:Marine Silencer
- Material:Carbon Steel
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Spark Trap Silencer with Sprinkler System:
The Spark Trap Silencer with Sprinkler System is used to arrest the spark and muffle in the gas exhaust pipe line of main engine and auxiliary engine and boiler for the ships which carry crude oil, petroleum oil and chemical liquid.

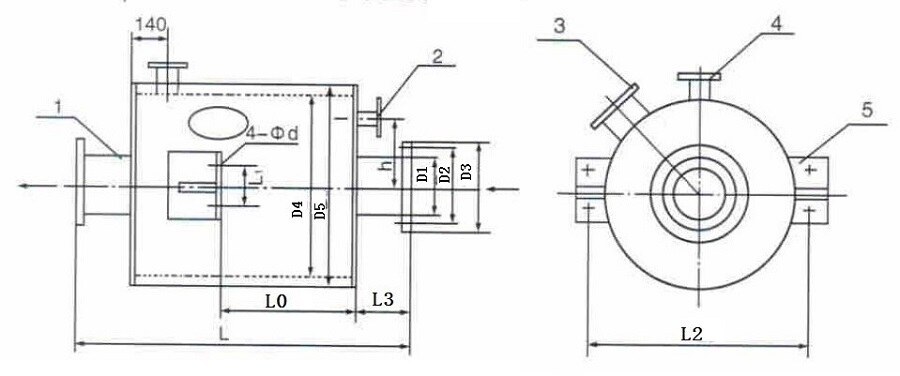

Main Parts:
1-Gas Exhaust Outlet
2-Water (Ash) Outlet DN20
3-Sight Hole
4-Joint for Sprinkler
5-Support
Main Size List(mm):
| Model No | DN | D1 | D2 | D3 | D4 | D5 | L | L0 | L1 | L2 | L3 | d | h |
| DC454-65 | 65 | 76 | 123 | 155 | 200 | 280 | 900 | — | — | — | 160 | 15 | 44 |
| DC454-80 | 80 | 89 | 138 | 170 | 220 | 300 | 1100 | — | — | — | 160 | 15 | 57 |
| DC454-100 | 100 | 108 | 158 | 190 | 320 | 400 | 1210 | — | — | — | 180 | 15 | 80 |
| DC454-125 | 150 | 159 | 208 | 240 | 390 | 470 | 1325 | 700 | 90 | 500 | 180 | 15 | 120 |
| DC454-175 | 175 | 186 | 238 | 270 | 470 | 550 | 1480 | 800 | 90 | 580 | 180 | 15 | 130 |
| DC454-200 | 200 | 216 | 264 | 295 | 510 | 590 | 1540 | 850 | 90 | 630 | 180 | 15 | 170 |
| DC454-250 | 250 | 266 | 327 | 365 | 710 | 790 | 1600 | 900 | 110 | 850 | 200 | 15 | 200 |
| DC454-300 | 300 | 316 | 386 | 430 | 760 | 840 | 1710 | 1100 | 110 | 900 | 200 | 21 | 250 |
| DC454-350 | 350 | 366 | 436 | 480 | 840 | 920 | 1890 | 1300 | 110 | 980 | 200 | 21 | 290 |
| DC454-400 | 400 | 416 | 486 | 530 | 960 | 1040 | 2100 | 1400 | 110 | 1100 | 200 | 21 | 300 |
