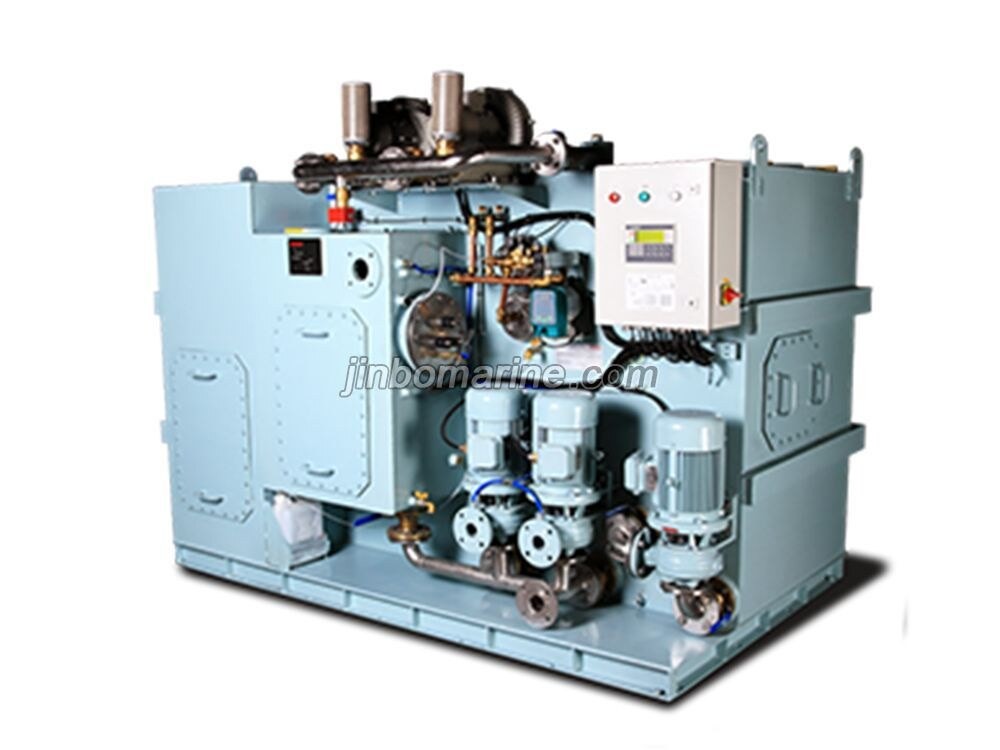

ST-70U 100 Persons Sewage Treatment Plant
- Category:Sewage Treatment Plant
- Certificate:CCS, BV, ABS, GL，LR, NK
- Packing Details:Standard Export Packaging
- Delivery Time:30days
- Standards:IMO Resolution MEPC.227(64).
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
ST-70U 100 Persons Sewage Treatment Plant：
This sewage treatment plant suitable for 100 persons ship and platform.
Biological treatment of Sewage Treatment Plant can meet both ship and offshore platform requirements. The aerating fans are used provide sufficient oxygen for the growth of biological and chemical bacteria and the disintegration of organisms. Nano filtration and ultraviolet sterilizer are combined to remove suspended solids and kill coli, virus and other harmful bacteria.
IMO Resolution MEPC.227(64).
Features:
1. HMI with PLC controller for automatic control process
2. Compact design, less installation area
3.Program control with macerating device, secures no clogging under fully sewage macerating
4.Vacuum collection device option
Technical Data:
| Model |
Capacity person |
Hydraulic Load m3/d |
Organic Load Kg/d |
Dimension LxWxH(mm) |
Weight kg |
Operation Weight Kg |
| ST-20U | 28 | 2 | 1.5 | 1825x900x2000 | 850 | 3200 |
| ST-30U | 42 | 3 | 2 | 1500x1250x2000 | 950 | 4400 |
| ST-50U | 70 | 5 | 3.3 | 2500x1500x2000 | 1500 | 6000 |
| ST-70U | 100 | 7 | 4.8 | 3000x1500x2000 | 1800 | 7800 |
| ST-100U | 150 | 11 | 7.2 | 3100x2000x2000 | 2500 | 11500 |
| ST-140U | 200 | 14 | 9.5 | 3800x2000x2000 | 2850 | 14000 |
| ST-200U | 300 | 21 | 14.3 | 4600x1900x2600 | 3700 | 20000 |
| ST-300U | 420 | 30 | 20 | 4500x4000x2600 | 7200 | 30000 |
