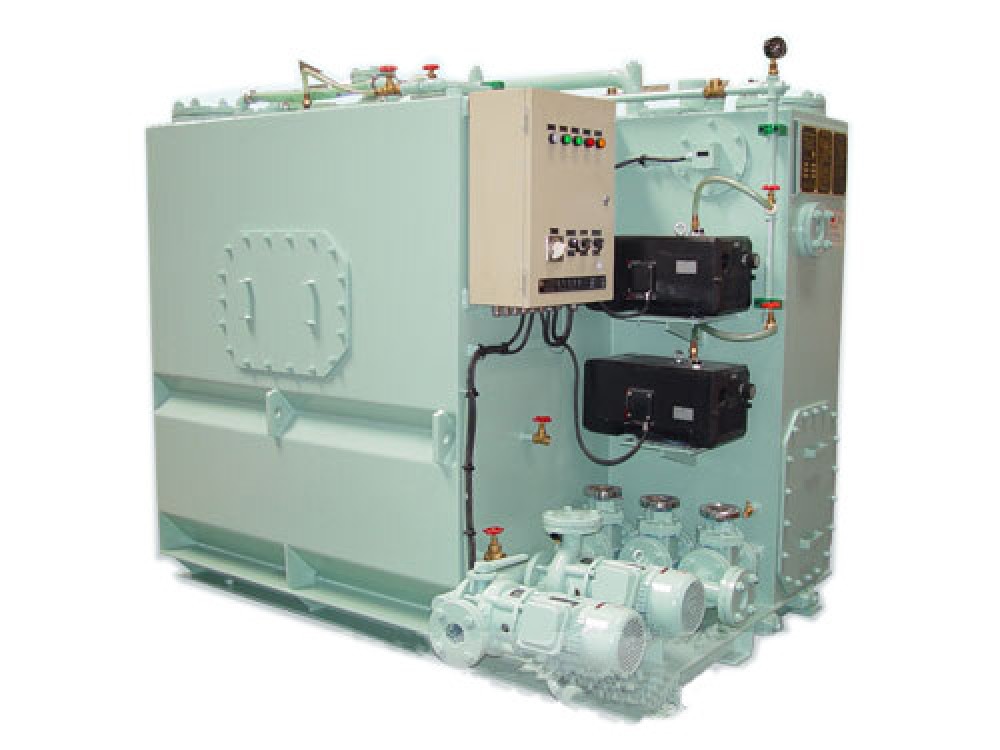

STD Marine Sewage Treatment Plant

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description

The series products of sewage treatment plant in our factory, STD marine sewage treatment plant are bases on design and innovation by ourselves, meeting the requirements of the latest regulations and rules. At present, the lending technology of membrane reactor is used in the products. The membrane reactor consists of membrane component and bioreactor. The component has high effective by two steps of separator. The treated water from plant is complying

With the standard of regulation IMO MEPC. 159(55).

The serial of products has been passed the test of type approval CCS, EC, ABS, USCG and so on classification.

Main Technical Data

BOD5for the discharged water: ≤25mg/L

COD for the discharge water : ≤125mg/L

Draining water suspended solid: ≤35mg/L

Draining water coliform : ≤100/100mL

Draining water PH value:6~8.5

Draining water chlorine residual: ≤0.5mg/L

Suitable to be applied in ships and vessels with crew 15~300 persons and offshore platforms.

Main Technical Data


model

capcity
m3/d

A

B

C

D

E

F

G

H

J

K

L

M

N

power
kw

weight
kg

STD1 1.05 1500 1120 1150 - 900 300 450 200 100 355 130 250 - 1.94 1030
STD2 2.1 2000 1250 1152 80 1020 250 750 200 108 361 294 416 604 1.94 1100
STD3 3.15 2000 1250 1606 80 1020 250 750 200 308 256 294 416 604 2.15 1775
STD4 4.2 2225 1400 1600 87 1170 350 760 200 338 356 412 406 634 2.15 1965
STD5 5.25 2700 1600 1600 87 1370 350 1000 200 324 356 414 406 634 2.8 2075
STD6 6.3 2700 1600 1700 130 1370 350 1000 200 324 401 414 406 620 2.8 2135
STD8 8.4 3000 1800 1700 180 1570 400 1100 300 444 401 524 526 740 3.3 2650
STD10 10.5 3400 2000 1700 180 1570 400 1100 300 524 401 724 606 820 3.3 2975
STD15 15.75 3700 3010 2000 2500 2300 370 740 200 594 300 598 606 1080 5.11 3900
STD20 21 4620 3010 2000 2500 2300 385 770 200 688 435 620 750 1080 5.11 4117.8
