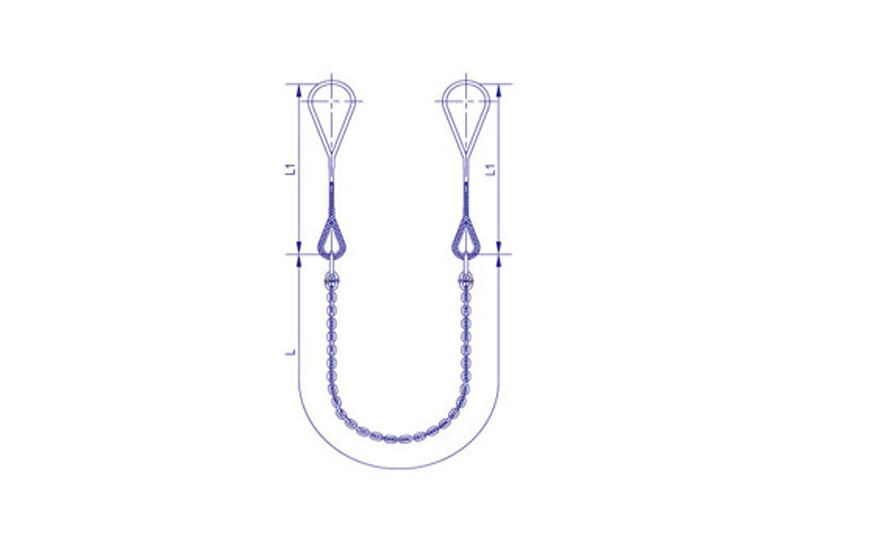

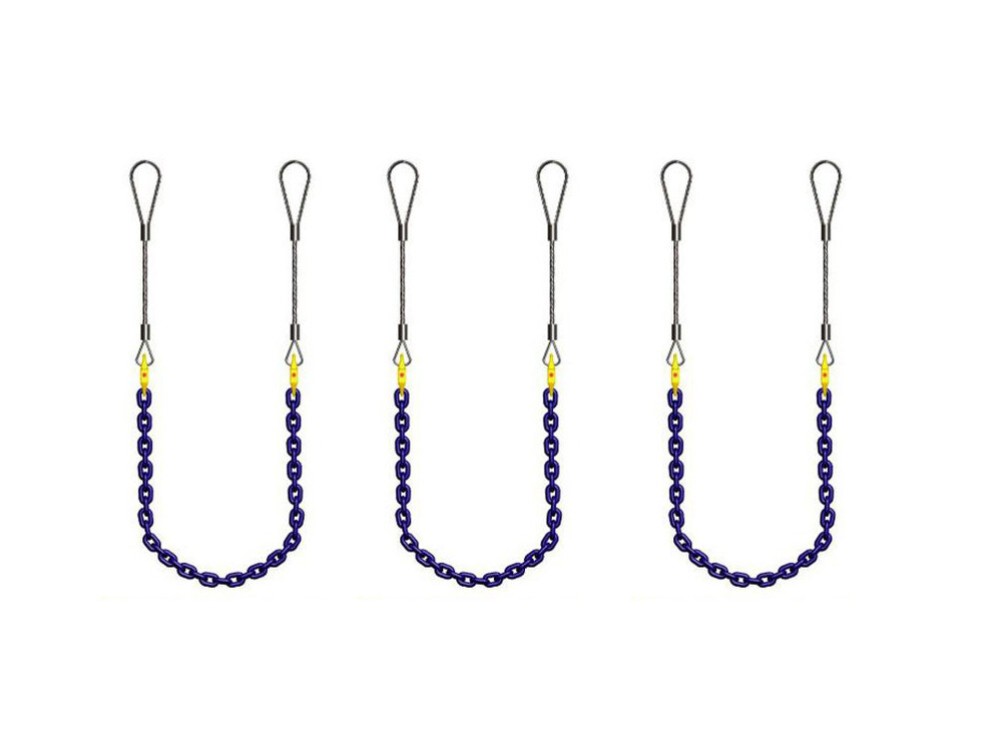

Steel Plate Lifting Chain Sling
- Category:Chain Sling
- Material:High Quality Alloy Steel
- Standards:GB/T20652
- Certificate:CCS
- Packing Details:Standard Export Packaging
- Delivery Time:10 days
- Supply Ability:300 pcs/week
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description
The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8)
The wipe rope uses the chain link with the shackle
The length of pressed wire rope sling=50times of the dia of wire rope.
Technical Data
| Model |
Diamerter （mm） |
WLL(t) |
Wire rope weight (kg) |
Chain weight （kg） |
||
| chain | Wire rope | Room temperature | High temperature | |||
| YLSP-6 | 6 | 10 | 2 | 1 | 0.6 | 0.79 |
| YLSP-8 | 8 | 13 | 3 | 1.5 | 1.1 | 1.38 |
| YLSP-10 | 10 | 16 | 5 | 2.5 | 1.8 | 2.2 |
| YLSP-12 | 12 | 20 | 7 | 3.5 | 3.2 | 3.1 |
| YLSP-14 | 14 | 24 | 10 | 5 | 5.2 | 4.13 |
| YLSP-16 | 16 | 26 | 12 | 6 | 6.4 | 4.63 |
| YLSP-18 | 18 | 28 | 16 | 8 | 8.78 | 6.85 |
| YLSP-20 | 20 | 32 | 20 | 10 | 11.1 | 8.6 |
| YLSP-22 | 22 | 36 | 24 | 12 | 15.3 | 10.2 |
| YLSP-24 | 24 | 40 | 28 | 14 | 20.3 | 12.78 |
| YLSP-26 | 26 | 44 | 34 | 17 | 27.7 | 14.87 |
| YLSP-30 | 30 | 48 | 44 | 22 | 35.2 | 19.6 |
| YLSP-34 | 34 | 56 | 72 | 36 | 46.5 | 22.7 |
