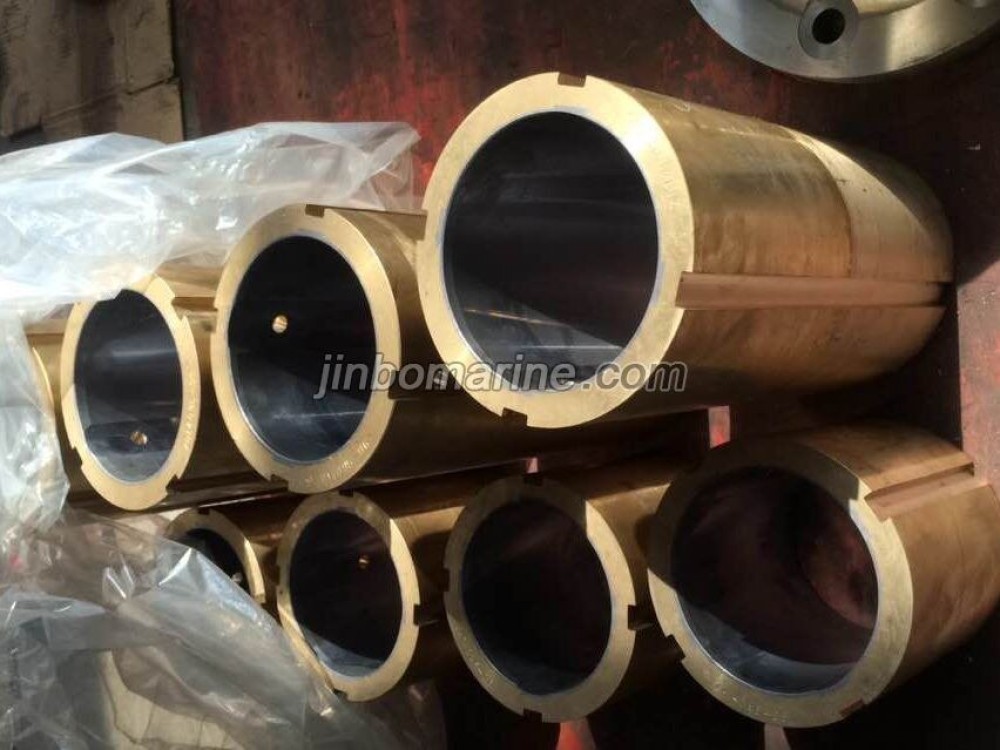

Stern Tube White Metal Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Stern Tube White Metal Bearing:

Whit Metal Stern Tube Bush is suitable for vessels of different sizes whose lubricating medium is oil.

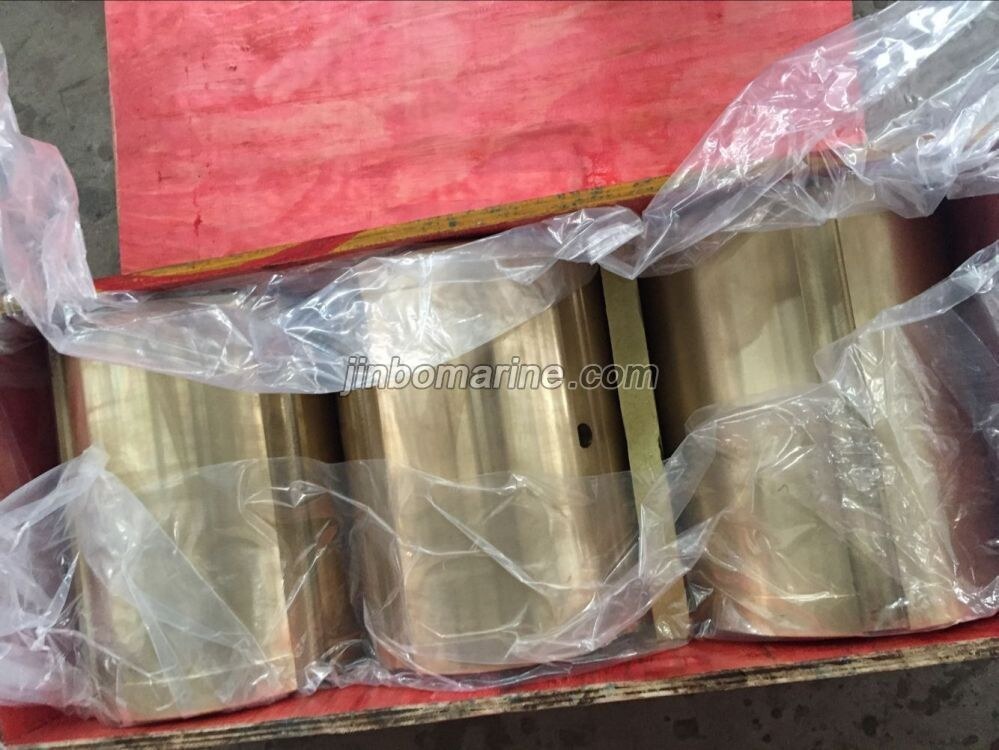

Stern Tube White Metal FWD Bearing


d L L1 D1 D2 Weight (kg)
A Type B Type A Type B Type A Type B Type
68 90 100 98 3 4
78 100 120 124 5 6
88 110 135 124 6 7
98 125 150 80 134 135 8 9
108 140 165 75 90 144 145 9 10
118 150 180 80 95 155 156 11 13
128 165 195 90 105 165 166 13 15
138 175 210 95 110 177 178 15 18
148 190 225 100 120 188 190 19 21
156 200 240 105 125 204 205 24 28
166 215 255 115 135 214 215 27 32
176 225 270 120 140 224 225 31 35
186 240 285 125 150 235 236 35 40
196 250 300 135 160 245 246 40 45
215 275 330 155 175 264 266 45 55
235 300 360 160 190 286 288 57 68
245 315 375 170 200 302 304 70 83
255 325 390 175 205 313 315 76 91
275 350 420 185 220 336 338 92 111
295 375 450 200 235 358 360 110 130
315 400 480 210 250 378 380 124 148
345 440 525 230 275 408 415 148 176
375 475 570 250 295 442 444 182 220
395 500 600 260 315 468 470 222 266
445 560 680 300 355 522 524 296 356
465 590 710 310 370 543 545 326 392
495 625 750 330 395 578 580 390 468
525 660 800 345 415 608 610 435 528
555 700 840 365 435 638 640 486 583
595 750 900 395 460 680 690 626 750

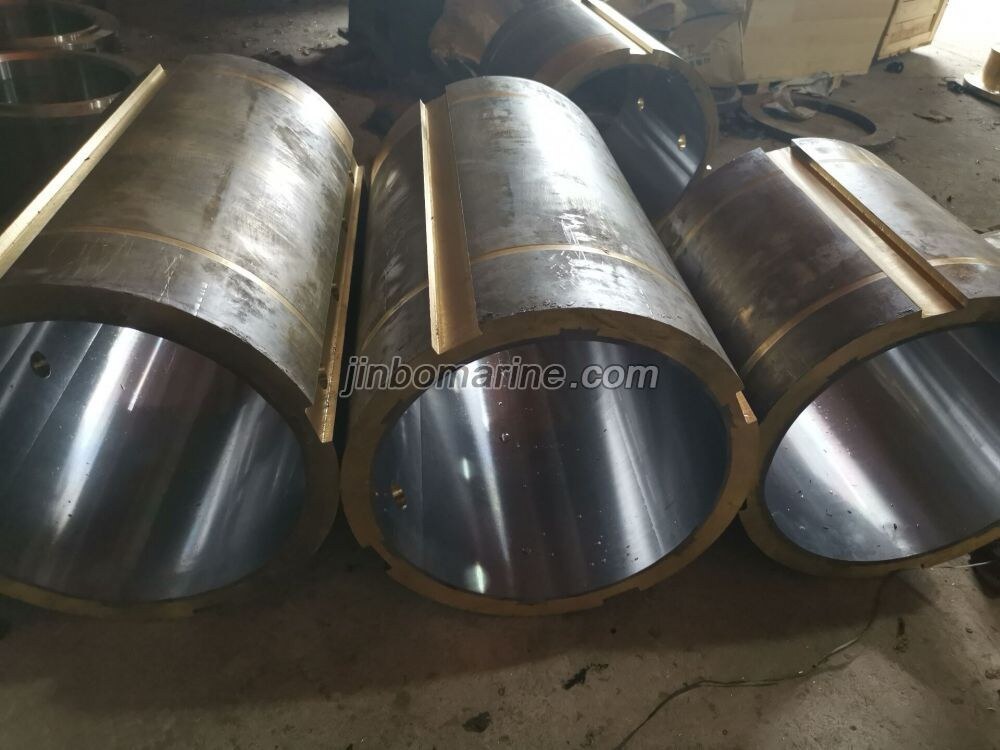

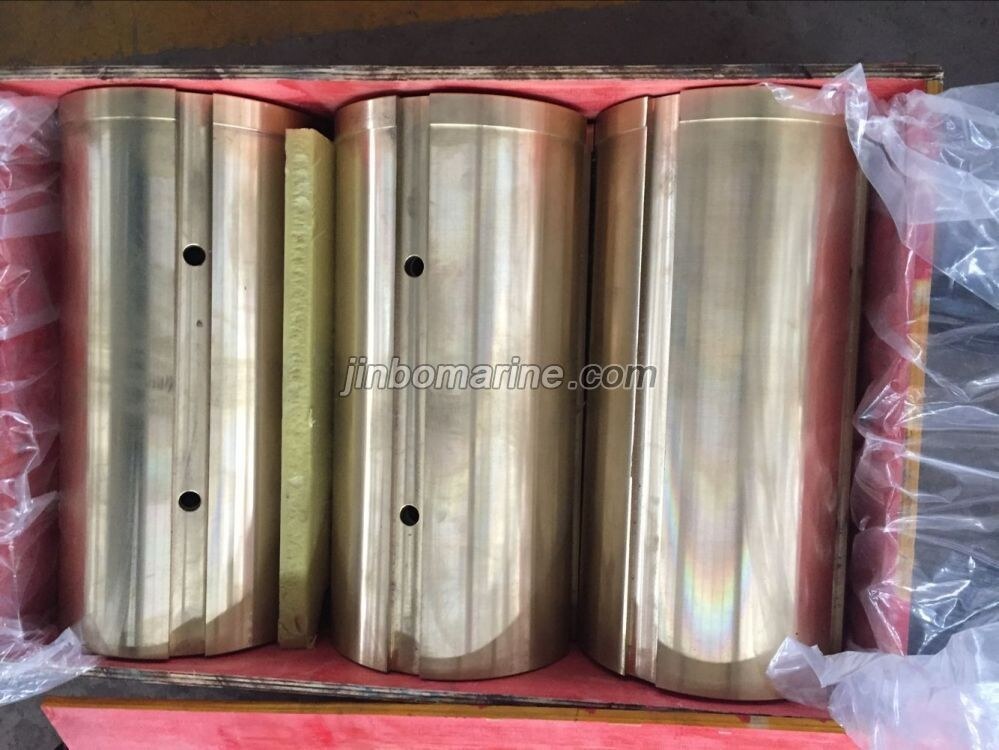

Stern Tube White Metal AFT Bearing:

d L L1 D1 D2 Weight (kg)
A Type B Type A Type B Type A Type B Type
70 175 210 95 110 99 100 6 8
80 200 240 105 125 114 115 10 11
90 220 270 115 140 124 125 12 14
100 250 300 130 155 134 135 14 17
110 280 330 140 170 146 147 18 21
120 300 360 155 185 157 158 22 26
130 330 390 170 200 167 168 24 28
140 350 420 185 220 179 180 31 37
150 380 450 195 235 191 192 38 45
160 400 480 210 250 208 209 50 60
170 420 510 220 265 217 218 55 65
180 450 540 235 280 227 228 60 75
190 480 570 250 295 239 240 70 85
200 500 600 260 310 249 250 80 95
220 550 660 280 340 279 280 115 135
240 600 720 310 370 291 292 120 145
250 620 750 320 385 306 308 140 170
260 650 780 335 400 318 320 155 185
280 700 840 360 430 340 342 185 220
300 750 900 385 460 360 364 220 260
320 800 960 410 490 383 385 250 300
350 880 1050 450 530 414 416 305 360
380 950 1140 480 585 446 448 370 440
400 1000 1200 515 615 474 476 455 550
450 1120 1350 575 690 526 528 570 690
470 1180 140 605 720 548 550 600 790
500 1250 1500 640 765 582 584 780 930
530 1320 1590 675 810 613 615 880 1060
560 1400 1680 715 855 643 645 980 1180
600 1500 1800 765 915 692 695 1260 1515
