Suction Type Skimmer

Request a Quote Not what you need, please send your RFQs via Email.

Details

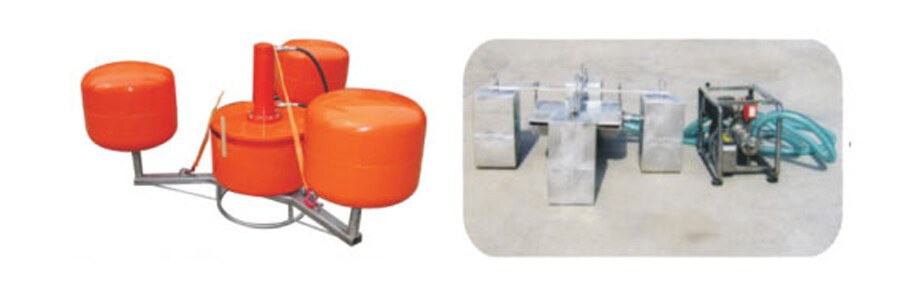

Suction type skimmer

Features

Suction type skimmer with simple structure is one of the most commonly used oil skimmer, which is applicable to recover oil spills with medium and low viscosity in confined water areas allowing wave height lower than 0.5 meter. It has many advantages, such as small dimension, light weighted, easy maintenance, high recovery efficiency, easy replacement of skimmer components.

Vertical height of pump height is above and beyond 10 meters

It can adjust the pump-out slots to different levers.

It is made of stainless steel providing a long service time.

Technical data

Maximum oil reclaim rate

5-60 t/h

Power

1.5-20kw

Vertical height of suction lift

8-10m

Horizontal length of suction lift

10m

Delivery life of oil-well pump

>15m

Length of upper oil suction pipe

10m

Diameter of oil suction pipe

32-100cm

draft

15-50cm or adjustable
