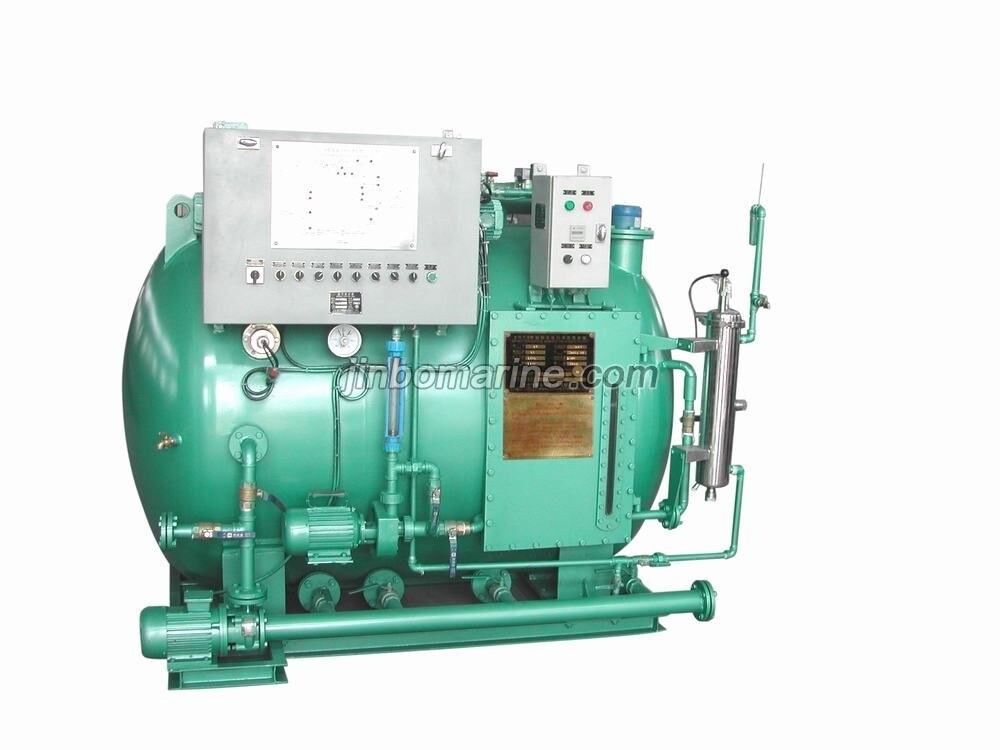

SWCM-400 STP Sewage Treatment Plant
- Category:Sewage Treatment Plant
- Certificate:CCS,GL,BV etc.
- Delivery Time:30days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
This wastewater treater is applicable to treat the sewage water, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO MEPC.159（55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called “grey water” on condition that the “grey water” should be pretreated or should select a bigger capacity model to match with.
Now our equipment meet the new rule IMO Resolution MEPC.227(64).
Technical Data:
|
Specification |
SWCM-400 |
|
|
Treated Load |
Average (L/D) |
30800 |
|
Pinnacle(L/H) |
3850 |
|
|
Organic Load (kgBOD5/d) |
15.4 |
|
|
Rated Capacity (Person) |
400 |
|
|
Max. Capacity (Person) |
440 |
|
|
Voltage |
AC 380V/50HZ/3Φ, AC440V/60HZ/3Φ (or as customers' requirements) |
|
|
Power (kw) |
11 |
|
|
Size (mm) (L*W*H) |
5950*2400*2570 |
|
|
Weight |
Dry (kg) |
4200 |
|
Wet (kg) |
25417 |
|
|
Effluent standard |
BOD5 25mg/L ≯, COD≯125mg/L, TSS≯35mg/L, coliform≯100/100ml, PH6～8.5, CL2≯0.5mg/L |
|
