Swivel Hooks S322
- Category:Hook
- Material:45# Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Similar Name
Latch hook
Safety hook
Lifting hook
Swivel hook
Main Specification
Compromise of Hook and Latch
Forging Technology
45# Steel

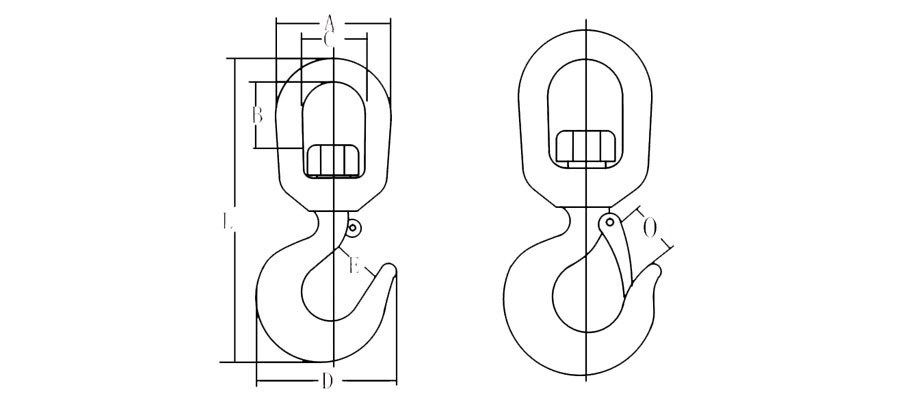

Size Table
| WLL (metric) | DIMENSIONS(in) | Weight (lbs) | ||||||||||
| 322C | 322A | A | B | C | D | E | L | R | S | T | O | |
| 3/4 | 1 | 2 | 15/16 | 1 1/4 | 2 7/8 | 15/16 | 5 9/16 | 4 15/32 | 3/8 | 13/16 | 7/8 | 0.75 |
| 1 | 1 1/2 | 2 1/2 | 1 5/16 | 1 1/2 | 3 3/16 | 1 1/32 | 6 5/8 | 5 9/32 | 1/2 | 13/16 | 31/32 | 1.25 |
| 1 1/2 | 2 | 3 | 1 5/8 | 1 3/4 | 3 5/8 | 1 1/16 | 7 5/8 | 6 1/64 | 5/8 | 27/32 | 1 | 2.25 |
| 2 | 3 | 3 | 1 9/16 | 1 3/4 | 4 3/32 | 1 7/32 | 8 1/8 | 6 3/8 | 5/8 | 1 3/16 | 1 1/8 | 2.57 |
| 3 | Feb-41 | 3 1/2 | 1 3/4 | 2 | 4 15/16 | 1 1/2 | 9 19/32 | 7 13/32 | 3/4 | 1 3/8 | 1 11/32 | 4.75 |
| 5 | 7 | 4 1/2 | 2 5/16 | 2 1/2 | 6 1/2 | 1 7/8 | 12 13/32 | 9 19/32 | 1 | 1 25/32 | 1 11/16 | 10.29 |
| 7 1/2 | 11 | 5 | 2 3/8 | 2 3/4 | 7 9/16 | 2 1/4 | 11 1/8 | 11 1/8 | 1 1/8 | 2 1/8 | 2 1/16 | 16.25 |
