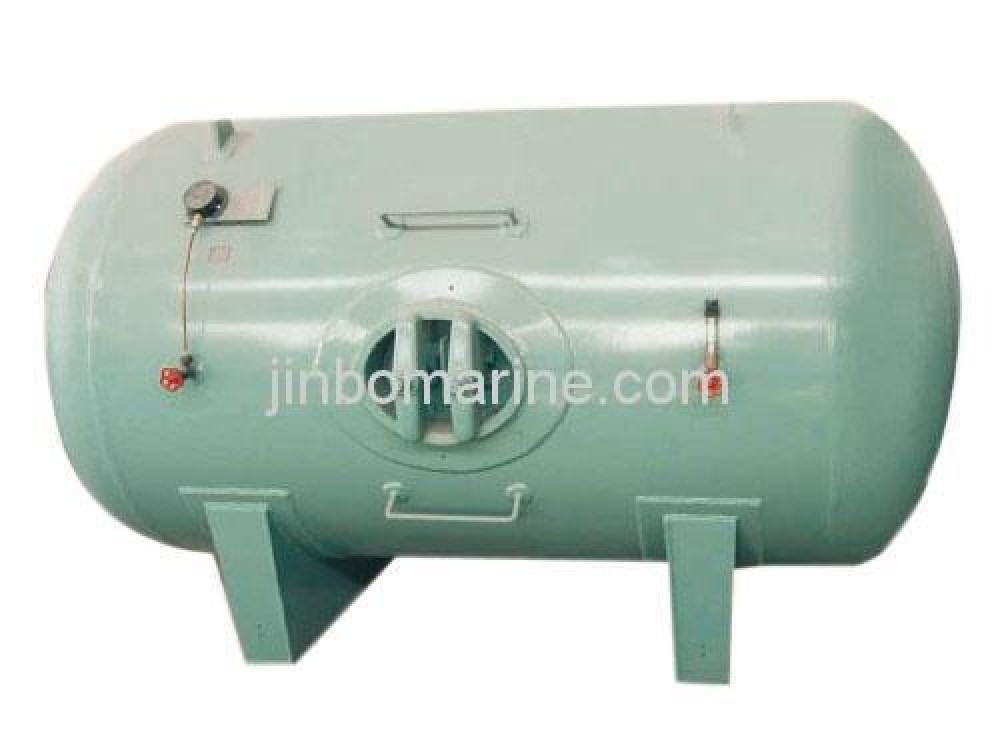

Type B Horizontal Marine Air Receiver

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Type B Horizontal Marine Air Receiver:

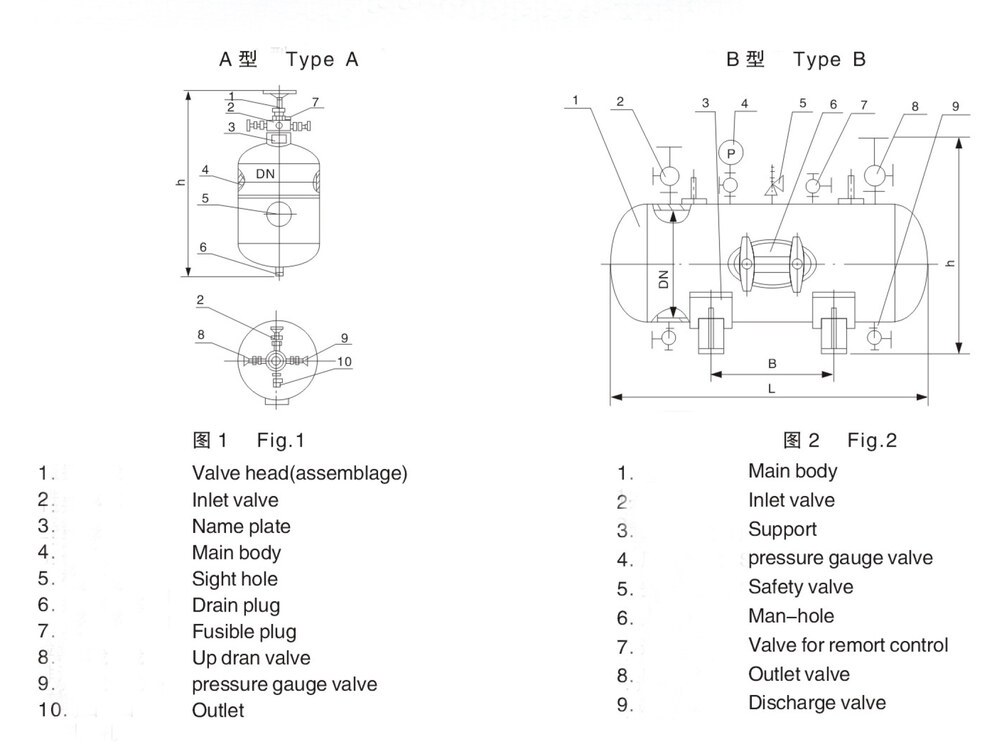

B style is made up of steel body, end, manhole for easy examination and repiar set in end, inlet/outlet valve, safety valve,

Pressure gauge and pressure gauge valve, drain valve and installation seat etc.

Main Specification:

Style Type Capacity(m3) W.P. Mpa Inner Dia mm Height mm Weight kg
B B0.63-1.0 0.63 1 700 1370 480
B0.80-1.0 0.8 700 1370 520
B1.00-1.0 1 800 1490 685
B0.63-3.0 0.63 3 700 1470 680
B0.80-3.0 0.8 700 1470 780
B1.00-3.0 1 800 1580 950
B1.60-3.0 1.6 900 1680 1180
B2.50-3.0 2.5 1100 1940 1925
B4.00-3.0 4 1200 2040 3400
B4.50-3.0 4.5 1200 2040 3750
B5.00-3.0 5 1200 2040 4100
B6.30-3.0 6.3 1400 2265 4230
B8.00-3.0 8 1500 2365 4930
B10.00-3.0 10 1600 2505 6785
B12.00-3.0 12 1700 2695 7500
B14.00-3.0 14 1800 2750 8770
B16.00-3.0 16 2000 3070 11000
