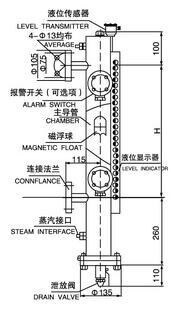

UHZ-512 Type Magnetic Float Type Level Gauge

Under low temperature,some medium is easy freeze and poor fluidity,the level gauge is mainly used to measure and control this kind of medium in the tank.

It is mainly use for heavy oil.

Indication accuracy: ±20mm

Nonimal length: 0.5 meter to 6 meter

Medium gravity: equal or greater than 0.5

Working temperature 1.0(1.6,2.5)MPa

Medium temperature: equal or less than 200 centigrade

Medium viscosity:equal or less than 0.02pa.S

Steam pressure:equal or less than 0.8MPa

Connection flange:GB2506-2005 DN20 PN16

Alarm switch: AC220V 1.0A retaining type(optional)

Output signal :DC24V 4~20mA (optional)

Matched valve:shut-off valve ,self-close valve,ball valve(optional)
