Weled Wooden Threaded Eye With Round Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Weled Wooden Threaded Eye With Round Ring:

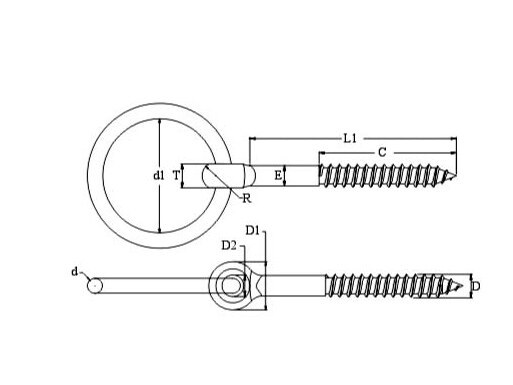

SIZE D1 D2 L1 C E T R d d1
8*3.5 18 8.4 0 40 7.6-8 9 5 7 50
4*1.8 8 4.2 45 30 3.6-4 5 3 4 25
5*2.2 10 5.2 50 35 4.6-5 6 3.5 5 30
5*2.2 10 5.2 60 40 4.6-5 6 3.5 5 30
6*2.6 14 6.3 40 30 5.6-6 7 4 6 30
6*2.6 14 6.3 50 35 5.6-6 7 4 6 30
6*2.6 14 6.3 55 40 5.6-6 7 4 6 30
6*2.6 14 6.3 60 40 5.6-6 7 4 6 30
8*3.5 18 8.4 60 40 7.6-8 9 5 8 50
8*3.5 18 8.4 75 50 7.6-8 9 5 8 50
8*3.5 18 8.4 80 55 7.6-8 9 5 8 50
8*3.5 18 8.4 100 65 7.6-8 9 5 8 50
10*4.5 20 10.2 75 50 9.6-10 11 6 10 60
10*4.5 20 10.2 80 55 9.6-10 11 6 10 60
10*4.5 20 10.2 85 60 9.6-10 11 6 10 60
10M.5 20 10.2 100 65 9.6-10 11 6 10 60
10*4.5 20 10.2 120 80 9.6-10 11 6 10 60
12*5.0 24 12.1 100 65 11.6-12 13 8 12 75
12*5.0 24 12.1 120 80 11.6-12 13 8 12 75
