Wire Rope Carpenter Stopper

Request a Quote Not what you need, please send your RFQs via Email.

Details

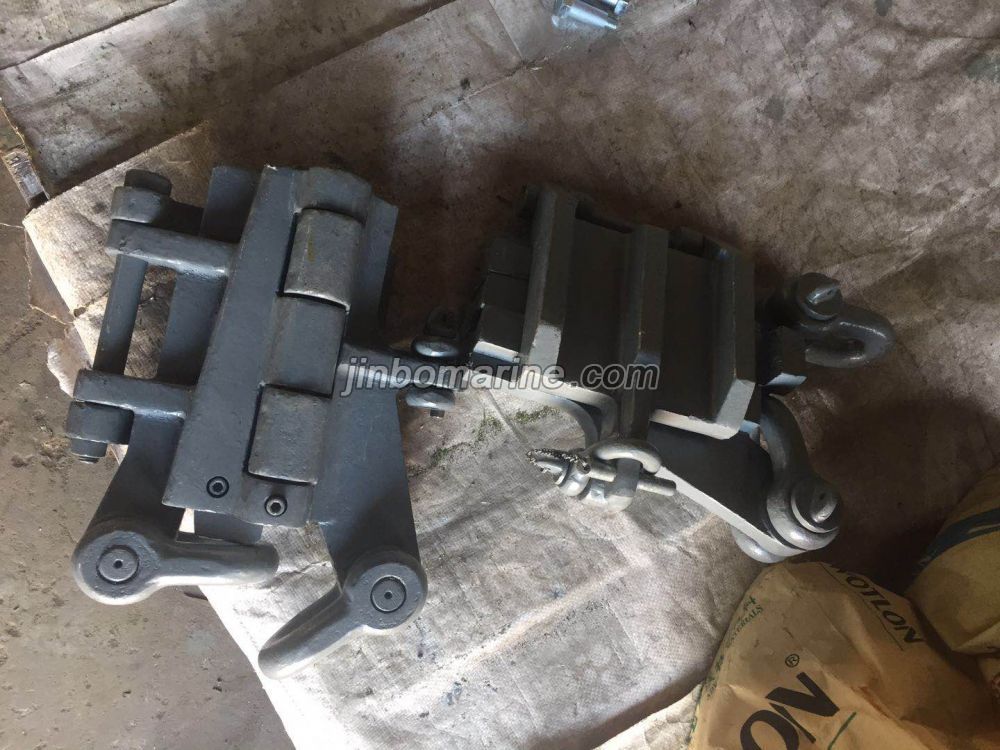

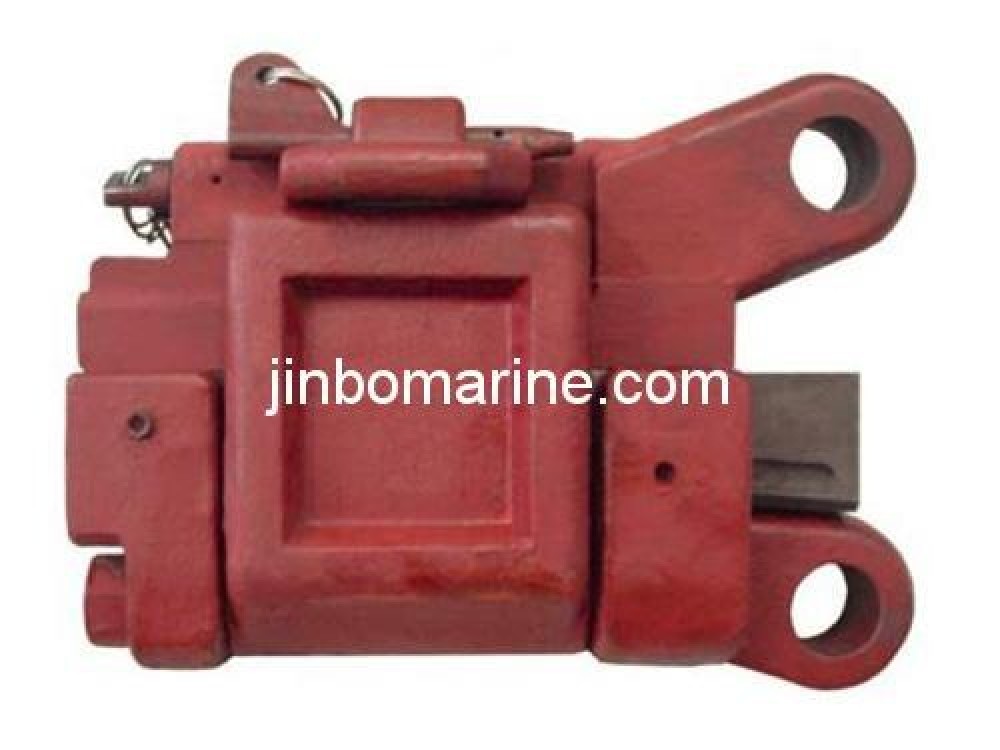

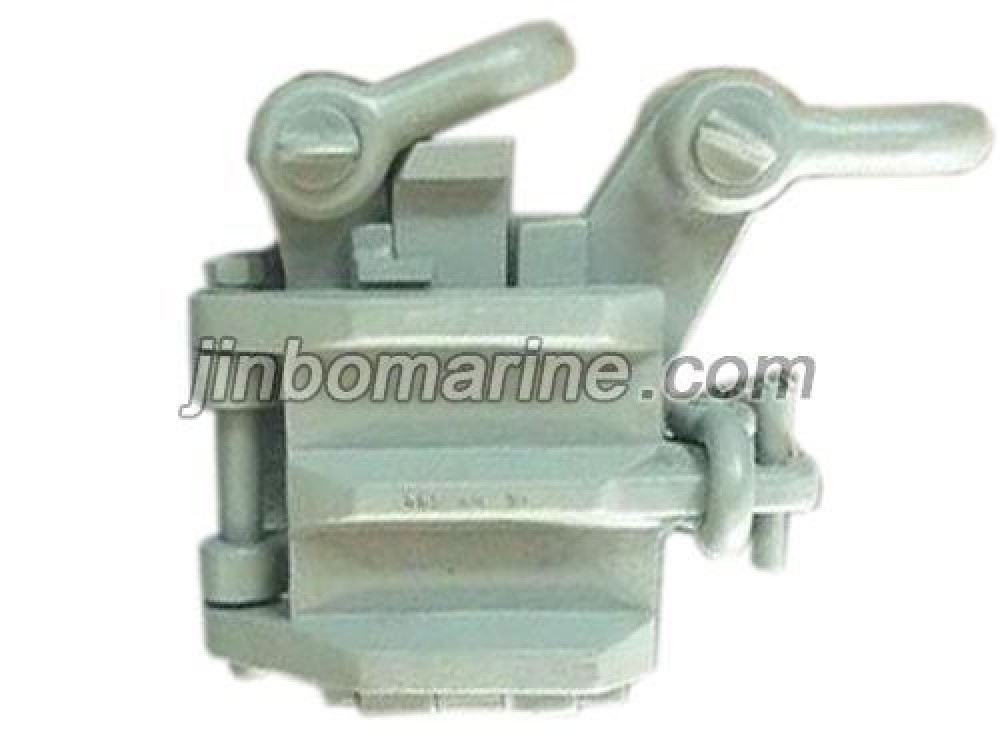

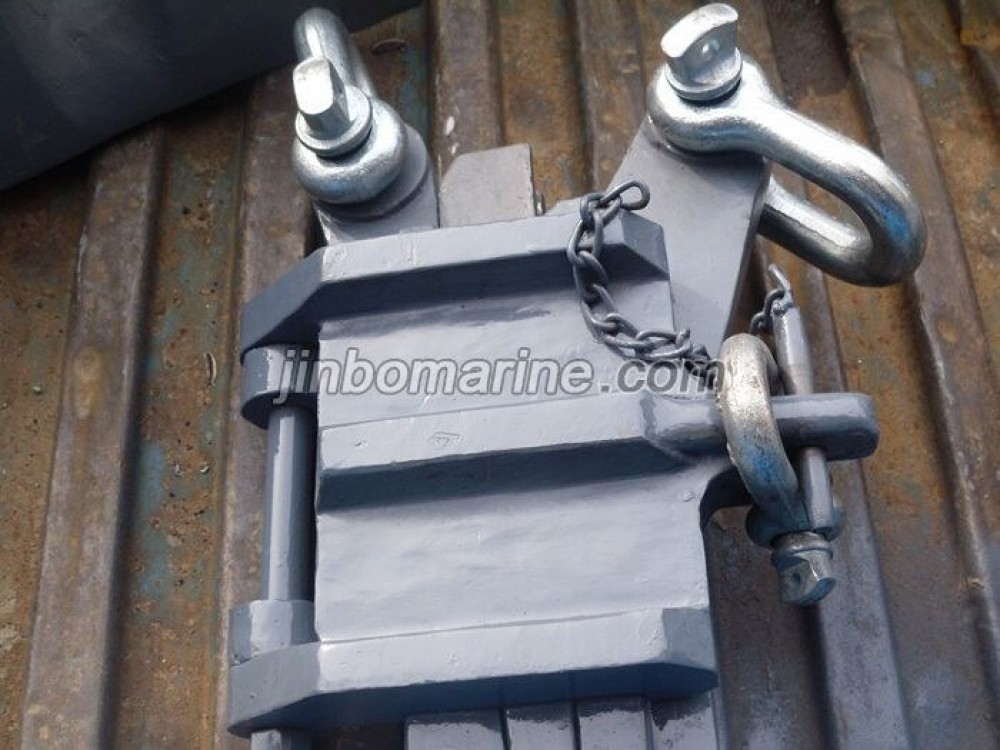

China Wire Rope Carpenter Stopper:

Carpenter Stoppers have a hinged body that has a fixed smooth groove on one side. It is movable wedge, grooved with lay of cable, on the facing side. The movable wedge enables the cable to be drawn tight. They are individually proof tested to twice the working load limit of XIP wire rope.

The cable can be released while under the full tension by releasing the latch on the hinged lid. The Lid is securely latched and locked with a pin while in use.

Shackle holes are provided for rigging a bridle to the stopper. Bridles are available with stoppers if desired.

Rugged, compact design cable grip for cable sizes from 5/16″ to 3″.

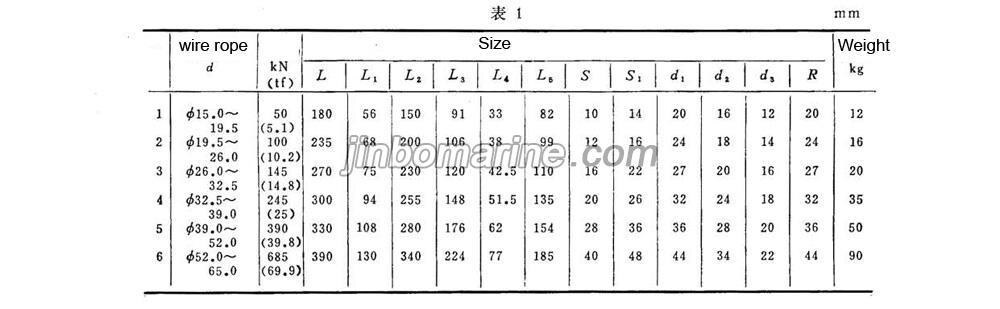

Specification:

Proof Load: 1.5xSWL

Breaking Load: 5xSWL

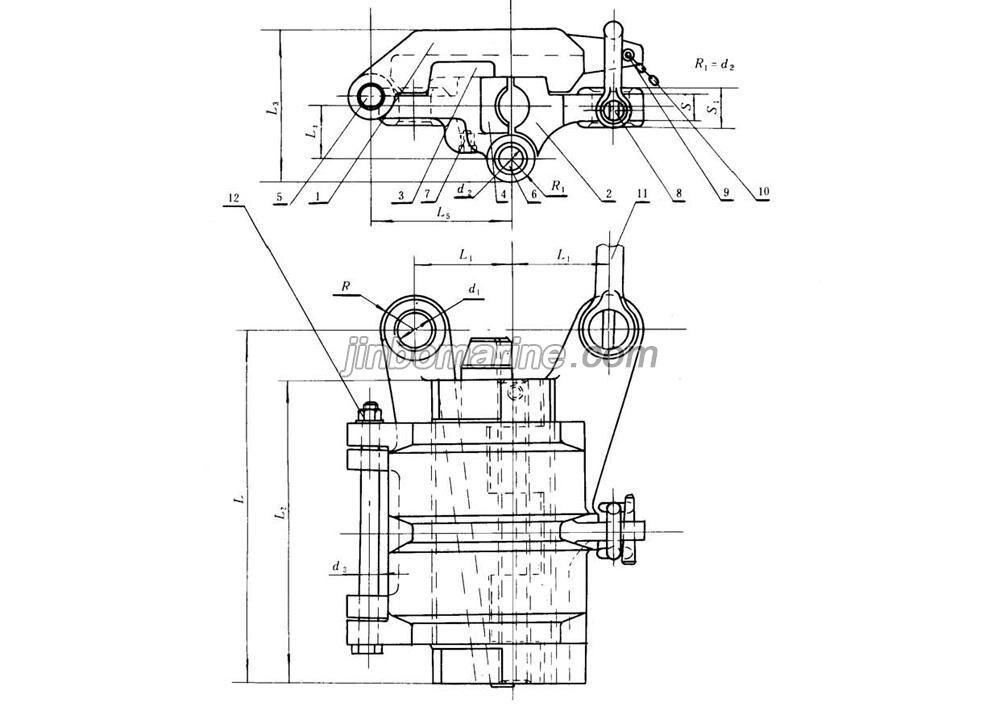

Carpenter Stopper Drawing
