WS MK3 Anchor
- Category:Drag Anchor
- Material:High Grade Steel Plate
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China WS MK3 Anchor:
WS MK3 Anchor is the improved version of drag Anchor, equipped with an enlarged crown and fluke area and a streamline shank for more efficient penetration, this anchor is used in drag and drilling activities.
This anchor approved by International class society.
We can delivery to everywhere around the world according to Incoterms 2010

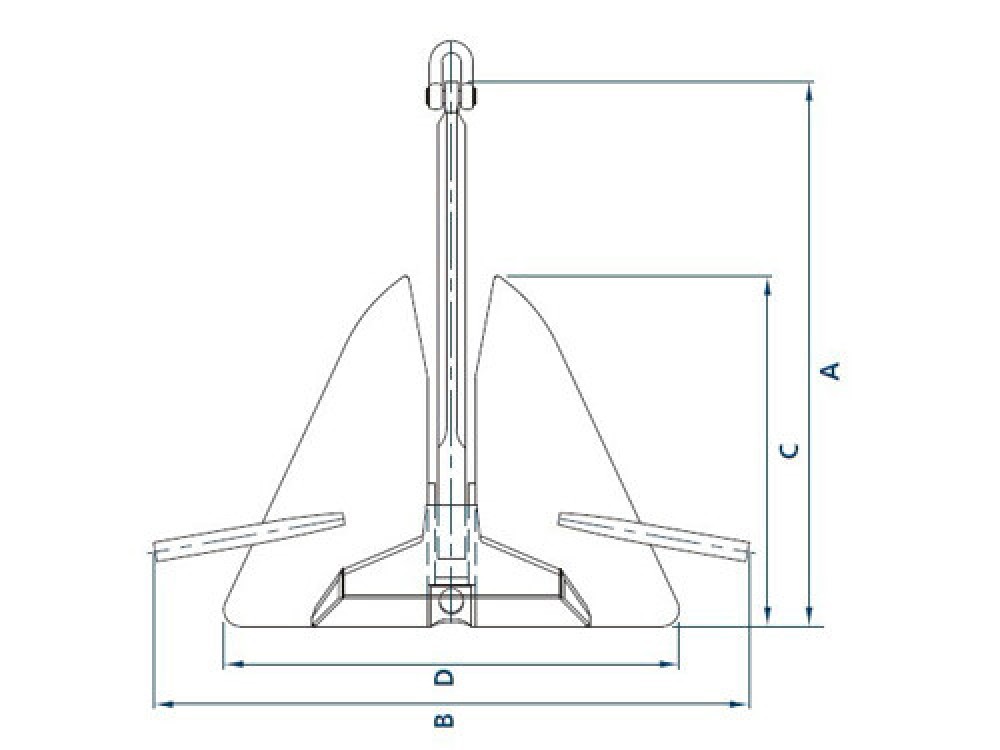

Main Dimension( mm in dimension, KGS in anchor weight)
| Weight | A | B | C | D | E | K | L | S |
| 1000 | 2429 | 2654 | 1559 | 2023 | 737 | 1010 | 412 | 60 |
| 1500 | 2774 | 3038 | 1785 | 2316 | 843 | 1156 | 471 | 65 |
| 3000 | 3493 | 3828 | 2249 | 2918 | 1063 | 1456 | 594 | 80 |
| 5000 | 4120 | 4538 | 2667 | 346 | 1260 | 1727 | 704 | 80 |
| 7000 | 4602 | 5077 | 2983 | 3871 | 1409 | 1932 | 788 | 90 |
| 9000 | 5012 | 5521 | 3244 | 4209 | 1533 | 2100 | 857 | 100 |
| 12000 | 5516 | 6076 | 3570 | 4632 | 1687 | 2312 | 943 | 110 |
| 20000 | 6372 | 6986 | 4100 | 5324 | 2048 | 2674 | 1083 | 160 |
| 30000 | 7289 | 7997 | 4694 | 6094 | 2345 | 3061 | 1240 | 180 |
Trasnportion Size, please contact us directly.
How to connect MK3 Anchor and Chain
