WSS Type Bi-metal Thermometer
- Category:Marine Temperature Instrument
- Certificate:CCS,GL,LR,BV,ABS,DNV,RINA,NK,KR AND EC CERTIFICATE ETC.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:

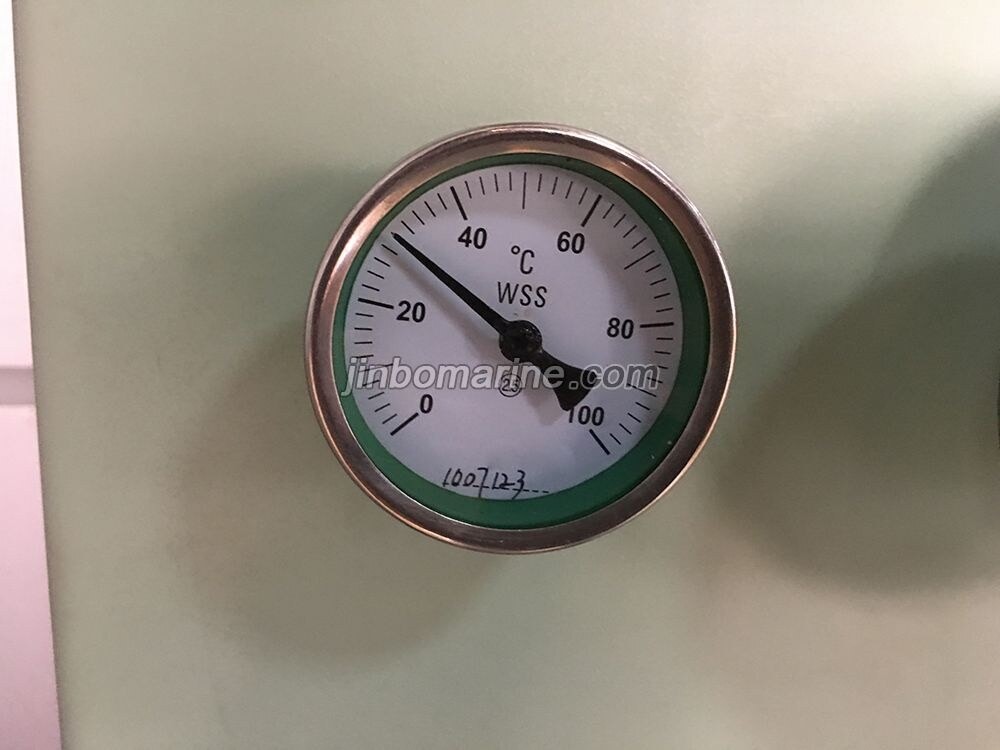

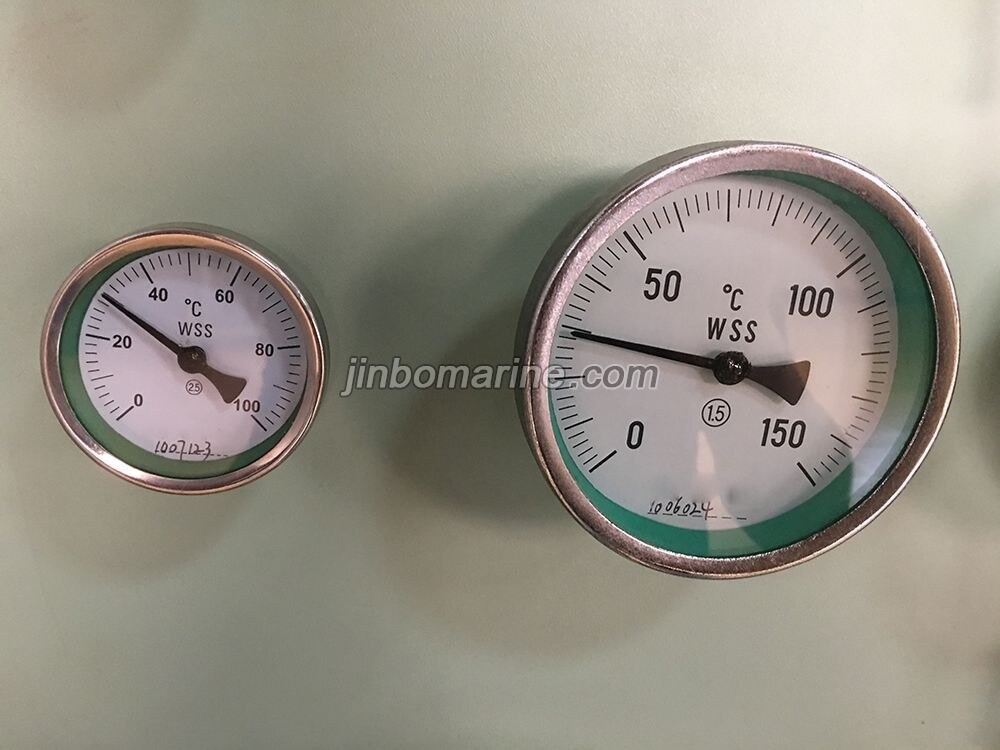

WSS Type Bi-metal Thermometer is local measuring instrument for middle and low temperature medium,it can be used to measure temperature of gas,liquid or steam in ship and other industrial equipment.
Main Technical Specification:
| Model |
Dial diameter (mm) |
Measure range (℃) |
Division scale (℃) |
Protection tube diameter (mm |
Insert length （mm |
Connection (M) |
| WSS-301 | 60 |
-40~80 0~50 0~100 0~150 0~200 0~300 0~500 |
2 1 2 2 5 5 10 |
6 10 |
75 100 150 200 250 300 |
M16x1.5 G 1/4" |
| WSS-311 | ||||||
| WSS-401 | 100 |
-40~80 0~50 0~100 0~150 0~500 |
2 1 2 2 10 |
8 12 |
75 100 150 200 250 300 400 500 750 1000 |
M27x2 G 3/4" |
| WSS-411 | ||||||
| WSS-501 | 150 |
0~200 0~300 0~400 0~500 |
5 5 10 10 |
10 12 |
||
| WSS-511 |
