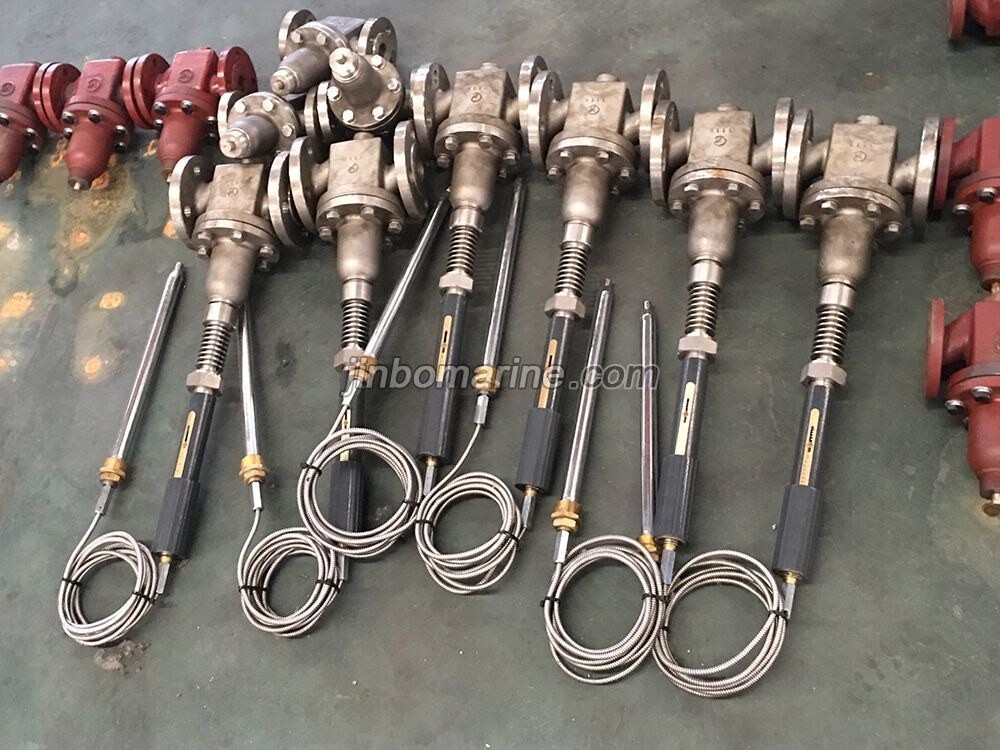

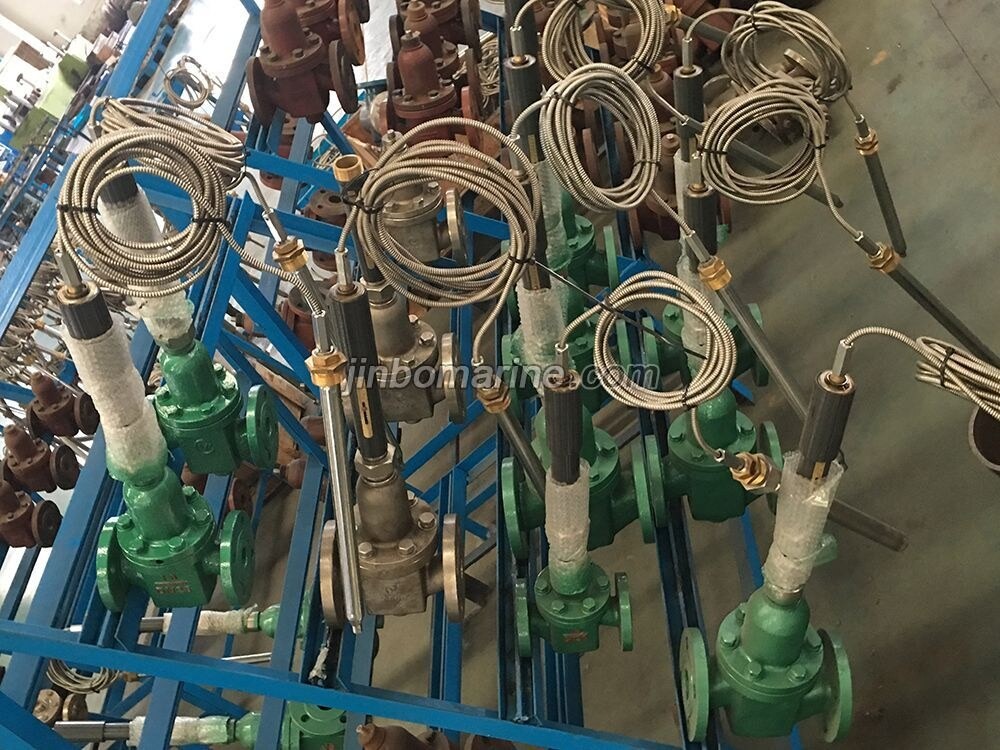

WTF Type Self-Powered Temperature Regulating Valve

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

It is a self operated temperature control device which was designed according to medium thermal expansion theory. Can adjust the temperature automatically,used in heat exchanger,fuel pre-heating,central heating and central air condistioner etc device.

Main Technical Specification:

Nonimal diameter: 15,20,25,32,40,50,65,80,100mm.

Nonminal pressure: 1.6Mpa

Temperature regulated range: 30~90 centigrade, 60~120 centigrade, 0~120 centigrade.

Applicable mdeidum, steam, hot oil (small or les than 180 centigrade), hot water.

Over temperature safe range:≤20 centigrade

Action sensitivity: ≤±2℃

Temperature bulb type: Cylinder pipe type, spiral pipe type.

Model Nominal diameter(mm) Rated flow of steam(kg/h) Rated flow of water(kg/h) Maximum allow differential pressure(Mpa) Leakage
D P S
WTF-15 15 120 2.75 1.5 ≤0.05%
WTF-20 20 200 5 0.66
WTF-25 25 320 7.5 0.47 1.5
WTF-32 32 520 12.5 0.19 1.2 2.4
WTF-40 40 800 20 0.08 0.82 2
WTF-50 50 1400 30 0.04 0.58 1.6
WTF-65 65 2000 50 0.5 0.84 ≤0.5%
WTF-80 80 3200 80 0.65
WTF-100 100 5000 125 0.5
