WTFK Type Temperature Regulating Valve Unit
- Category:Marine Temperature Instrument
- Certificate:CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
It consists of temperature regulator,regulating valve,filter,emergency shut-off valve,bypass stop valve,flange etc. It is used to control the temperature of heat exchanger,fuel pre-heating and central heating system.
Main Technical Specification:

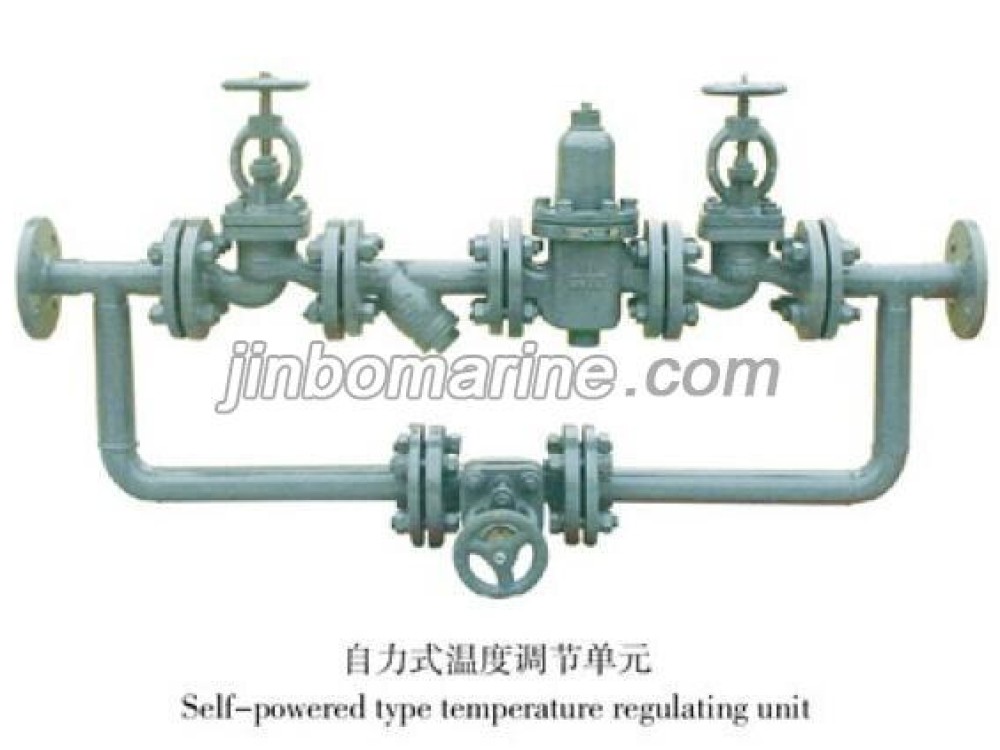

Self-powered type temperature regulating unit.
Nominal diameter:DN20, 25,32,40,50mm.
Nominal pressure:PN 1.6Mpa
Temperature regulated range: 0~120℃(optional)
Medium: steam, thermal oil, thermal water.
Over temperature safe range: ≤40℃
Response time:≤130S
Action sensitivity:≤2±℃

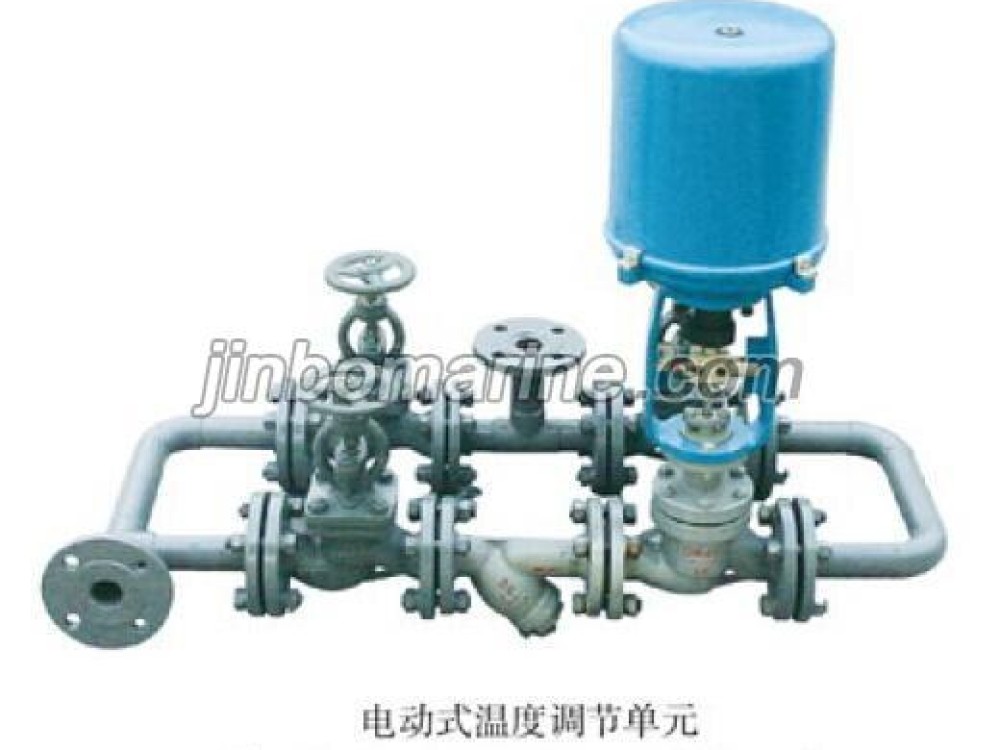

Electric type temperature regulating unit.
Nominal diameter:DN20, 25,32,40,50mm.
Nominal pressure:PN 1.6Mpa
Temperature regulated range: 0~120℃(optional)
Medium: steam, thermal water.
Power supply: AC220V 50HZ
Contorl signal: 1~5V, 4~20mA
Control speed:2.1mm/s
| Model | Nominal diameter | Medium |
Medium Steam,thermal water |
Maximum leakage(Kvs%) | ||
| Name of medium | Temperature of medium(℃) |
Flow coefficient Kvs(m3/h) |
Maximum differential pressure（Mpa) | |||
| WTFK-20 | 20 | Steam,thermal water(hot oil) | 170℃ | 5 | 0.6 | ≤0.05% |
| WTFK-25 | 25 | 8 | 0.47 | |||
| WTFK-32 | 32 | 12 | 1.2 | |||
| WTFK-40 | 40 | 20 | 0.82 | |||
| WTFK-50 | 50 | 32 | 0.58 | |||
