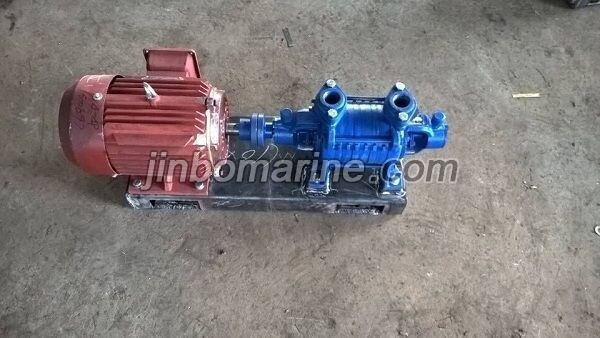

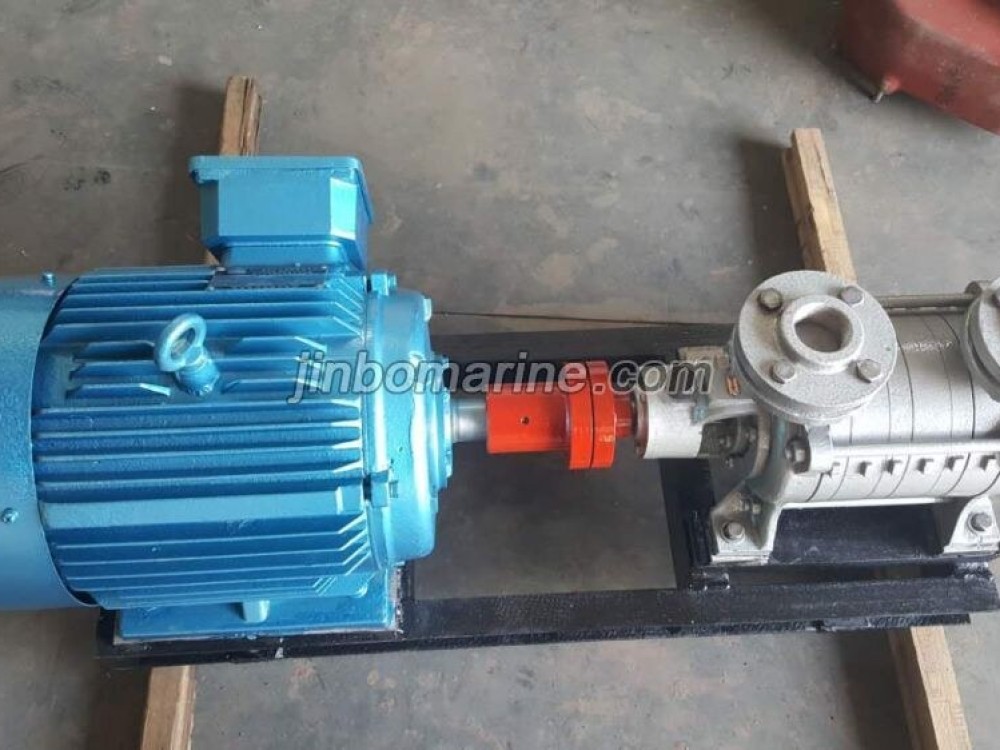

WZ Series Self-Priming Vortex Bilge Pump
- Category:Vortex Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS, ABS，BV, LR, Etc
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
WZ Series Self-Priming Vortex Pump
WZ Series Self-Priming Vortex Pump is suitable for transmitting the temperature between -20℃ to +80℃, the viscosity is not more than 5oE non-solid particles, volatile, water and fresh water gasification. For oil, chemicals, ships, printing and dyeing industry and villas, hotels, tall buildings and small boiler feed water using. This pump small size, light weight, self-priming ability, can be equipped with motor, gasoline engine, diesel powered.
Main Specification
| Type | Capacity | Head | Suction lift | Efficiency | Shaft power | Motor power | Impeller Dia. | Pump +base Weight | |
| (m3/h) | (l/s) | (m) | HS(m) | (%) | (kw) | (kw) | (mm) | (kg) | |
| 20WZ-14×2 | 0.792 | 0.2 | 38 | 8 | 14 | 0.59 | 0.75 | 100 | 10+10 |
| 1.44 | 0.4 | 28 | 7.5 | 23 | 0.48 | ||||
| 1.8 | 0.5 | 20 | 7 | 22 | 0.45 | ||||
| 20WZ-14×3 | 0.792 | 0.2 | 57 | 8 | 14 | 0.88 | 1.1 | 13+12 | |
| 1.44 | 0.4 | 42 | 7.5 | 23 | 0.72 | ||||
| 1.8 | 0.5 | 30 | 7 | 22 | 0.67 | ||||
| 20WZ-14×4 | 0.792 | 0.2 | 76 | 8 | 14 | 1.17 | 1.5 | 16+15 | |
| 1.44 | 0.4 | 56 | 7.5 | 23 | 0.96 | ||||
| 1.8 | 0.5 | 40 | 7 | 22 | 0.89 | ||||
| 25WZ-16×2 | 1.8 | 0.5 | 46 | 7.5 | 20 | 1.13 | 1.5 | 110 | 13+17 |
| 2.88 | 0.8 | 32 | 7 | 28 | 0.9 | ||||
| 3.6 | 1 | 22 | 6.5 | 27 | 0.8 | ||||
| 25WZ-16×3 | 1.8 | 0.5 | 69 | 7.5 | 20 | 1.69 | 2.2 | 17.6+20 | |
| 2.88 | 0.8 | 48 | 7 | 28 | 1.34 | ||||
| 3.6 | 1 | 33 | 6.5 | 27 | 1.2 | ||||
| 25WZ-16×4 | 1.8 | 0.5 | 92 | 7.5 | 20 | 2.25 | 3 | 110 | 22+23 |
| 2.88 | 0.8 | 64 | 7 | 28 | 1.79 | ||||
| 3.6 | 1 | 44 | 6.5 | 27 | 1.6 | ||||
| 32WZ-18×2 | 3.6 | 1 | 50 | 7 | 25 | 1.96 | 3 | 132 | 19+22 |
| 5.4 | 1.5 | 36 | 6.5 | 32 | 1.65 | ||||
| 6.48 | 1.8 | 24 | 6 | 29 | 1.46 | ||||
| 32WZ-18×3 | 3.6 | 1 | 75 | 7 | 25 | 2.94 | 4 | 22+25 | |
| 5.4 | 1.5 | 54 | 6.5 | 32 | 2.48 | ||||
| 6.48 | 1.8 | 36 | 6 | 29 | 2.19 | ||||
| 32WZ-18×4 | 3.6 | 1 | 100 | 7 | 25 | 3.92 | 5.5 | 25+28 | |
| 5.4 | 1.5 | 72 | 6.5 | 32 | 3.31 | ||||
| 6.48 | 1.8 | 48 | 6 | 29 | 2.92 | ||||
| 40WZ-28×2 | 6.12 | 1.7 | 84 | 6.5 | 25 | 5.6 | 7.5 | 148 | 38+25 |
| 9 | 2.5 | 56 | 6 | 33 | 4.16 | ||||
| 10.8 | 3 | 34 | 5.5 | 31 | 3.22 | ||||
| 40WZ-28×3 | 6.12 | 1.7 | 126 | 6.5 | 25 | 8.4 | 11 | 45+30 | |
| 9 | 2.5 | 84 | 6 | 33 | 6.24 | ||||
| 10.8 | 3 | 51 | 5.5 | 31 | 4.84 | ||||
| 40WZ-28×4 | 6.12 | 1.7 | 168 | 6.5 | 25 | 11.2 | 15 | 52+36 | |
| 9 | 2.5 | 112 | 6 | 33 | 8.32 | ||||
| 10.8 | 3 | 68 | 5.5 | 31 | 6.46 | ||||
| 50WZ-32×2 | 11.7 | 3.3 | 88 | 6 | 30 | 9.35 | 11 | 170 | 49+30 |
| 14.4 | 4 | 64 | 5.5 | 35 | 7.17 | ||||
| 18 | 5 | 40 | 5 | 34 | 5.75 | ||||
| 50WZ-32×3 | 11.7 | 3.3 | 132 | 6 | 30 | 14 | 18.5 | 190 | 60+35 |
| 14.4 | 4 | 96 | 5.5 | 35 | 10.75 | ||||
| 18 | 5 | 60 | 5 | 34 | 8.65 | ||||
| 65WZ-36×2 | 17.25 | 4.8 | 102 | 5.5 | 30 | 16 | 22 | ||
| 21.6 | 6 | 72 | 5 | 36 | 11.8 | ||||
| 27 | 7.5 | 42 | 4.5 | 35 | 8.8 | ||||
| 65WZ-36×3 | 17.25 | 4.8 | 153 | 5.5 | 30 | 24 | 30 | ||
| 21.6 | 6 | 108 | 5 | 36 | 17.6 | ||||
| 27 | 7.5 | 63 | 4.5 | 35 | 13.5 | ||||
| 20WZ1-14×2 | 0.95 | 0.3 | 54.72 | 8 | 14 | 1.01 | 1.5 | 100 | 10+10 |
| 1.73 | 0.5 | 40.32 | 7.5 | 23 | 0.83 | ||||
| 2.16 | 0.6 | 28.8 | 7 | 22 | 0.77 | ||||
| 20WZ1-14×3 | 0.95 | 0.3 | 82.08 | 8 | 14 | 1.52 | 2.2 | 13+12 | |
| 1.73 | 0.5 | 60.48 | 7.5 | 23 | 1.24 | ||||
| 2.16 | 0.6 | 43.2 | 7 | 22 | 1.15 | ||||
| 20WZ1-14×4 | 0.95 | 0.3 | 109.44 | 8 | 14 | 2.02 | 3 | 16+15 | |
| 1.73 | 0.5 | 80.64 | 7.5 | 23 | 1.65 | ||||
| 2.16 | 0.6 | 57.6 | 7 | 22 | 1.54 | ||||
| 25WZ1-16×2 | 2.16 | 0.6 | 66.24 | 7.5 | 20 | 1.95 | 3 | 110 | 13+17 |
| 3.46 | 1 | 46.08 | 7 | 28 | 1.56 | ||||
| 4.32 | 1.2 | 31.68 | 6.5 | 27 | 1.38 | ||||
| 25WZ1-16×3 | 2.16 | 0.6 | 99.36 | 7.5 | 20 | 2.92 | 4 | 17.6+20 | |
| 3.46 | 1 | 69.12 | 7 | 28 | 2.32 | ||||
| 4.32 | 1.2 | 47.52 | 6.5 | 27 | 2.07 | ||||
| 25WZ1-16×4 | 2.16 | 0.6 | 132.48 | 7.5 | 20 | 3.89 | 5.5 | 22+23 | |
| 3.46 | 1 | 92.16 | 7 | 28 | 3.09 | ||||
| 4.32 | 1.2 | 63.36 | 6.5 | 27 | 2.76 | ||||
| 32WZ1-18×2 | 4.32 | 1.2 | 72 | 7 | 25 | 3.39 | 5.5 | 132 | 10+10 |
| 6.48 | 1.8 | 51.84 | 6.5 | 32 | 2.85 | ||||
| 7.78 | 2.2 | 34.56 | 6 | 29 | 2.52 | ||||
| 32WZ1-18×3 | 4.32 | 1.2 | 108 | 7 | 25 | 5.08 | 7.5 | 132 | 13+12 |
| 6.48 | 1.8 | 77.76 | 6.5 | 32 | 4.29 | ||||
| 7.78 | 2.2 | 51.84 | 6 | 29 | 3.78 | ||||
| 32WZ1-18×4 | 4.32 | 1.2 | 144 | 7 | 25 | 6.77 | 11 | 25+28 | |
| 6.48 | 1.8 | 103.68 | 6.5 | 32 | 5.72 | ||||
| 7.78 | 2.2 | 69.12 | 6 | 29 | 5.05 | ||||
| 40WZ1-28×2 | 7.34 | 2 | 120.96 | 6.5 | 25 | 9.68 | 11 | 148 | 38+25 |
| 10.8 | 3 | 80.64 | 6 | 33 | 7.19 | ||||
| 12.96 | 3.6 | 48.96 | 5.5 | 31 | 5.56 | ||||
| 40WZ1-28×3 | 7.34 | 2 | 181.44 | 6.5 | 25 | 14.52 | 18.5 | 45+30 | |
| 10.8 | 3 | 120.96 | 6 | 33 | 10.78 | ||||
| 12.96 | 3.6 | 73.44 | 5.5 | 31 | 8.36 | ||||
| 40WZ1-28×4 | 7.34 | 2 | 241.92 | 6.5 | 25 | 19.35 | 22 | 148 | 52+36 |
| 10.8 | 3 | 161.28 | 6 | 33 | 14.38 | ||||
| 12.96 | 3.6 | 97.92 | 5.5 | 31 | 11.16 | ||||
| 50WZ1-32×2 | 14.04 | 3.9 | 126.72 | 6 | 30 | 16.16 | 18.5 | 170 | 49+30 |
| 17.28 | 4.8 | 92.16 | 5.5 | 35 | 12.39 | ||||
| 21.6 | 6 | 57.6 | 5 | 34 | 9.94 | ||||
| 50WZ1-32×3 | 14.04 | 3.9 | 190.08 | 6 | 30 | 24.19 | 30 | 60+35 | |
| 17.28 | 4.8 | 138.24 | 5.5 | 35 | 18.58 | ||||
| 21.6 | 6 | 86.4 | 5 | 34 | 14.95 | ||||
| 65WZ1-36×2 | 20.7 | 5.8 | 146.88 | 5.5 | 30 | 27.65 | 30 | 190 | |
| 25.92 | 7.2 | 103.68 | 5 | 36 | 20.39 | ||||
| 32.4 | 9 | 60.48 | 4.5 | 35 | 15.2 | ||||
| 65WZ1-36×3 | 20.7 | 5.8 | 220.32 | 5.5 | 30 | 41.47 | 45 | ||
| 25.92 | 7.2 | 155.52 | 5 | 36 | 30.41 | ||||
| 32.4 | 9 | 90.72 | 4.5 | 35 | 23.33 | ||||
