YSZK-01G-C-B Explosion Proof Type Pressure Transmitter

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

YSZK-01G-C-B Explosion Proof Type Pressure Transmitter consists of diffuse silieon pressure inductor and signal transform circuit,which have the characteristics of high measuring precision,dependable stability,small volume,convenient installation. Used for measure pressure of kinds of medium of liquids,gas in ship and other industrial equipments.

Main Technical Specification:

Power voltage:DC24V

Measuring accuracy:±0.5% FS

Working temperature: -20~60 centigrade

Output signal: DC 4~20mA (two wires HART)

Protection:IP66

Over load:2.5 times of full range

Press connection size:M20x1.5, G 1/4" ,G1/2"

Explosion proof:Ex ia II CT4~T6 Ex d II CT4~T6

Description:

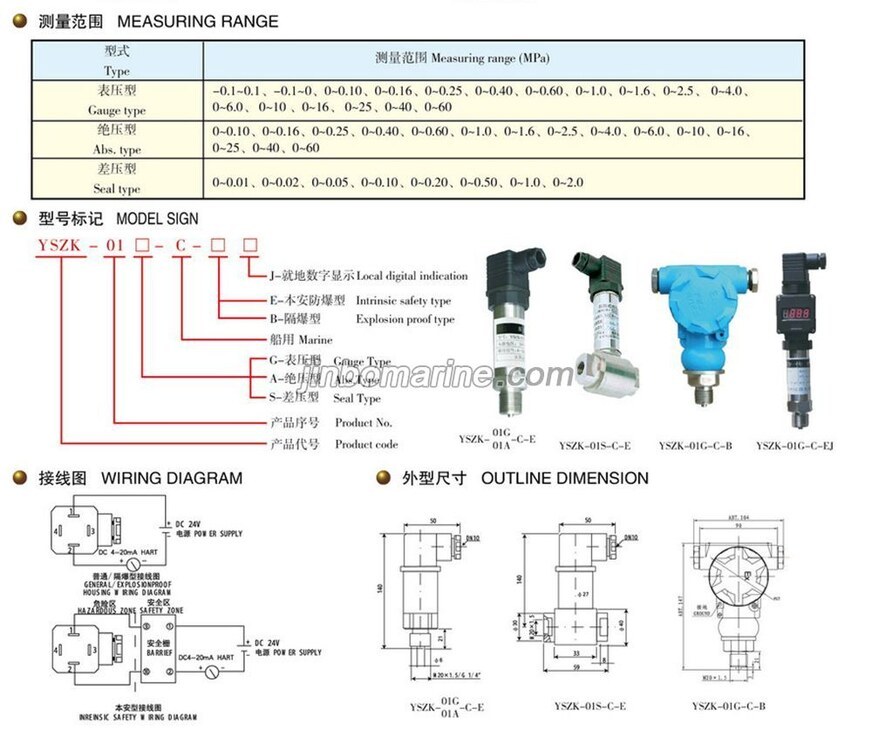

Type Measuring range(Mpa)
Gauge type -0.1~1,-0.1~0,0~0.1,0~0.16,0~0.25,0~0.40,0~0.6,0~1,0~1.6,0~2.5,o~4,0~6,0~10,0~16,0~25,0~40,0~60
Absolute pressure type 0~0.1,0~0.16,0~0.25,0~0.40,0~0.6,0~1,0~1.6,0~2.5,o~4,0~6,0~10,0~16,0~25,0~40,0~60
Differential pressure type 0~0.01,0~0.02,0~0.05,0~0.1,0~0.2,0~0.5,0~1,0~2.
